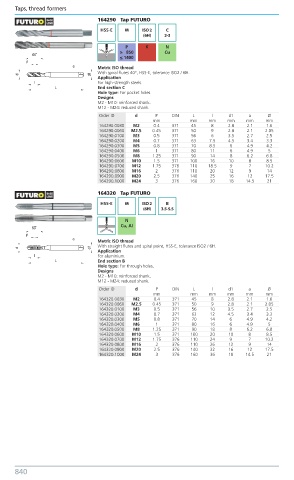

Page 849 - Benma | Blue book 5.0

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 64290 Tap FUTURO

HSS-E M ISO 2 C
(6H) 2-3
P K N
≥ 850 Cu
≤ 1400
Metric ISO thread
With spiral flutes 40°, HSS-E, tolerance ISO2 / 6H.
Application
For high-strength steels.
End section C
Hole type: For pocket holes.
Designs
M2 - M10: reinforced shank.
M12 - M24: reduced shank.
Order ID d P DIN L l d1 a Ø
mm mm mm mm mm mm
164290.0030 M2 0.4 371 45 8 2.8 2.1 1.6
164290.0060 M2.5 0.45 371 50 9 2.8 2.1 2.05
164290.0100 M3 0.5 371 56 6 3.5 2.7 2.5
164290.0200 M4 0.7 371 63 7.5 4.5 3.4 3.3
164290.0300 M5 0.8 371 70 8.5 6 4.9 4.2
164290.0400 M6 1 371 80 11 6 4.9 5
164290.0500 M8 1.25 371 90 14 8 6.2 6.8
164290.0600 M10 1.5 371 100 16 10 8 8.5
164290.0700 M12 1.75 376 110 18.5 9 7 10.2
164290.0800 M16 2 376 110 20 12 9 14
164290.0900 M20 2.5 376 140 25 16 12 17.5
164290.1000 M24 3 376 160 30 18 14.5 21
1 64320 Tap FUTURO
HSS-E M ISO 2 B
(6H) 3.5-5.5

N
Cu, AI

Metric ISO thread
With straight flutes and spiral point, HSS-E, tolerance ISO2 / 6H.
Application
For aluminium.
End section B
Hole type: For through holes.
Designs
M2 - M10: reinforced shank.
M12 - M24: reduced shank.
Order ID d P DIN L l d1 a Ø
mm mm mm mm mm mm
164320.0030 M2 0.4 371 45 8 2.8 2.1 1.6
164320.0060 M2.5 0.45 371 50 9 2.8 2.1 2.05
164320.0100 M3 0.5 371 56 10 3.5 2.7 2.5
164320.0200 M4 0.7 371 63 12 4.5 3.4 3.3
164320.0300 M5 0.8 371 70 14 6 4.9 4.2
164320.0400 M6 1 371 80 16 6 4.9 5
164320.0500 M8 1.25 371 90 18 8 6.2 6.8
164320.0600 M10 1.5 371 100 20 10 8 8.5
164320.0700 M12 1.75 376 110 24 9 7 10.2
164320.0800 M16 2 376 110 26 12 9 14
164320.0900 M20 2.5 376 140 32 16 12 17.5
164320.1000 M24 3 376 160 36 18 14.5 21
