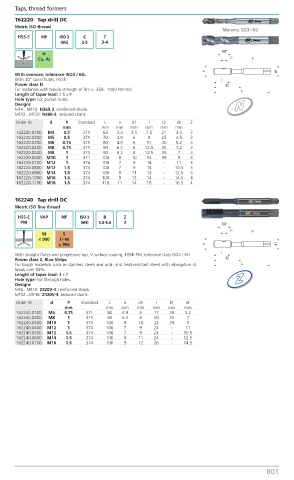

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
162220 Tap drill DC
Metric ISO thread
Tolerance ISO3 / 6G
HSS-E MF ISO 3 C Z
(6G) 2-3 3-4
N
Cu, AI

With oversize, tolerance ISO3 / 6G.
With 40° spiral flutes, HSSE.
Power class N
For materials with tensile strength of Rm > 350...1000 N/mm2.
Length of taper lead: 2.5 x P.
Hole type: For pocket holes.
Designs N
MF4...MF10: N360-3, reinforced shank.
MF12...MF20: N460-3, reduced shank.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
162220.0100 M4 0.5 371 63 3.4 4.5 7.5 21 3.5 3
162220.0200 M5 0.5 371 70 4.9 6 9 25 4.5 3
162220.0300 M6 0.75 371 80 4.9 6 11 30 5.2 3
162220.0400 M8 0.75 371 90 6.2 8 12.5 35 7.2 3
162220.0500 M8 1 371 90 6.2 8 12.5 35 7 3
162220.0600 M10 1 371 100 8 10 14 39 9 3
162220.0700 M12 1 374 100 7 9 14 - 11 3
162220.0800 M12 1.5 374 100 7 9 14 - 10.5 3
162220.0900 M14 1.5 374 100 9 11 14 - 12.5 3
162220.1000 M16 1.5 374 100 9 12 14 - 14.5 4
162220.1100 M18 1.5 374 110 11 14 18 - 16.5 4

162240 Tap drill DC
Metric ISO fine thread
HSS-E VAP MF ISO 2 B Z
PM (6H) 3.5-5.5 3
M S
≤ 900 Ti-Ni
≤ 900
With straight flutes and progressive tap, V surface coating, HSSE-PM, tolerance class ISO2 / 6H.
Power class Z, Blue Stripe
For tough materials such as stainless steels and acid- and heat-resistant steels with elongation at
break over 30%.
Length of taper lead: 4 x P.
Hole type: For through holes. Z
Designs
MF6...MF10: Z320V-4, reinforced shank.
MF12...MF16: Z420V-4, reduced shank.
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
162240.0100 M6 0.75 371 80 4.9 6 17 30 5.2
162240.0200 M8 1 371 90 6.2 8 20 35 7
162240.0300 M10 1 371 100 8 10 22 39 9
162240.0400 M12 1 374 100 7 9 24 - 11
162240.0500 M12 1.5 374 100 7 9 24 - 10.5
162240.0600 M14 1.5 374 100 9 11 24 - 12.5
162240.0700 M16 1.5 374 100 9 12 26 - 14.5

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 801
