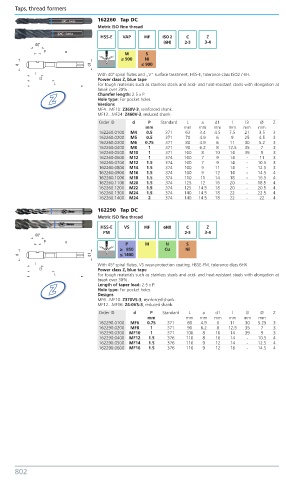

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 62260 Tap DC
Metric ISO fine thread
HSS-E VAP MF ISO 2 C Z
(6H) 2-3 3-4
M S
≤ 900 Ni
≤ 900
With 40° spiral flutes and „V“ surface treatment, HSS-E, tolerance class ISO2 / 6H.
Power class Z, blue tape
For tough materials such as stainless steels and acid- and heat-resistant steels with elongation at
break over 30%.
Z Chamfer length: 2.5 x P.
Hole type: For pocket holes.
Versions
MF4...MF10: Z360V-3, reinforced shank.
MF12...MF24: Z460V-3, reduced shank.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
162260.0100 M4 0.5 371 63 3.4 4.5 7.5 21 3.5 3
162260.0200 M5 0.5 371 70 4.9 6 9 25 4.5 3
162260.0300 M6 0.75 371 80 4.9 6 11 30 5.2 3
162260.0400 M8 1 371 90 6.2 8 12.5 35 7 3
162260.0500 M10 1 371 100 8 10 14 39 9 3
162260.0600 M12 1 374 100 7 9 14 - 11 3
162260.0700 M12 1.5 374 100 7 9 14 - 10.5 3
162260.0800 M14 1.5 374 100 9 11 14 - 12.5 3
162260.0900 M16 1.5 374 100 9 12 14 - 14.5 4
162260.1000 M18 1.5 374 110 11 14 18 - 16.5 4
162260.1100 M20 1.5 374 125 12 16 20 - 18.5 4
162260.1200 M22 1.5 374 125 14.5 18 20 - 20.5 4
162260.1300 M24 1.5 374 140 14.5 18 22 - 22.5 4
162260.1400 M24 2 374 140 14.5 18 22 - 22 4

1 62290 Tap DC
Metric ISO fine thread
HSS-E VS MF 6HX C Z
PM 2-3 3-4
P M N S
≥ 850 Cu Ni
≤ 1400
With 45° spiral flutes, VS wear-protection coating, HSSE-PM, tolerance class 6HX.
Power class Z, blue tape
For tough materials such as stainless steels and acid- and heat-resistant steels with elongation at
break over 30%.
Z Length of taper lead: 2.5 x P.
Hole type: For pocket holes.
Designs
MF6...MF10: Z370VS-3, reinforced shank.
MF12...MF16: Z4-0VS-3, reduced shank.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
162290.0100 MF6 0.75 371 80 4.9 6 11 30 5.25 3
162290.0200 MF8 1 371 90 6.2 8 12.5 35 7 3
162290.0300 MF10 1 371 100 8 10 14 39 9 3
162290.0400 MF12 1.5 376 110 8 10 14 - 10.5 4
162290.0500 MF14 1.5 376 110 9 12 14 - 12.5 4
162290.0600 MF16 1.5 376 110 9 12 18 - 14.5 4
