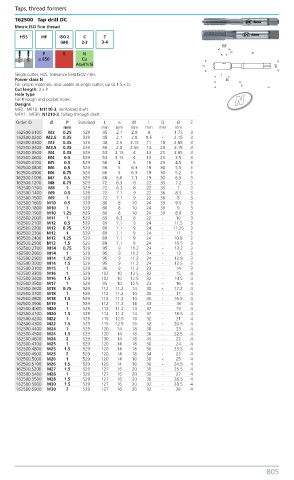

Page 814 - Benma | Blue book 5.0

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 62500 Tap drill DC
Metric ISO fine thread
HSS MF ISO 2 C Z
(6H) 2-3 3-4
P K N
≤ 850 Cu
AI≥4%Si
Single cutter, HSS, tolerance field ISO2 / 6H.
Power class N
For simple materials, also usable as single cutter, up to 1.5 x D.
Cut length: 2 x P.
Hole type
For through and pocket holes. N
Designs
MF2...MF10: N1110-3, reinforced shaft.
MF11...MF30: N1210-3, falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
162500.0100 M2 0.25 529 45 2.1 2.8 8 - 1.75 3
162500.0200 M2.5 0.35 529 45 2.1 2.8 9.5 - 2.15 3
162500.0300 M3 0.35 529 48 2.5 3.15 11 18 2.65 3
162500.0400 M3.5 0.35 529 50 2.8 3.55 13 20 3.15 3
162500.0500 M4 0.35 529 53 3.15 4 13 21 3.65 3
162500.0600 M4 0.5 529 53 3.15 4 13 21 3.5 3
162500.0700 M5 0.5 529 58 4 5 16 25 4.5 3
162500.0800 M6 0.5 529 66 5 6.3 19 30 5.5 3
162500.0900 M6 0.75 529 66 5 6.3 19 30 5.2 3
162500.1000 M7 0.5 529 66 5.6 7.1 19 30 6.5 3
162500.1200 M8 0.75 529 72 6.3 8 22 35 7.2 3
162500.1300 M8 1 529 72 6.3 8 22 35 7 3
162500.1400 M9 0.5 529 72 7.1 9 22 36 8.5 3
162500.1500 M9 1 529 72 7.1 9 22 36 8 3
162500.1600 M10 0.5 529 80 8 10 24 39 9.5 3
162500.1800 M10 1 529 80 8 10 24 39 9 3
162500.1900 M10 1.25 529 80 8 10 24 39 8.8 3
162500.2000 M11 1 529 85 6.3 8 22 - 10 3
162500.2100 M12 0.5 529 89 7.1 9 24 - 11.5 3
162500.2200 M12 0.75 529 89 7.1 9 24 - 11.25 3
162500.2300 M12 1 529 89 7.1 9 24 - 11 3
162500.2400 M12 1.25 529 89 7.1 9 24 - 10.8 3
162500.2500 M12 1.5 529 89 7.1 9 24 - 10.5 3
162500.2700 M14 0.75 529 95 9 11.2 24 - 13.2 3
162500.2800 M14 1 529 95 9 11.2 24 - 13 3
162500.2900 M14 1.25 529 95 9 11.2 24 - 12.8 3
162500.3000 M14 1.5 529 95 9 11.2 24 - 12.5 3
162500.3100 M15 1 529 90 9 11.2 23 - 14 3
162500.3300 M16 1 529 102 10 12.5 32 - 15 4
162500.3400 M16 1.5 529 102 10 12.5 32 - 14.5 4
162500.3500 M17 1 529 95 10 12.5 23 - 16 4
162500.3600 M18 0.75 529 112 11.2 14 30 - 17.2 4
162500.3700 M18 1 529 112 11.2 14 30 - 17 4
162500.3800 M18 1.5 529 112 11.2 14 30 - 16.5 4
162500.3900 M19 1 529 112 11.2 14 33 - 18 4
162500.4000 M20 1 529 112 11.2 14 37 - 19 4
162500.4100 M20 1.5 529 112 11.2 14 37 - 18.5 4
162500.4200 M22 1 529 115 12.5 16 32 - 21 4
162500.4300 M22 1.5 529 115 12.5 16 32 - 20.5 4
162500.4400 M24 1 529 120 14 18 30 - 23 4
162500.4500 M24 1.5 529 120 14 18 30 - 22.5 4
162500.4600 M24 2 529 130 14 18 45 - 22 4
162500.4700 M25 1 529 120 14 18 30 - 24 4
162500.4800 M25 1.5 529 120 14 18 30 - 23.5 4
162500.4900 M25 2 529 120 14 18 34 - 23 4
162500.5000 M26 1 529 120 14 18 30 - 25 4
162500.5100 M26 1.5 529 120 14 18 30 - 24.5 4
162500.5200 M27 1.5 529 127 16 20 30 - 25.5 4
162500.5400 M28 1 529 127 16 20 30 - 27 4
162500.5500 M28 1.5 529 127 16 20 30 - 26.5 4
162500.5800 M30 1.5 529 127 16 20 32 - 28.5 4
162500.5900 M30 2 529 127 16 20 32 - 28 4

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 805
