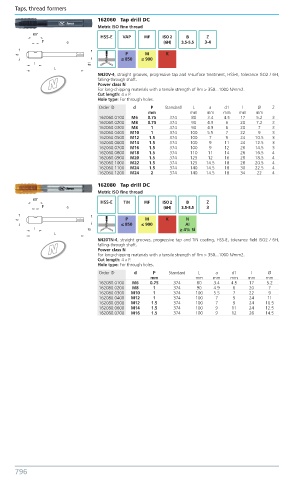

Page 805 - Benma | Blue book 5.0

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
162060 Tap drill DC
Metric ISO fine thread
HSS-E VAP MF ISO 2 B Z
(6H) 3.5-5.5 3-4
P M K
≤ 850 ≤ 900

N420V-4, straight grooves, progressive tap and V-surface treatment, HSS-E, tolerance ISO2 / 6H,
N falling-through shaft.
Power class N
For long-chipping materials with a tensile strength of Rm > 350...1000 N/mm2.
Cut length: 4 x P.
Hole type: For through holes.
Order ID d P Standard L a d1 l Ø Z
mm mm mm mm mm mm
162060.0100 M6 0.75 374 80 3.4 4.5 17 5.2 3
162060.0200 M8 0.75 374 90 4.9 6 20 7.2 3
162060.0300 M8 1 374 90 4.9 6 20 7 3
162060.0400 M10 1 374 100 5.5 7 22 9 3
162060.0500 M12 1.5 374 100 7 9 24 10.5 3
162060.0600 M14 1.5 374 100 9 11 24 12.5 3
162060.0700 M16 1.5 374 100 9 12 26 14.5 3
162060.0800 M18 1.5 374 110 11 14 26 16.5 4
162060.0900 M20 1.5 374 125 12 16 28 18.5 4
162060.1000 M22 1.5 374 125 14.5 18 28 20.5 4
162060.1100 M24 1.5 374 140 14.5 18 30 22.5 4
162060.1200 M24 2 374 140 14.5 18 34 22 4
162080 Tap drill DC
Metric ISO fine thread
HSS-E TiN MF ISO 2 B Z
(6H) 3.5-5.5 3

P M K N
≤ 850 ≤ 900 AI
≥ 4% Si
N420TN-4, straight grooves, progressive tap and TiN coating, HSS-E, tolerance field ISO2 / 6H,
N falling-through shaft.
Power class N
For long-chipping materials with a tensile strength of Rm > 350...1000 N/mm2.
Cut length: 4 x P.
Hole type: For through holes.
Order ID d P Standard L a d1 l Ø
mm mm mm mm mm mm
162080.0100 M6 0.75 374 80 3.4 4.5 17 5.2
162080.0200 M8 1 374 90 4.9 6 20 7
162080.0300 M10 1 374 100 5.5 7 22 9
162080.0400 M12 1 374 100 7 9 24 11
162080.0500 M12 1.5 374 100 7 9 24 10.5
162080.0600 M14 1.5 374 100 9 11 24 12.5
162080.0700 M16 1.5 374 100 9 12 26 14.5
