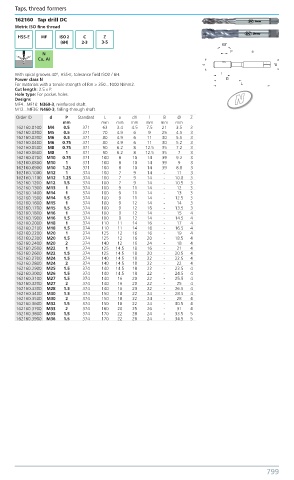

Page 808 - Benma | Blue book 5.0

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
162160 Tap drill DC
Metric ISO fine thread
HSS-E MF ISO 2 C Z
(6H) 2-3 3-5
N
Cu, AI

With spiral grooves 40°, HSS-E, tolerance field ISO2 / 6H.
Power class N
For materials with a tensile strength of Rm > 350...1000 N/mm2.
Cut length: 2.5 x P.
Hole type: For pocket holes.
Designs N
MF4...MF10: N360-3, reinforced shaft.
M12...MF36: N460-3, falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
162160.0100 M4 0.5 371 63 3.4 4.5 7.5 21 3.5 3
162160.0200 M5 0.5 371 70 4.9 6 9 25 4.5 3
162160.0300 M6 0.5 371 80 4.9 6 11 30 5.5 3
162160.0400 M6 0.75 371 80 4.9 6 11 30 5.2 3
162160.0500 M8 0.75 371 90 6.2 8 12.5 35 7.2 3
162160.0600 M8 1 371 90 6.2 8 12.5 35 7 3
162160.0700 M10 0.75 371 100 8 10 14 39 9.2 3
162160.0800 M10 1 371 100 8 10 14 39 9 3
162160.0900 M10 1.25 371 100 8 10 14 39 8.8 3
162160.1000 M12 1 374 100 7 9 14 - 11 3
162160.1100 M12 1.25 374 100 7 9 14 - 10.8 3
162160.1200 M12 1.5 374 100 7 9 14 - 10.5 3
162160.1300 M13 1 374 100 9 11 14 - 12 3
162160.1400 M14 1 374 100 9 11 14 - 13 3
162160.1500 M14 1.5 374 100 9 11 14 - 12.5 3
162160.1600 M15 1 374 100 9 12 14 - 14 3
162160.1700 M15 1.5 374 100 9 12 18 - 13.5 3
162160.1800 M16 1 374 100 9 12 14 - 15 4
162160.1900 M16 1.5 374 100 9 12 14 - 14.5 4
162160.2000 M18 1 374 110 11 14 16 - 17 4
162160.2100 M18 1.5 374 110 11 14 18 - 16.5 4
162160.2200 M20 1 374 125 12 16 16 - 19 4
162160.2300 M20 1.5 374 125 12 16 20 - 18.5 4
162160.2400 M20 2 374 140 12 16 24 - 18 4
162160.2500 M22 1 374 125 14.5 18 16 - 21 4
162160.2600 M22 1.5 374 125 14.5 18 20 - 20.5 4
162160.2700 M24 1.5 374 140 14.5 18 22 - 22.5 4
162160.2800 M24 2 374 140 14.5 18 22 - 22 4
162160.2900 M25 1.5 374 140 14.5 18 22 - 23.5 4
162160.3000 M26 1.5 374 140 14.5 18 22 - 24.5 4
162160.3100 M27 1.5 374 140 16 20 22 - 25.5 4
162160.3200 M27 2 374 140 16 20 22 - 25 4
162160.3300 M28 1.5 374 140 16 20 22 - 26.5 4
162160.3400 M30 1.5 374 150 18 22 24 - 28.5 4
162160.3500 M30 2 374 150 18 22 24 - 28 4
162160.3600 M32 1.5 374 150 18 22 24 - 30.5 4
162160.3700 M33 2 374 160 20 25 26 - 31 4
162160.3800 M35 1.5 374 170 22 28 24 - 33.5 5
162160.3900 M36 1.5 374 170 22 28 24 - 34.5 5
