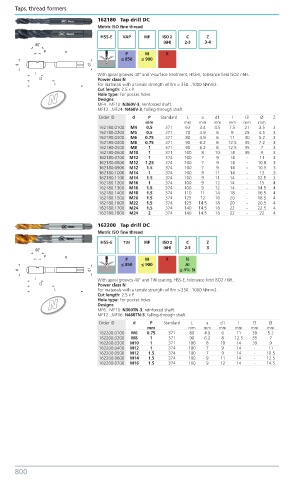

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
162180 Tap drill DC
Metric ISO fine thread
HSS-E VAP MF ISO 2 C Z
(6H) 2-3 3-4
P M K
≤ 850 ≤ 900

With spiral grooves 40° and V-surface treatment, HSS-E, tolerance field ISO2 / 6H.
Power class N
For materials with a tensile strength of Rm > 350...1000 N/mm2.
Cut length: 2.5 x P.
N Hole type: For pocket holes.
Designs
MF4...MF10: N360V-3, reinforced shaft.
MF12...MF24: N460V-3, falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
162180.0100 M4 0.5 371 63 3.4 4.5 7.5 21 3.5 3
162180.0200 M5 0.5 371 70 4.9 6 9 25 4.5 3
162180.0300 M6 0.75 371 80 4.9 6 11 30 5.2 3
162180.0400 M8 0.75 371 90 6.2 8 12.5 35 7.2 3
162180.0500 M8 1 371 90 6.2 8 12.5 35 7 3
162180.0600 M10 1 371 100 8 10 14 39 9 3
162180.0700 M12 1 374 100 7 9 14 - 11 3
162180.0800 M12 1.25 374 100 7 9 14 - 10.8 3
162180.0900 M12 1.5 374 100 7 9 14 - 10.5 3
162180.1000 M14 1 374 100 9 11 14 - 13 3
162180.1100 M14 1.5 374 100 9 11 14 - 12.5 3
162180.1200 M16 1 374 100 9 12 14 - 15 4
162180.1300 M16 1.5 374 100 9 12 14 - 14.5 4
162180.1400 M18 1.5 374 110 11 14 18 - 16.5 4
162180.1500 M20 1.5 374 125 12 16 20 - 18.5 4
162180.1600 M22 1.5 374 125 14.5 18 20 - 20.5 4
162180.1700 M24 1.5 374 140 14.5 18 22 - 22.5 4
162180.1800 M24 2 374 140 14.5 18 22 - 22 4

162200 Tap drill DC
Metric ISO fine thread
HSS-E TiN MF ISO 2 C Z
(6H) 2-3 3

P M K N
≤ 850 ≤ 900 AI
≥ 4% Si
With spiral grooves 40° and TiN coating, HSS-E, tolerance field ISO2 / 6H.
Power class N
For materials with a tensile strength of Rm > 350...1000 N/mm2.
Cut length: 2.5 x P.
N Hole type: For pocket holes.
Designs
MF6...MF10: N360TN-3, reinforced shaft.
MF12...MF16: N460TN-3, falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
162200.0100 M6 0.75 371 80 4.9 6 11 30 5.2
162200.0200 M8 1 371 90 6.2 8 12.5 35 7
162200.0300 M10 1 371 100 8 10 14 39 9
162200.0400 M12 1 374 100 7 9 14 - 11
162200.0500 M12 1.5 374 100 7 9 14 - 10.5
162200.0600 M14 1.5 374 100 9 11 14 - 12.5
162200.0700 M16 1.5 374 100 9 12 14 - 14.5
