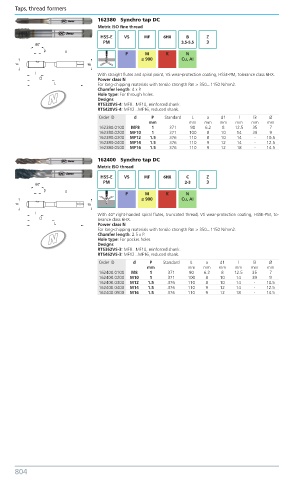

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 62380 Synchro tap DC
Metric ISO fine thread
HSS-E VS MF 6HX B Z
PM 3.5-5.5 3
P M K N
≤ 900 Cu, AI

With straight flutes and spiral point, VS wear-protection coating, HSSE-PM, tolerance class 6HX.
Power class N
For long-chipping materials with tensile strength Rm > 350...1150 N/mm2.
Chamfer length: 4 x P.
N Hole type: For through holes.
Designs
RTS320VS-4: MF8...MF10, reinforced shank.
RTS420VS-4: MF12...MF16, reduced shank.
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
162380.0100 MF8 1 371 90 6.2 8 12.5 35 7
162380.0200 MF10 1 371 100 8 10 14 39 9
162380.0300 MF12 1.5 376 110 8 10 14 - 10.5
162380.0400 MF14 1.5 376 110 9 12 14 - 12.5
162380.0500 MF16 1.5 376 110 9 12 18 - 14.5

1 62400 Synchro tap DC
Metric ISO thread
HSS-E VS MF 6HX C Z
PM 2-3 3
P M K N
≤ 900 Cu, AI

With 40° right-handed spiral flutes, truncated thread, VS wear-protection coating, HSSE-PM, to-
lerance class 6HX.
Power class N
For long-chipping materials with tensile strength Rm > 350...1150 N/mm2.
N Chamfer length: 2.5 x P.
Hole type: For pocket holes.
Designs
RTS362VS-3: MF8...MF10, reinforced shank.
RTS462VS-3: MF12...MF16, reduced shank.
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
162400.0100 M8 1 371 90 6.2 8 12.5 35 7
162400.0200 M10 1 371 100 8 10 14 39 9
162400.0300 M12 1.5 376 110 8 10 14 - 10.5
162400.0400 M14 1.5 376 110 9 12 14 - 12.5
162400.0500 M16 1.5 376 110 9 12 18 - 14.5
