Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

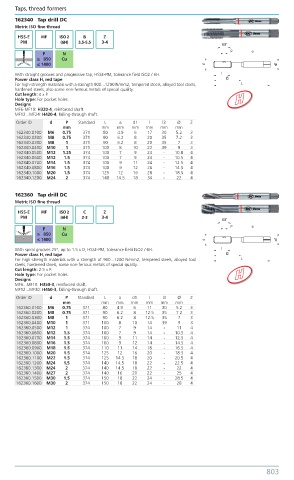

1 62340 Tap drill DC
Metric ISO fine thread
HSS-E MF ISO 2 B Z
PM (6H) 3.5-5.5 3-4
P N
≥ 850 Cu
≤ 1400
With straight grooves and progressive tap, HSSE-PM, tolerance field ISO2 / 6H.
Power class H, red tape
For high-strength materials with a strength 900...1200 N/mm2, tempered steels, alloyed tool steels,
hardened steels, also some non-ferrous metals of special quality.
Cut length: 4 x P.
Hole type: For pocket holes. H
Designs
MF6-MF10: H320-4, reinforced shaft.
MF12...MF24: H420-4, falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
162340.0100 M6 0.75 371 80 4.9 6 17 30 5.2 3
162340.0200 M8 0.75 371 90 6.2 8 20 35 7.2 3
162340.0300 M8 1 371 90 6.2 8 20 35 7 3
162340.0400 M10 1 371 100 8 10 22 39 9 3
162340.0500 M12 1.25 374 100 7 9 24 - 10.8 4
162340.0600 M12 1.5 374 100 7 9 24 - 10.5 4
162340.0700 M14 1.5 374 100 9 11 24 - 12.5 4
162340.0800 M16 1.5 374 100 9 12 26 - 14.5 4
162340.1000 M20 1.5 374 125 12 16 28 - 18.5 4
162340.1200 M24 2 374 140 14.5 18 34 - 22 4

1 62360 Tap drill DC
Metric ISO fine thread
HSS-E MF ISO 2 C Z
PM (6H) 2-3 3-4
P N
≥ 850 Cu
≤ 1400
With spiral grooves 25°, up to 1.5 x D, HSSE-PM, tolerance field ISO2 / 6H.
Power class H, red tape
For high-strength materials with a strength of 900...1200 N/mm2, tempered steels, alloyed tool
steels, hardened steels, some non-ferrous metals of special quality.
Cut length: 2.5 x P.
Hole type: For pocket holes. H
Designs
MF6...MF10: H350-3, reinforced shaft.
MF12...MF30: H450-3, falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
162360.0100 M6 0.75 371 80 4.9 6 11 30 5.2 3
162360.0200 M8 0.75 371 90 6.2 8 12.5 35 7.2 3
162360.0300 M8 1 371 90 6.2 8 12.5 35 7 3
162360.0400 M10 1 371 100 8 10 14 39 9 3
162360.0500 M12 1 374 100 7 9 14 - 11 4
162360.0600 M12 1.5 374 100 7 9 14 - 10.5 4
162360.0700 M14 1.5 374 100 9 11 14 - 12.5 4
162360.0800 M16 1.5 374 100 9 12 14 - 14.5 4
162360.0900 M18 1.5 374 110 11 14 18 - 16.5 4
162360.1000 M20 1.5 374 125 12 16 20 - 18.5 4
162360.1100 M22 1.5 374 125 14.5 18 20 - 20.5 4
162360.1200 M24 1.5 374 140 14.5 18 22 - 22.5 4
162360.1300 M24 2 374 140 14.5 18 22 - 22 4
162360.1400 M27 2 374 140 16 20 22 - 25 4
162360.1500 M30 1.5 374 150 18 22 24 - 28.5 4
162360.1600 M30 2 374 150 18 22 24 - 28 4

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 803
