Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

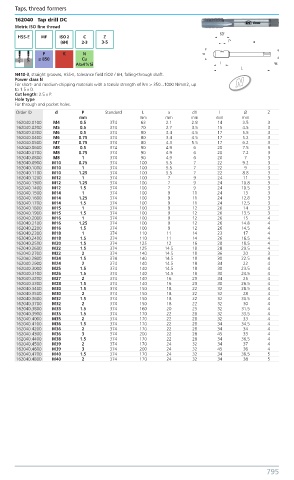

1 62040 Tap drill DC
Metric ISO fine thread
HSS-E MF ISO 2 C Z
(6H) 2-3 3-5
P K N
≤ 850 Cu
AI≥4%Si
N410-3, straight grooves, HSS-E, tolerance field ISO2 / 6H, falling-through shaft.
Power class N N
For short- and medium-chipping materials with a tensile strength of Rm > 350...1000 N/mm2, up
to 1.5 x D.
Cut length: 2.5 x P.
Hole type
For through and pocket holes.
Order ID d P Standard L a d1 l Ø Z
mm mm mm mm mm mm
162040.0100 M4 0.5 374 63 2.1 2.8 14 3.5 3
162040.0200 M5 0.5 374 70 2.7 3.5 15 4.5 3
162040.0300 M6 0.5 374 80 3.4 4.5 17 5.5 3
162040.0400 M6 0.75 374 80 3.4 4.5 17 5.2 3
162040.0500 M7 0.75 374 80 4.3 5.5 17 6.2 3
162040.0600 M8 0.5 374 90 4.9 6 20 7.5 3
162040.0700 M8 0.75 374 90 4.9 6 20 7.2 3
162040.0800 M8 1 374 90 4.9 6 20 7 3
162040.0900 M10 0.75 374 100 5.5 7 22 9.2 3
162040.1000 M10 1 374 100 5.5 7 22 9 3
162040.1100 M10 1.25 374 100 5.5 7 22 8.8 3
162040.1200 M12 1 374 100 7 9 24 11 3
162040.1300 M12 1.25 374 100 7 9 24 10.8 3
162040.1400 M12 1.5 374 100 7 9 24 10.5 3
162040.1500 M14 1 374 100 9 11 24 13 3
162040.1600 M14 1.25 374 100 9 11 24 12.8 3
162040.1700 M14 1.5 374 100 9 11 24 12.5 3
162040.1800 M15 1 374 100 9 12 26 14 3
162040.1900 M15 1.5 374 100 9 12 26 13.5 3
162040.2000 M16 1 374 100 9 12 26 15 4
162040.2100 M16 1.25 374 100 9 12 26 14.8 4
162040.2200 M16 1.5 374 100 9 12 26 14.5 4
162040.2300 M18 1 374 110 11 14 23 17 4
162040.2400 M18 1.5 374 110 11 14 26 16.5 4
162040.2500 M20 1.5 374 125 12 16 28 18.5 4
162040.2600 M22 1.5 374 125 14.5 18 28 20.5 4
162040.2700 M22 2 374 140 14.5 18 36 20 3
162040.2800 M24 1.5 374 140 14.5 18 30 22.5 4
162040.2900 M24 2 374 140 14.5 18 34 22 4
162040.3000 M25 1.5 374 140 14.5 18 30 23.5 4
162040.3100 M26 1.5 374 140 14.5 18 30 24.5 4
162040.3200 M27 2 374 140 16 20 34 25 4
162040.3300 M28 1.5 374 140 16 20 30 26.5 4
162040.3400 M30 1.5 374 150 18 22 32 28.5 4
162040.3500 M30 2 374 150 18 22 32 28 4
162040.3600 M32 1.5 374 150 18 22 32 30.5 4
162040.3700 M32 2 374 150 18 22 32 30 4
162040.3800 M33 1.5 374 160 20 25 32 31.5 4
162040.3900 M35 1.5 374 170 22 28 32 33.5 4
162040.4000 M35 2 374 170 22 28 32 33 4
162040.4100 M36 1.5 374 170 22 28 34 34.5 4
162040.4200 M36 2 374 170 22 28 34 34 4
162040.4300 M36 3 374 200 22 28 45 33 4
162040.4400 M38 1.5 374 170 22 28 34 36.5 4
162040.4500 M39 2 374 170 24 32 34 37 4
162040.4600 M39 3 374 200 24 32 45 36 4
162040.4700 M40 1.5 374 170 24 32 34 38.5 5
162040.4800 M40 2 374 170 24 32 34 38 5
