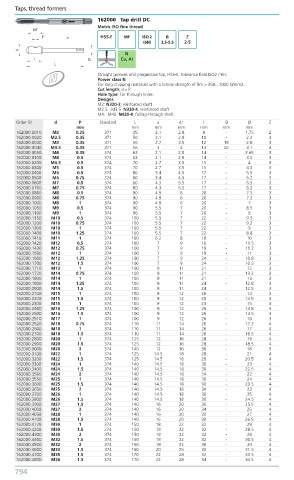

Page 803 - Benma | Blue book 5.0

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 62000 Tap drill DC
Metric ISO fine thread
HSS-E MF ISO 2 B Z
(6H) 3.5-5.5 2-5
N
Cu, AI

N Straight grooves and progressive tap, HSS-E, tolerance field ISO2 / 6H.
Power class N
For long-chipping materials with a tensile strength of Rm > 350...1000 N/mm2.
Cut length: 4 x P.
Hole type: For through holes.
Designs
M2: N320-3, reinforced shaft
M2.5...M3.5: N320-4, reinforced shaft
M4...M40: N420-4, falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
162000.0010 M2 0.25 371 45 2.1 2.8 8 - 1.75 2
162000.0020 M2.5 0.35 371 50 2.1 2.8 10 - 2.2 3
162000.0030 M3 0.35 371 56 2.7 3.5 12 18 2.6 3
162000.0040 M3.5 0.35 371 56 3 4 13 20 3.1 3
162000.0050 M4 0.35 374 63 2.1 2.8 14 - 3.65 3
162000.0100 M4 0.5 374 63 2.1 2.8 14 - 3.5 3
162000.0200 M4.5 0.5 374 70 2.7 3.5 15 - 4 3
162000.0300 M5 0.5 374 70 2.7 3.5 15 - 4.5 3
162000.0400 M6 0.5 374 80 3.4 4.5 17 - 5.5 3
162000.0500 M6 0.75 374 80 3.4 4.5 17 - 5.2 3
162000.0600 M7 0.5 374 80 4.3 5.5 17 - 6.5 3
162000.0700 M7 0.75 374 80 4.3 5.5 17 - 6.2 3
162000.0800 M8 0.5 374 90 4.9 6 20 - 7.5 3
162000.0900 M8 0.75 374 90 4.9 6 20 - 7.2 3
162000.1000 M8 1 374 90 4.9 6 20 - 7 3
162000.1050 M9 0.5 374 90 5.5 7 20 - 8.5 3
162000.1100 M9 1 374 90 5.5 7 20 - 8 3
162000.1150 M10 0.5 374 100 5.5 7 22 - 9.5 3
162000.1200 M10 0.75 374 100 5.5 7 22 - 9.2 3
162000.1300 M10 1 374 100 5.5 7 22 - 9 3
162000.1400 M10 1.25 374 100 5.5 7 22 - 8.8 3
162000.1410 M11 1 374 100 6.2 8 19 - 10 3
162000.1420 M12 0.5 374 100 7 9 16 - 11.5 3
162000.1430 M12 0.75 374 100 7 9 19 - 11.2 3
162000.1500 M12 1 374 100 7 9 19 - 11 3
162000.1600 M12 1.25 374 100 7 9 24 - 10.8 3
162000.1700 M12 1.5 374 100 7 9 24 - 10.5 3
162000.1710 M13 1 374 100 9 11 21 - 12 3
162000.1720 M14 0.75 374 100 9 11 21 - 13.2 3
162000.1800 M14 1 374 100 9 11 21 - 13 3
162000.1900 M14 1.25 374 100 9 11 24 - 12.8 3
162000.2000 M14 1.5 374 100 9 11 24 12.5 3
162000.2100 M15 1 374 100 9 12 26 - 14 3
162000.2200 M15 1.5 374 100 9 12 26 - 13.5 3
162000.2300 M16 1 374 100 9 12 23 - 15 3
162000.2400 M16 1.25 374 100 9 12 26 - 14.8 3
162000.2500 M16 1.5 374 100 9 12 26 - 14.5 3
162000.2510 M17 1 374 100 9 12 26 - 16 3
162000.2520 M18 0.75 374 110 11 14 26 - 17.2 4
162000.2600 M18 1 374 110 11 14 26 - 17 4
162000.2700 M18 1.5 374 110 11 14 26 - 16.5 4
162000.2800 M20 1 374 125 12 16 28 - 19 4
162000.2900 M20 1.5 374 125 12 16 28 - 18.5 4
162000.3000 M20 2 374 140 12 16 36 - 18 3
162000.3100 M22 1 374 125 14.5 18 28 - 21 4
162000.3200 M22 1.5 374 125 14.5 18 28 - 20.5 4
162000.3300 M24 1 374 140 14.5 18 30 - 23 4
162000.3400 M24 1.5 374 140 14.5 18 30 - 22.5 4
162000.3500 M24 2 374 140 14.5 18 34 - 22 4
162000.3550 M25 1 374 140 14.5 18 30 - 24 4
162000.3600 M25 1.5 374 140 14.5 18 30 - 23.5 4
162000.3650 M25 2 374 140 14.5 18 34 - 23 4
162000.3700 M26 1 374 140 14.5 18 30 - 25 4
162000.3800 M26 1.5 374 140 14.5 18 30 - 24.5 4
162000.3900 M27 1.5 374 140 16 20 30 - 25.5 4
162000.4000 M27 2 374 140 16 20 34 - 25 4
162000.4050 M28 1 374 140 16 20 30 - 27 4
162000.4100 M28 1.5 374 140 16 20 30 - 26.5 4
162000.4120 M30 1 374 150 18 22 32 - 29 4
162000.4200 M30 1.5 374 150 18 22 32 - 28.5 4
162000.4300 M30 2 374 150 18 22 32 - 28 4
162000.4400 M32 1.5 374 150 18 22 32 - 30.5 4
162000.4500 M32 2 374 150 18 22 36 - 30 4
162000.4600 M33 1.5 374 160 20 25 32 - 31.5 4
162000.4700 M35 1.5 374 170 22 28 32 - 33.5 4
162000.4800 M36 1.5 374 170 22 28 34 - 34.5 4
