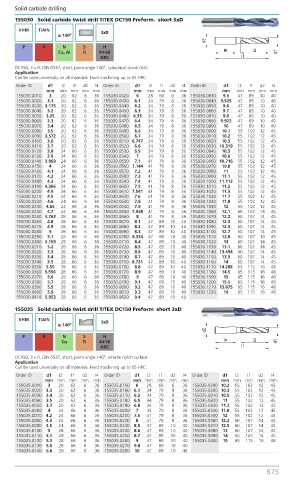

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
155030 Solid carbide twist drill TITEX DC150 Preform. short 3xD

VHM TiAIN 3xD
α: 140º
P K N S H
Cu, AI Ti 44-56
HRC
DC150, 3 x D, DIN 6537, short, point angle 140°, cylindrical shank (HA)
Application
Can be used universally on all materials. Hard machining up to 55 HRC.
Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155030.0010 3 20 62 6 36 155030.0420 6 28 66 6 36 155030.0830 9.5 47 89 10 40
155030.0020 3.1 20 62 6 36 155030.0430 6.1 34 79 8 36 155030.0840 9.525 47 89 10 40
155030.0030 3.175 20 62 6 36 155030.0440 6.2 34 79 8 36 155030.0850 9.6 47 89 10 40
155030.0040 3.2 20 62 6 36 155030.0450 6.3 34 79 8 36 155030.0860 9.7 47 89 10 40
155030.0050 3.25 20 62 6 36 155030.0460 6.35 34 79 8 36 155030.0870 9.8 47 89 10 40
155030.0060 3.3 20 62 6 36 155030.0470 6.4 34 79 8 36 155030.0880 9.922 47 89 10 40
155030.0070 3.4 20 62 6 36 155030.0480 6.5 34 79 8 36 155030.0890 10 47 89 10 40
155030.0080 3.5 20 62 6 36 155030.0490 6.6 34 79 8 36 155030.0900 10.1 55 102 12 45
155030.0090 3.572 20 62 6 36 155030.0500 6.7 34 79 8 36 155030.0910 10.2 55 102 12 45
155030.0100 3.6 20 62 6 36 155030.0510 6.747 34 79 8 36 155030.0920 10.3 55 102 12 45
155030.0110 3.7 20 62 6 36 155030.0520 6.8 34 79 8 36 155030.0930 10.319 55 102 12 45
155030.0120 3.8 24 66 6 36 155030.0530 6.9 34 79 8 36 155030.0940 10.5 55 102 12 45
155030.0130 3.9 24 66 6 36 155030.0540 7 34 79 8 36 155030.0950 10.6 55 102 12 45
155030.0140 3.969 24 66 6 36 155030.0550 7.1 41 79 8 36 155030.0960 10.716 55 102 12 45
155030.0150 4 24 66 6 36 155030.0560 7.144 41 79 8 36 155030.0970 10.8 55 102 12 45
155030.0160 4.1 24 66 6 36 155030.0570 7.2 41 79 8 36 155030.0980 11 55 102 12 45
155030.0170 4.2 24 66 6 36 155030.0580 7.3 41 79 8 36 155030.0990 11.1 55 102 12 45
155030.0180 4.3 24 66 6 36 155030.0590 7.4 41 79 8 36 155030.1000 11.113 55 102 12 45
155030.0190 4.366 24 66 6 36 155030.0600 7.5 41 79 8 36 155030.1010 11.2 55 102 12 45
155030.0200 4.4 24 66 6 36 155030.0610 7.541 41 79 8 36 155030.1020 11.5 55 102 12 45
155030.0210 4.5 24 66 6 36 155030.0620 7.6 41 79 8 36 155030.1030 11.7 55 102 12 45
155030.0220 4.6 24 66 6 36 155030.0630 7.8 41 79 8 36 155030.1040 11.8 55 102 12 45
155030.0230 4.65 24 66 6 36 155030.0640 7.9 41 79 8 36 155030.1050 12 55 102 12 45
155030.0240 4.7 24 66 6 36 155030.0650 7.938 41 79 8 36 155030.1060 12.1 60 107 14 45
155030.0250 4.763 28 66 6 36 155030.0660 8 41 79 8 36 155030.1070 12.2 60 107 14 45
155030.0260 4.8 28 66 6 36 155030.0670 8.1 47 89 10 40 155030.1080 12.3 60 107 14 45
155030.0270 4.9 28 66 6 36 155030.0680 8.2 47 89 10 40 155030.1090 12.5 60 107 14 45
155030.0280 5 28 66 6 36 155030.0690 8.3 47 89 10 40 155030.1100 12.7 60 107 14 45
155030.0290 5.1 28 66 6 36 155030.0700 8.334 47 89 10 40 155030.1110 12.8 60 107 14 45
155030.0300 5.159 28 66 6 36 155030.0710 8.4 47 89 10 40 155030.1120 13 60 107 14 45
155030.0310 5.2 28 66 6 36 155030.0720 8.5 47 89 10 40 155030.1130 13.1 60 107 14 45
155030.0320 5.3 28 66 6 36 155030.0730 8.6 47 89 10 40 155030.1140 13.494 60 107 14 45
155030.0330 5.4 28 66 6 36 155030.0740 8.7 47 89 10 40 155030.1150 13.5 60 107 14 45
155030.0340 5.5 28 66 6 36 155030.0750 8.731 47 89 10 40 155030.1160 14 60 107 14 45
155030.0350 5.55 28 66 6 36 155030.0760 8.8 47 89 10 40 155030.1170 14.288 65 115 16 48
155030.0360 5.556 28 66 6 36 155030.0770 8.9 47 89 10 40 155030.1180 14.5 65 115 16 48
155030.0370 5.6 28 66 6 36 155030.0780 9 47 89 10 40 155030.1190 15 65 115 16 48
155030.0380 5.7 28 66 6 36 155030.0790 9.1 47 89 10 40 155030.1200 15.5 65 115 16 48
155030.0390 5.5 28 66 6 36 155030.0800 9.2 47 89 10 40 155030.1210 15.875 65 115 16 48
155030.0400 5.9 28 66 6 36 155030.0810 9.3 47 89 10 40 155030.1220 16 65 115 16 48
155030.0410 5.953 28 66 6 36 155030.0820 9.4 47 89 10 40

155035 Solid carbide twist drill TITEX DC150 Preform short 3xD
VHM TiAIN 3xD
α: 140º
P K N S H
Cu Ti 44-56
HRC
DC150, 3 x D, DIN 6537, short, point angle 140°, whistle notch surface
Application
Can be used universally on all materials. Hard machining up to 55 HRC.
Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155035.0010 3 20 62 6 36 155035.0150 6 28 66 6 36 155035.0290 10.2 55 102 12 45
155035.0020 3.3 20 62 6 36 155035.0160 6.1 34 79 8 36 155035.0300 10.3 55 102 12 45
155035.0030 3.4 20 62 6 36 155035.0170 6.2 34 79 8 36 155035.0310 10.5 55 102 12 45
155035.0040 3.5 20 62 6 36 155035.0180 6.5 34 79 8 36 155035.0320 11 55 102 12 45
155035.0050 3.7 20 62 6 36 155035.0190 6.8 34 79 8 36 155035.0330 11.2 55 102 12 45
155035.0060 4 24 66 6 36 155035.0200 7 34 79 8 36 155035.0340 11.8 55 102 12 45
155035.0070 4.2 24 66 6 36 155035.0210 7.5 41 79 8 36 155035.0350 12 55 102 12 45
155035.0080 4.3 24 66 6 36 155035.0220 8 41 79 8 36 155035.0360 12.2 60 107 14 45
155035.0090 4.5 24 66 6 36 155035.0230 8.5 47 89 10 40 155035.0370 12.5 60 107 14 45
155035.0100 5 28 66 6 36 155035.0240 8.6 47 89 10 40 155035.0380 13 60 107 14 45
155035.0110 5.1 28 66 6 36 155035.0250 8.7 47 89 10 40 155035.0390 14 60 107 14 45
155035.0120 5.3 28 66 6 36 155035.0260 9 47 89 10 40 155035.0400 15 65 115 16 48
155035.0130 5.5 28 66 6 36 155035.0270 9.8 47 89 10 40
155035.0140 5.6 28 66 6 36 155035.0280 10 47 89 10 40
