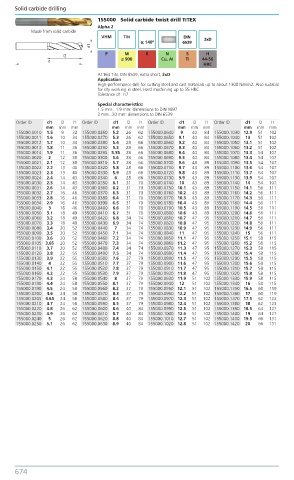

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
155000 Solid carbide twist drill TITEX
Alpha 2
Made from solid carbide
VHM TiN DIN 3xD
α: 140º 6539
P M K N S H
≤ 900 Cu, AI Ti 44-56
HRC
A1164 TiN, DIN 6539, extra short, 3xD
Application
High-performance drill for cutting steel and cast materials up to about 1300 N/mm2. Also suitable
for dry working in steel. Hard machining up to 55 HRC.
Tolerance d1: h7
Special characteristics:
1.5 mm...1.9 mm: dimensions to DIN 1897
2 mm...20 mm: dimensions to DIN 6539
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
155000.0010 1.5 9 32 155000.0260 5.2 26 62 155000.0640 9 40 84 155000.1030 12.9 51 102
155000.0011 1.6 10 34 155000.0270 5.3 26 62 155000.0650 9.1 40 84 155000.1040 13 51 102
155000.0012 1.7 10 34 155000.0280 5.4 28 66 155000.0660 9.2 40 84 155000.1050 13.1 51 102
155000.0013 1.8 11 36 155000.0290 5.5 28 66 155000.0670 9.3 40 84 155000.1060 13.2 51 102
155000.0014 1.9 11 36 155000.0295 5.55 28 66 155000.0680 9.4 40 84 155000.1070 13.3 54 107
155000.0020 2 12 38 155000.0300 5.6 28 66 155000.0690 9.5 40 84 155000.1080 13.4 54 107
155000.0021 2.1 12 38 155000.0310 5.7 28 66 155000.0700 9.6 43 89 155000.1090 13.5 54 107
155000.0022 2.2 13 40 155000.0320 5.8 28 66 155000.0710 9.7 43 89 155000.1100 13.6 54 107
155000.0023 2.3 13 40 155000.0330 5.9 28 66 155000.0720 9.8 43 89 155000.1110 13.7 54 107
155000.0024 2.4 14 43 155000.0340 6 28 66 155000.0730 9.9 43 89 155000.1130 13.9 54 107
155000.0030 2.5 14 43 155000.0350 6.1 31 70 155000.0740 10 43 89 155000.1140 14 54 107
155000.0031 2.6 14 43 155000.0360 6.2 31 70 155000.0750 10.1 43 89 155000.1150 14.1 56 111
155000.0032 2.7 16 46 155000.0370 6.3 31 70 155000.0760 10.2 43 89 155000.1160 14.2 56 111
155000.0033 2.8 16 46 155000.0380 6.4 31 70 155000.0770 10.3 43 89 155000.1170 14.3 56 111
155000.0034 2.9 16 46 155000.0390 6.5 31 70 155000.0780 10.4 43 89 155000.1180 14.4 56 111
155000.0040 3 16 46 155000.0400 6.6 31 70 155000.0790 10.5 43 89 155000.1190 14.5 56 111
155000.0050 3.1 18 49 155000.0410 6.7 31 70 155000.0800 10.6 43 89 155000.1200 14.6 56 111
155000.0060 3.2 18 49 155000.0420 6.8 34 74 155000.0810 10.7 47 95 155000.1210 14.7 56 111
155000.0070 3.3 18 49 155000.0430 6.9 34 74 155000.0820 10.8 47 95 155000.1220 14.8 56 111
155000.0080 3.4 20 52 155000.0440 7 34 74 155000.0830 10.9 47 95 155000.1230 14.9 56 111
155000.0090 3.5 20 52 155000.0450 7.1 34 74 155000.0840 11 47 95 155000.1240 15 56 111
155000.0100 3.6 20 52 155000.0460 7.2 34 74 155000.0850 11.1 47 95 155000.1250 15.1 58 115
155000.0105 3.65 20 52 155000.0470 7.3 34 74 155000.0860 11.2 47 95 155000.1260 15.2 58 115
155000.0110 3.7 20 52 155000.0480 7.4 34 74 155000.0870 11.3 47 95 155000.1270 15.3 58 115
155000.0120 3.8 22 55 155000.0490 7.5 34 74 155000.0880 11.4 47 95 155000.1280 15.4 58 115
155000.0130 3.9 22 55 155000.0500 7.6 37 79 155000.0890 11.5 47 95 155000.1290 15.5 58 115
155000.0140 4 22 55 155000.0510 7.7 37 79 155000.0900 11.6 47 95 155000.1300 15.6 58 115
155000.0150 4.1 22 55 155000.0520 7.8 37 79 155000.0910 11.7 47 95 155000.1310 15.7 58 115
155000.0160 4.2 22 55 155000.0530 7.9 37 79 155000.0920 11.8 47 95 155000.1320 15.8 58 115
155000.0170 4.3 24 58 155000.0540 8 37 79 155000.0930 11.9 51 102 155000.1330 15.9 58 115
155000.0180 4.4 24 58 155000.0550 8.1 37 79 155000.0940 12 51 102 155000.1340 16 58 115
155000.0190 4.5 24 58 155000.0560 8.2 37 79 155000.0950 12.1 51 102 155000.1350 16.5 60 119
155000.0200 4.6 24 58 155000.0570 8.3 37 79 155000.0960 12.2 51 102 155000.1360 17 60 119
155000.0205 4.65 24 58 155000.0580 8.4 37 79 155000.0970 12.3 51 102 155000.1370 17.5 62 123
155000.0210 4.7 24 58 155000.0590 8.5 37 79 155000.0980 12.4 51 102 155000.1380 18 62 123
155000.0220 4.8 26 62 155000.0600 8.6 40 84 155000.0990 12.5 51 102 155000.1390 18.5 64 127
155000.0230 4.9 26 62 155000.0610 8.7 40 84 155000.1000 12.6 51 102 155000.1400 19 64 127
155000.0240 5 26 62 155000.0620 8.8 40 84 155000.1010 12.7 51 102 155000.1410 19.5 66 131
155000.0250 5.1 26 62 155000.0630 8.9 40 84 155000.1020 12.8 51 102 155000.1420 20 66 131
