Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

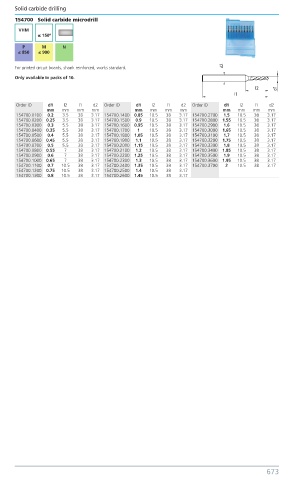

1 54700 Solid carbide microdrill

VHM
α: 150º
P M N
≤ 850 ≤ 900

For printed circuit boards, shank reinforced, works standard.
Only available in packs of 10.

Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
154700.0100 0.2 3.5 38 3.17 154700.1400 0.85 10.5 38 3.17 154700.2700 1.5 10.5 38 3.17
154700.0200 0.25 3.5 38 3.17 154700.1500 0.9 10.5 38 3.17 154700.2800 1.55 10.5 38 3.17
154700.0300 0.3 5.5 38 3.17 154700.1600 0.95 10.5 38 3.17 154700.2900 1.6 10.5 38 3.17
154700.0400 0.35 5.5 38 3.17 154700.1700 1 10.5 38 3.17 154700.3000 1.65 10.5 38 3.17
154700.0500 0.4 5.5 38 3.17 154700.1800 1.05 10.5 38 3.17 154700.3100 1.7 10.5 38 3.17
154700.0600 0.45 5.5 38 3.17 154700.1900 1.1 10.5 38 3.17 154700.3200 1.75 10.5 38 3.17
154700.0700 0.5 5.5 38 3.17 154700.2000 1.15 10.5 38 3.17 154700.3300 1.8 10.5 38 3.17
154700.0800 0.55 7 38 3.17 154700.2100 1.2 10.5 38 3.17 154700.3400 1.85 10.5 38 3.17
154700.0900 0.6 7 38 3.17 154700.2200 1.25 10.5 38 3.17 154700.3500 1.9 10.5 38 3.17
154700.1000 0.65 7 38 3.17 154700.2300 1.3 10.5 38 3.17 154700.3600 1.95 10.5 38 3.17
154700.1100 0.7 10.5 38 3.17 154700.2400 1.35 10.5 38 3.17 154700.3700 2 10.5 38 3.17
154700.1200 0.75 10.5 38 3.17 154700.2500 1.4 10.5 38 3.17
154700.1300 0.8 10.5 38 3.17 154700.2600 1.45 10.5 38 3.17
