Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

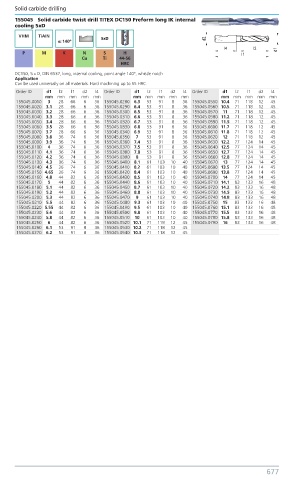

155045 Solid carbide twist drill TITEX DC150 Preform long IK internal
cooling 5xD

VHM TiAIN 5xD
α: 140º
P M K N S H
Cu Ti 44-56
HRC
DC150, 5 x D, DIN 6537, long, internal cooling, point angle 140°, whistle notch
Application
Can be used universally on all materials. Hard machining up to 55 HRC.
Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155045.0010 3 28 66 6 36 155045.0280 6.3 53 91 8 36 155045.0550 10.4 71 118 12 45
155045.0020 3.1 28 66 6 36 155045.0290 6.4 53 91 8 36 155045.0560 10.5 71 118 12 45
155045.0030 3.2 28 66 6 36 155045.0300 6.5 53 91 8 36 155045.0570 11 71 118 12 45
155045.0040 3.3 28 66 6 36 155045.0310 6.6 53 91 8 36 155045.0580 11.2 71 118 12 45
155045.0050 3.4 28 66 6 36 155045.0320 6.7 53 91 8 36 155045.0590 11.5 71 118 12 45
155045.0060 3.5 28 66 6 36 155045.0330 6.8 53 91 8 36 155045.0600 11.7 71 118 12 45
155045.0070 3.7 28 66 6 36 155045.0340 6.9 53 91 8 36 155045.0610 11.8 71 118 12 45
155045.0080 3.8 36 74 6 36 155045.0350 7 53 91 8 36 155045.0620 12 71 118 12 45
155045.0090 3.9 36 74 6 36 155045.0360 7.4 53 91 8 36 155045.0630 12.2 77 124 14 45
155045.0100 4 36 74 6 36 155045.0370 7.5 53 91 8 36 155045.0640 12.5 77 124 14 45
155045.0110 4.1 36 74 6 36 155045.0380 7.8 53 91 8 36 155045.0650 12.7 77 124 14 45
155045.0120 4.2 36 74 6 36 155045.0390 8 53 91 8 36 155045.0660 12.8 77 124 14 45
155045.0130 4.3 36 74 6 36 155045.0400 8.1 61 103 10 40 155045.0670 13 77 124 14 45
155045.0140 4.5 36 74 6 36 155045.0410 8.2 61 103 10 40 155045.0680 13.5 77 124 14 45
155045.0150 4.65 36 74 6 36 155045.0420 8.4 61 103 10 40 155045.0690 13.8 77 124 14 45
155045.0160 4.8 44 82 6 36 155045.0430 8.5 61 103 10 40 155045.0700 14 77 124 14 45
155045.0170 5 44 82 6 36 155045.0440 8.6 61 103 10 40 155045.0710 14.1 83 133 16 48
155045.0180 5.1 44 82 6 36 155045.0450 8.7 61 103 10 40 155045.0720 14.2 83 133 16 48
155045.0190 5.2 44 82 6 36 155045.0460 8.8 61 103 10 40 155045.0730 14.5 83 133 16 48
155045.0200 5.3 44 82 6 36 155045.0470 9 61 103 10 40 155045.0740 14.8 83 133 16 48
155045.0210 5.5 44 82 6 36 155045.0480 9.3 61 103 10 40 155045.0750 15 83 133 16 48
155045.0220 5.55 44 82 6 36 155045.0490 9.5 61 103 10 40 155045.0760 15.1 83 133 16 48
155045.0230 5.6 44 82 6 36 155045.0500 9.8 61 103 10 40 155045.0770 15.5 83 133 16 48
155045.0240 5.8 44 82 6 36 155045.0510 10 61 103 10 40 155045.0780 15.8 83 133 16 48
155045.0250 6 44 82 6 36 155045.0520 10.1 71 118 12 45 155045.0790 16 83 133 16 48
155045.0260 6.1 53 91 8 36 155045.0530 10.2 71 118 12 45
155045.0270 6.2 53 91 8 36 155045.0540 10.3 71 118 12 45
