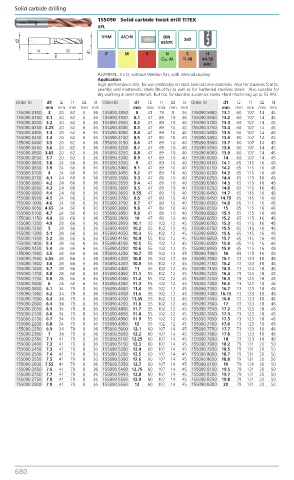

Page 689 - Benma | Blue book 5.0

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
155090 Solid carbide twist drill TITEX
XPL
VHM AlCrN DIN 3xD
6537K
P M K N S H
Cu, AI Ti-Ni 44-56
HRC
A3299XPL, 3 x D, without Weldon flat, with internal cooling.
Application
High-performance drill, for use preferably on steel and cast iron materials. Also for stainless ferritic,
pearlitic and martensitic steels (NI<4%) as well as for hardened stainless steels. Also suitable for
dry working in steel materials. But not for stainless austenitic steels. Hard machining up to 55 HRC.
Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155090.0100 3 20 62 6 36 155090.2850 8 41 79 8 36 155090.5600 13.1 60 107 14 45
155090.0150 3.1 20 62 6 36 155090.2900 8.1 47 89 10 40 155090.5650 13.2 60 107 14 45
155090.0200 3.2 20 62 6 36 155090.2950 8.2 47 89 10 40 155090.5700 13.3 60 107 14 45
155090.0250 3.25 20 62 6 36 155090.3000 8.3 47 89 10 40 155090.5750 13.4 60 107 14 45
155090.0300 3.3 20 62 6 36 155090.3050 8.4 47 89 10 40 155090.5800 13.5 60 107 14 45
155090.0350 3.4 20 62 6 36 155090.3100 8.5 47 89 10 40 155090.5850 13.6 60 107 14 45
155090.0400 3.5 20 62 6 36 155090.3150 8.6 47 89 10 40 155090.5900 13.7 60 107 14 45
155090.0450 3.6 20 62 6 36 155090.3200 8.7 47 89 10 40 155090.5950 13.8 60 107 14 45
155090.0500 3.65 20 62 6 36 155090.3250 8.8 47 89 10 40 155090.6000 13.9 60 107 14 45
155090.0550 3.7 20 62 6 36 155090.3300 8.9 47 89 10 40 155090.6050 14 60 107 14 45
155090.0600 3.8 24 66 6 36 155090.3350 9 47 89 10 40 155090.6100 14.1 65 115 16 48
155090.0650 3.9 24 66 6 36 155090.3400 9.1 47 89 10 40 155090.6150 14.2 65 115 16 48
155090.0700 4 24 66 6 36 155090.3450 9.2 47 89 10 40 155090.6200 14.3 65 115 16 48
155090.0750 4.1 24 66 6 36 155090.3500 9.3 47 89 10 40 155090.6250 14.4 65 115 16 48
155090.0800 4.2 24 66 6 36 155090.3550 9.4 47 89 10 40 155090.6300 14.5 65 115 16 48
155090.0850 4.3 24 66 6 36 155090.3600 9.5 47 89 10 40 155090.6350 14.6 65 115 16 48
155090.0900 4.4 24 66 6 36 155090.3650 9.55 47 89 10 40 155090.6400 14.7 65 115 16 48
155090.0950 4.5 24 66 6 36 155090.3700 9.6 47 89 10 40 155090.6450 14.75 65 115 16 48
155090.1000 4.6 24 66 6 36 155090.3750 9.7 47 89 10 40 155090.6500 14.8 65 115 16 48
155090.1050 4.65 24 66 6 36 155090.3800 9.8 47 89 10 40 155090.6550 15 65 115 16 48
155090.1100 4.7 24 66 6 36 155090.3850 9.9 47 89 10 40 155090.6600 15.1 65 115 16 48
155090.1150 4.8 28 66 6 36 155090.3900 10 47 89 10 40 155090.6650 15.2 65 115 16 48
155090.1200 4.9 28 66 6 36 155090.3950 10.1 55 102 12 45 155090.6700 15.3 65 115 16 48
155090.1250 5 28 66 6 36 155090.4000 10.2 55 102 12 45 155090.6750 15.5 65 115 16 48
155090.1300 5.1 28 66 6 36 155090.4050 10.3 55 102 12 45 155090.6800 15.6 65 115 16 48
155090.1350 5.2 28 66 6 36 155090.4100 10.4 55 102 12 45 155090.6850 15.7 65 115 16 48
155090.1400 5.3 28 66 6 36 155090.4150 10.5 55 102 12 45 155090.6900 15.8 65 115 16 48
155090.1450 5.4 28 66 6 36 155090.4200 10.6 55 102 12 45 155090.6950 15.9 65 115 16 48
155090.1500 5.5 28 66 6 36 155090.4250 10.7 55 102 12 45 155090.7000 16 65 115 16 48
155090.1550 5.55 28 66 6 36 155090.4300 10.8 55 102 12 45 155090.7050 16.1 73 123 18 48
155090.1600 5.6 28 66 6 36 155090.4350 10.9 55 102 12 45 155090.7100 16.2 73 123 18 48
155090.1650 5.7 28 66 6 36 155090.4400 11 55 102 12 45 155090.7150 16.3 73 123 18 48
155090.1700 5.8 28 66 6 36 155090.4450 11.1 55 102 12 45 155090.7200 16.4 73 123 18 48
155090.1750 5.9 28 66 6 36 155090.4500 11.2 55 102 12 45 155090.7250 16.5 73 123 18 48
155090.1800 6 28 66 6 36 155090.4550 11.3 55 102 12 45 155090.7300 16.6 73 123 18 48
155090.1850 6.1 34 79 8 36 155090.4600 11.4 55 102 12 45 155090.7350 16.7 73 123 18 48
155090.1900 6.2 34 79 8 36 155090.4650 11.5 55 102 12 45 155090.7400 16.75 73 123 18 48
155090.1950 6.3 34 79 8 36 155090.4700 11.55 55 102 12 45 155090.7450 16.8 73 123 18 48
155090.2000 6.4 34 79 8 36 155090.4750 11.6 55 102 12 45 155090.7500 17 73 123 18 48
155090.2050 6.5 34 79 8 36 155090.4800 11.7 55 102 12 45 155090.7550 17.2 73 123 18 48
155090.2100 6.6 34 79 8 36 155090.4850 11.8 55 102 12 45 155090.7600 17.3 73 123 18 48
155090.2150 6.7 34 79 8 36 155090.4900 11.9 55 102 12 45 155090.7650 17.5 73 123 18 48
155090.2200 6.8 34 79 8 36 155090.4950 12 55 102 12 45 155090.7700 17.6 73 123 18 48
155090.2250 6.9 34 79 8 36 155090.5000 12.1 60 107 14 45 155090.7750 17.7 73 123 18 48
155090.2300 7 34 79 8 36 155090.5050 12.2 60 107 14 45 155090.7800 17.8 73 123 18 48
155090.2350 7.1 41 79 8 36 155090.5100 12.25 60 107 14 45 155090.7850 18 73 123 18 48
155090.2400 7.2 41 79 8 36 155090.5150 12.3 60 107 14 45 155090.7900 18.2 79 131 20 50
155090.2450 7.3 41 79 8 36 155090.5200 12.4 60 107 14 45 155090.7950 18.5 79 131 20 50
155090.2500 7.4 41 79 8 36 155090.5250 12.5 60 107 14 45 155090.8000 18.7 79 131 20 50
155090.2550 7.5 41 79 8 36 155090.5300 12.6 60 107 14 45 155090.8050 18.8 79 131 20 50
155090.2600 7.55 41 79 8 36 155090.5350 12.7 60 107 14 45 155090.8100 19 79 131 20 50
155090.2650 7.6 41 79 8 36 155090.5400 12.75 60 107 14 45 155090.8150 19.5 79 131 20 50
155090.2700 7.7 41 79 8 36 155090.5450 12.8 60 107 14 45 155090.8200 19.7 79 131 20 50
155090.2750 7.8 41 79 8 36 155090.5500 12.9 60 107 14 45 155090.8250 19.8 79 131 20 50
155090.2800 7.9 41 79 8 36 155090.5550 13 60 107 14 45 155090.8300 20 79 131 20 50
