Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

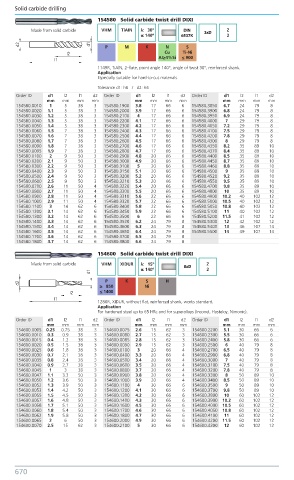

154580 Solid carbide twist drill DIXI

Made from solid carbide VHM TiAIN λ: 30º DIN 3xD Z
α: 140º 6537K 2
P M K N S
Cu Ti-Ni
AI≥4%Si ≤ 900
1149R, TiAlN, 2-flute, point angle 140°, angle of twist 30°, reinforced shank.
Application
Especially suitable for hard-to-cut materials.
Tolerance d1: h6 / d2: h6
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
154580.0010 1 5 38 3 154580.1900 3.8 17 66 6 154580.3850 6.7 24 79 8
154580.0020 1.1 5 38 3 154580.2000 3.9 17 66 6 154580.3900 6.8 24 79 8
154580.0030 1.2 5 38 3 154580.2100 4 17 66 6 154580.3950 6.9 24 79 8
154580.0040 1.3 5 38 3 154580.2200 4.1 17 66 6 154580.4000 7 29 79 8
154580.0050 1.4 5 38 3 154580.2300 4.2 17 66 6 154580.4050 7.2 29 79 8
154580.0060 1.5 7 38 3 154580.2400 4.3 17 66 6 154580.4100 7.5 29 79 8
154580.0070 1.6 7 38 3 154580.2500 4.4 17 66 6 154580.4200 7.8 29 79 8
154580.0080 1.7 7 38 3 154580.2600 4.5 17 66 6 154580.4300 8 29 79 8
154580.0090 1.8 7 38 3 154580.2700 4.6 17 66 6 154580.4350 8.2 35 89 10
154580.0095 1.9 7 38 3 154580.2800 4.7 17 66 6 154580.4370 8.4 35 89 10
154580.0100 2 9 50 3 154580.2900 4.8 20 66 6 154580.4400 8.5 35 89 10
154580.0200 2.1 9 50 3 154580.3000 4.9 20 66 6 154580.4450 8.7 35 89 10
154580.0300 2.2 9 50 3 154580.3100 5 20 66 6 154580.4460 8.8 35 89 10
154580.0400 2.3 9 50 3 154580.3150 5.1 20 66 6 154580.4500 9 35 89 10
154580.0500 2.4 9 50 3 154580.3200 5.2 20 66 6 154580.4520 9.2 35 89 10
154580.0600 2.5 9 50 3 154580.3210 5.3 20 66 6 154580.4550 9.5 35 89 10
154580.0700 2.6 11 50 4 154580.3220 5.4 20 66 6 154580.4700 9.8 35 89 10
154580.0800 2.7 11 50 4 154580.3300 5.5 20 66 6 154580.4800 10 35 89 10
154580.0900 2.8 11 50 4 154580.3310 5.6 22 66 6 154580.4900 10.2 40 102 12
154580.1000 2.9 11 50 4 154580.3320 5.7 22 66 6 154580.5000 10.5 40 102 12
154580.1100 3 14 62 6 154580.3400 5.8 22 66 6 154580.5050 10.8 40 102 12
154580.1200 3.1 14 62 6 154580.3450 5.9 22 66 6 154580.5100 11 40 102 12
154580.1300 3.2 14 62 6 154580.3500 6 22 66 6 154580.5200 11.5 41 102 12
154580.1400 3.3 14 62 6 154580.3520 6.2 24 79 8 154580.5300 12 42 102 12
154580.1500 3.4 14 62 6 154580.3600 6.3 24 79 8 154580.5400 13 46 107 14
154580.1600 3.5 14 62 6 154580.3650 6.4 24 79 8 154580.5500 14 49 107 14
154580.1700 3.6 14 62 6 154580.3700 6.5 24 79 8
154580.1800 3.7 14 62 6 154580.3800 6.6 24 79 8
154600 Solid carbide twist drill DIXI
Made from solid carbide VHM XIDUR λ: 15º 8xD Z
α: 140º 2
P K S H
≥ 850 Ni
≤ 1400
1280R, XIDUR, without flat, reinforced shank, works standard.
Application
For hardened steel up to 65 HRc and for superalloys (Inconel, Hasteloy, Nimonic).
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
154600.0005 0.25 0.75 38 3 154600.0075 2.6 15 62 3 154600.2200 5.1 30 66 6
154600.0010 0.3 0.9 38 3 154600.0080 2.7 15 62 3 154600.2300 5.5 30 66 6
154600.0015 0.4 1.2 38 3 154600.0085 2.8 15 62 3 154600.2400 5.8 30 66 6
154600.0020 0.5 1.5 38 3 154600.0090 2.9 15 62 3 154600.2500 6 40 79 8
154600.0025 0.6 1.8 38 3 154600.0100 3 20 66 4 154600.2700 6.5 40 79 8
154600.0030 0.7 2.1 38 3 154600.0400 3.3 20 66 4 154600.2900 6.8 40 79 8
154600.0035 0.8 2.4 38 3 154600.0500 3.4 20 66 4 154600.3000 7 40 79 8
154600.0040 0.9 2.7 38 3 154600.0600 3.5 20 66 4 154600.3100 7.5 40 79 8
154600.0045 1 3 38 3 154600.0800 3.7 20 66 4 154600.3200 7.8 40 79 8
154600.0047 1.1 3.3 50 3 154600.0900 3.8 20 66 4 154600.3300 8 50 89 10
154600.0050 1.2 3.6 50 3 154600.1000 3.9 20 66 4 154600.3400 8.5 50 89 10
154600.0052 1.3 3.9 50 3 154600.1100 4 30 66 6 154600.3500 9 50 89 10
154600.0053 1.4 4.2 50 3 154600.1200 4.1 30 66 6 154600.3700 9.8 50 89 10
154600.0055 1.5 4.5 50 3 154600.1300 4.2 30 66 6 154600.3800 10 60 102 12
154600.0057 1.6 4.8 50 3 154600.1400 4.3 30 66 6 154600.3900 10.2 60 102 12
154600.0058 1.7 5.1 50 3 154600.1600 4.5 30 66 6 154600.4000 10.5 60 102 12
154600.0060 1.8 5.4 50 3 154600.1700 4.6 30 66 6 154600.4050 10.8 60 102 12
154600.0062 1.9 5.8 50 3 154600.1800 4.7 30 66 6 154600.4100 11 60 102 12
154600.0065 2 6 50 3 154600.2000 4.9 30 66 6 154600.4200 11.5 60 102 12
154600.0070 2.5 15 62 3 154600.2100 5 30 66 6 154600.4300 12 60 102 12
