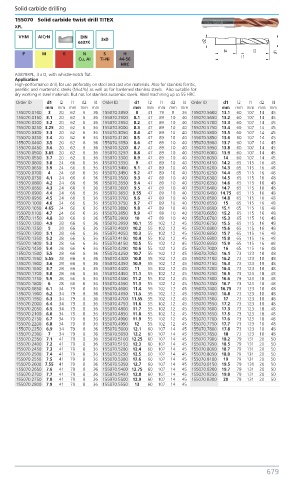

Page 688 - Benma | Blue book 5.0

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 55070 Solid carbide twist drill TITEX
XPL
VHM AlCrN DIN 3xD
6537K
P M K N S H
Cu, AI Ti-Ni 44-56
HRC
A3879XPL, 3 x D, with whistle-notch flat.
Application
High-performance drill, for use preferably on steel and cast iron materials. Also for stainless ferritic,
pearlitic and martensitic steels (NI<4%) as well as for hardened stainless steels. Also suitable for
dry working in steel materials. But not for stainless austenitic steels. Hard machining up to 55 HRC.
Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155070.0100 3 20 62 6 36 155070.2850 8 41 79 8 36 155070.5600 13.1 60 107 14 45
155070.0150 3.1 20 62 6 36 155070.2900 8.1 47 89 10 40 155070.5650 13.2 60 107 14 45
155070.0200 3.2 20 62 6 36 155070.2950 8.2 47 89 10 40 155070.5700 13.3 60 107 14 45
155070.0250 3.25 20 62 6 36 155070.3000 8.3 47 89 10 40 155070.5750 13.4 60 107 14 45
155070.0300 3.3 20 62 6 36 155070.3050 8.4 47 89 10 40 155070.5800 13.5 60 107 14 45
155070.0350 3.4 20 62 6 36 155070.3100 8.5 47 89 10 40 155070.5850 13.6 60 107 14 45
155070.0400 3.5 20 62 6 36 155070.3150 8.6 47 89 10 40 155070.5900 13.7 60 107 14 45
155070.0450 3.6 20 62 6 36 155070.3200 8.7 47 89 10 40 155070.5950 13.8 60 107 14 45
155070.0500 3.65 20 62 6 36 155070.3250 8.8 47 89 10 40 155070.6000 13.9 60 107 14 45
155070.0550 3.7 20 62 6 36 155070.3300 8.9 47 89 10 40 155070.6050 14 60 107 14 45
155070.0600 3.8 24 66 6 36 155070.3350 9 47 89 10 40 155070.6150 14.2 65 115 16 48
155070.0650 3.9 24 66 6 36 155070.3400 9.1 47 89 10 40 155070.6200 14.3 65 115 16 48
155070.0700 4 24 66 6 36 155070.3450 9.2 47 89 10 40 155070.6250 14.4 65 115 16 48
155070.0750 4.1 24 66 6 36 155070.3500 9.3 47 89 10 40 155070.6300 14.5 65 115 16 48
155070.0800 4.2 24 66 6 36 155070.3550 9.4 47 89 10 40 155070.6350 14.6 65 115 16 48
155070.0850 4.3 24 66 6 36 155070.3600 9.5 47 89 10 40 155070.6400 14.7 65 115 16 48
155070.0900 4.4 24 66 6 36 155070.3650 9.55 47 89 10 40 155070.6450 14.75 65 115 16 48
155070.0950 4.5 24 66 6 36 155070.3700 9.6 47 89 10 40 155070.6500 14.8 65 115 16 48
155070.1000 4.6 24 66 6 36 155070.3750 9.7 47 89 10 40 155070.6550 15 65 115 16 48
155070.1050 4.65 24 66 6 36 155070.3800 9.8 47 89 10 40 155070.6600 15.1 65 115 16 48
155070.1100 4.7 24 66 6 36 155070.3850 9.9 47 89 10 40 155070.6650 15.2 65 115 16 48
155070.1150 4.8 28 66 6 36 155070.3900 10 47 89 10 40 155070.6700 15.3 65 115 16 48
155070.1200 4.9 28 66 6 36 155070.3950 10.1 55 102 12 45 155070.6750 15.5 65 115 16 48
155070.1250 5 28 66 6 36 155070.4000 10.2 55 102 12 45 155070.6800 15.6 65 115 16 48
155070.1300 5.1 28 66 6 36 155070.4050 10.3 55 102 12 45 155070.6850 15.7 65 115 16 48
155070.1350 5.2 28 66 6 36 155070.4100 10.4 55 102 12 45 155070.6900 15.8 65 115 16 48
155070.1400 5.3 28 66 6 36 155070.4150 10.5 55 102 12 45 155070.6950 15.9 65 115 16 48
155070.1450 5.4 28 66 6 36 155070.4200 10.6 55 102 12 45 155070.7000 16 65 115 16 48
155070.1500 5.5 28 66 6 36 155070.4250 10.7 55 102 12 45 155070.7050 16.1 73 123 18 48
155070.1550 5.55 28 66 6 36 155070.4300 10.8 55 102 12 45 155070.7100 16.2 73 123 18 48
155070.1600 5.6 28 66 6 36 155070.4350 10.9 55 102 12 45 155070.7150 16.3 73 123 18 48
155070.1650 5.7 28 66 6 36 155070.4400 11 55 102 12 45 155070.7200 16.4 73 123 18 48
155070.1700 5.8 28 66 6 36 155070.4450 11.1 55 102 12 45 155070.7250 16.5 73 123 18 48
155070.1750 5.9 28 66 6 36 155070.4500 11.2 55 102 12 45 155070.7300 16.6 73 123 18 48
155070.1800 6 28 66 6 36 155070.4550 11.3 55 102 12 45 155070.7350 16.7 73 123 18 48
155070.1850 6.1 34 79 8 36 155070.4600 11.4 55 102 12 45 155070.7400 16.75 73 123 18 48
155070.1900 6.2 34 79 8 36 155070.4650 11.5 55 102 12 45 155070.7450 16.8 73 123 18 48
155070.1950 6.3 34 79 8 36 155070.4700 11.55 55 102 12 45 155070.7500 17 73 123 18 48
155070.2000 6.4 34 79 8 36 155070.4750 11.6 55 102 12 45 155070.7550 17.2 73 123 18 48
155070.2050 6.5 34 79 8 36 155070.4800 11.7 55 102 12 45 155070.7600 17.3 73 123 18 48
155070.2100 6.6 34 79 8 36 155070.4850 11.8 55 102 12 45 155070.7650 17.5 73 123 18 48
155070.2150 6.7 34 79 8 36 155070.4900 11.9 55 102 12 45 155070.7700 17.6 73 123 18 48
155070.2200 6.8 34 79 8 36 155070.4950 12 55 102 12 45 155070.7750 17.7 73 123 18 48
155070.2250 6.9 34 79 8 36 155070.5000 12.1 60 107 14 45 155070.7800 17.8 73 123 18 48
155070.2300 7 34 79 8 36 155070.5050 12.2 60 107 14 45 155070.7850 18 73 123 18 48
155070.2350 7.1 41 79 8 36 155070.5100 12.25 60 107 14 45 155070.7900 18.2 79 131 20 50
155070.2400 7.2 41 79 8 36 155070.5150 12.3 60 107 14 45 155070.7950 18.5 79 131 20 50
155070.2450 7.3 41 79 8 36 155070.5200 12.4 60 107 14 45 155070.8000 18.7 79 131 20 50
155070.2500 7.4 41 79 8 36 155070.5250 12.5 60 107 14 45 155070.8050 18.8 79 131 20 50
155070.2550 7.5 41 79 8 36 155070.5300 12.6 60 107 14 45 155070.8100 19 79 131 20 50
155070.2600 7.55 41 79 8 36 155070.5350 12.7 60 107 14 45 155070.8150 19.5 79 131 20 50
155070.2650 7.6 41 79 8 36 155070.5400 12.75 60 107 14 45 155070.8200 19.7 79 131 20 50
155070.2700 7.7 41 79 8 36 155070.5450 12.8 60 107 14 45 155070.8250 19.8 79 131 20 50
155070.2750 7.8 41 79 8 36 155070.5500 12.9 60 107 14 45 155070.8300 20 79 131 20 50
155070.2800 7.9 41 79 8 36 155070.5550 13 60 107 14 45
