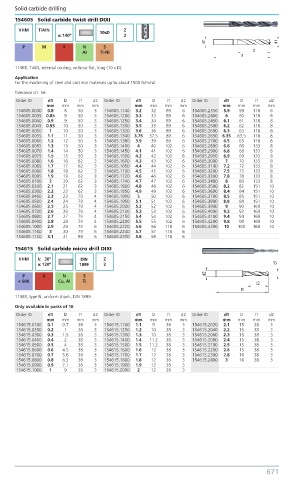

Page 680 - Benma | Blue book 5.0

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
154605 Solid carbide twist drill DIXI

VHM TiAIN 10xD Z
α: 140º 2
P M K N S
AI Ti-Ni

1146R, TiAlN, internal cooling, without flat, long (10 x D).
Application
For the machining of steel and cast iron materials up to about 1500 N/mm2.
Tolerance d1: h6
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
154605.0030 0.8 8 50 3 154605.1140 3.2 32 89 6 154605.2350 5.9 59 118 6
154605.0035 0.85 9 50 3 154605.1200 3.3 33 89 6 154605.2400 6 60 118 6
154605.0040 0.9 9 50 3 154605.1250 3.4 34 89 6 154605.2450 6.1 61 118 8
154605.0045 0.95 10 50 3 154605.1300 3.5 35 89 6 154605.2500 6.2 62 118 8
154605.0050 1 10 50 3 154605.1320 3.6 36 89 6 154605.2600 6.3 63 118 8
154605.0055 1.1 11 50 3 154605.1340 3.75 37.5 89 6 154605.2650 6.35 63.5 118 8
154605.0060 1.2 12 50 3 154605.1380 3.9 39 89 6 154605.2700 6.5 65 118 8
154605.0065 1.3 13 50 3 154605.1400 4 40 102 6 154605.2800 6.6 66 133 8
154605.0070 1.4 14 50 3 154605.1450 4.1 41 102 6 154605.2900 6.8 68 133 8
154605.0075 1.5 15 50 3 154605.1500 4.2 42 102 6 154605.2950 6.9 69 133 8
154605.0080 1.6 16 62 3 154605.1600 4.3 43 102 6 154605.3000 7 70 133 8
154605.0085 1.7 17 62 3 154605.1650 4.4 44 102 6 154605.3100 7.2 72 133 8
154605.0090 1.8 18 62 3 154605.1700 4.5 45 102 6 154605.3200 7.5 75 133 8
154605.0095 1.9 19 62 3 154605.1720 4.6 46 102 6 154605.3300 7.8 78 133 8
154605.0100 2 20 62 3 154605.1740 4.7 47 102 6 154605.3400 8 80 133 8
154605.0200 2.1 21 62 3 154605.1800 4.8 48 102 6 154605.3500 8.2 82 151 10
154605.0300 2.2 22 62 3 154605.1850 4.9 49 102 6 154605.3600 8.4 84 151 10
154605.0400 2.3 23 79 4 154605.1900 5 50 102 6 154605.3700 8.5 85 151 10
154605.0500 2.4 24 79 4 154605.1950 5.1 51 102 6 154605.3800 8.8 88 151 10
154605.0600 2.5 25 79 4 154605.2000 5.2 52 102 6 154605.3900 9 90 160 10
154605.0700 2.6 26 79 4 154605.2100 5.3 53 102 6 154605.4000 9.2 92 160 10
154605.0800 2.7 27 79 4 154605.2150 5.4 54 102 6 154605.4100 9.4 94 160 10
154605.0900 2.8 28 79 4 154605.2200 5.5 55 102 6 154605.4200 9.8 98 160 10
154605.1000 2.9 29 79 6 154605.2220 5.6 56 118 6 154605.4300 10 100 160 10
154605.1100 3 30 79 6 154605.2240 5.7 57 118 6
154605.1120 3.1 31 89 6 154605.2300 5.8 58 118 6
154615 Solid carbide micro drill DIXI

VHM λ: 30º DIN Z
α: 120º 1899 2
P K N S
≤ 600 Cu, AI Ti

1138R, type N, uniform shank, DIN 1899.
Only available in packs of 10.
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
154615.0100 0.1 0.7 38 3 154615.1100 1.1 9 38 3 154615.2020 2.1 15 38 3
154615.0200 0.2 1 38 3 154615.1200 1.2 10 38 3 154615.2040 2.2 15 38 3
154615.0300 0.3 1.5 38 3 154615.1300 1.3 10 38 3 154615.2060 2.3 15 38 3
154615.0400 0.4 2 38 3 154615.1400 1.4 11.2 38 3 154615.2080 2.4 15 38 3
154615.0500 0.5 4 38 3 154615.1500 1.5 11.2 38 3 154615.2100 2.5 15 38 3
154615.0600 0.6 4.5 38 3 154615.1600 1.6 12 38 3 154615.2200 2.6 15 38 3
154615.0700 0.7 5.6 38 3 154615.1700 1.7 12 38 3 154615.2300 2.8 16 38 3
154615.0800 0.8 6.3 38 3 154615.1800 1.8 12 38 3 154615.2400 3 16 38 3
154615.0900 0.9 7.1 38 3 154615.1900 1.9 12 38 3
154615.1000 1 9 38 3 154615.2000 2 12 38 3

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 671
