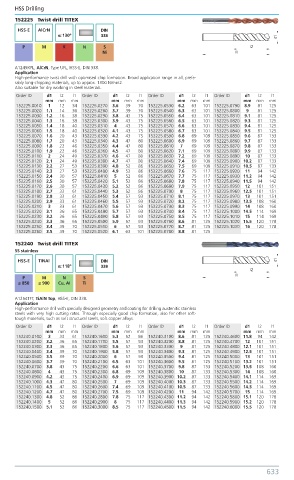

Page 642 - Benma | Blue book 5.0

HSS Drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
152225 Twist drill TITEX

HSS-E AlCrN DIN
α: 130º 338
P M K N S
Ni

A1249XPL, AlCrN, Type UFL, HSS-E, DIN 338.
Application
High-performance twist drill with optimised chip formation. Broad application range in all, prefe-
rably long-chipping materials, up to approx. 1300 N/mm2.
Also suitable for dry working in steel materials.
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
152225.0010 1 12 34 152225.0270 3.6 39 70 152225.0530 6.2 63 101 152225.0790 8.9 81 125
152225.0020 1.1 14 36 152225.0280 3.7 39 70 152225.0540 6.3 63 101 152225.0800 9 81 125
152225.0030 1.2 16 38 152225.0290 3.8 43 75 152225.0550 6.4 63 101 152225.0810 9.1 81 125
152225.0040 1.3 16 38 152225.0300 3.9 43 75 152225.0560 6.5 63 101 152225.0820 9.3 81 125
152225.0050 1.4 18 40 152225.0310 4 43 75 152225.0570 6.6 63 101 152225.0830 9.4 81 125
152225.0060 1.5 18 40 152225.0320 4.1 43 75 152225.0580 6.7 63 101 152225.0840 9.5 81 125
152225.0070 1.6 20 43 152225.0330 4.2 43 75 152225.0590 6.8 69 109 152225.0850 9.6 87 133
152225.0080 1.7 20 43 152225.0340 4.3 47 80 152225.0600 6.9 69 109 152225.0860 9.7 87 133
152225.0090 1.8 22 46 152225.0350 4.4 47 80 152225.0610 7 69 109 152225.0870 9.8 87 133
152225.0100 1.9 22 46 152225.0360 4.5 47 80 152225.0620 7.1 69 109 152225.0880 9.9 87 133
152225.0110 2 24 49 152225.0370 4.6 47 80 152225.0630 7.2 69 109 152225.0890 10 87 133
152225.0120 2.1 24 49 152225.0380 4.7 47 80 152225.0640 7.4 69 109 152225.0900 10.2 87 133
152225.0130 2.2 27 53 152225.0390 4.8 52 86 152225.0650 7.5 69 109 152225.0910 10.5 87 133
152225.0140 2.3 27 53 152225.0400 4.9 52 86 152225.0660 7.6 75 117 152225.0920 11 94 142
152225.0150 2.4 30 57 152225.0410 5 52 86 152225.0670 7.7 75 117 152225.0930 11.2 94 142
152225.0160 2.5 30 57 152225.0420 5.1 52 86 152225.0680 7.8 75 117 152225.0940 11.5 94 142
152225.0170 2.6 30 57 152225.0430 5.2 52 86 152225.0690 7.9 75 117 152225.0950 12 101 151
152225.0180 2.7 33 61 152225.0440 5.3 52 86 152225.0700 8 75 117 152225.0960 12.5 101 151
152225.0190 2.8 33 61 152225.0450 5.4 57 93 152225.0710 8.1 75 117 152225.0970 13 101 151
152225.0200 2.9 33 61 152225.0460 5.5 57 93 152225.0720 8.2 75 117 152225.0980 13.5 108 160
152225.0210 3 33 61 152225.0470 5.6 57 93 152225.0730 8.3 75 117 152225.0990 14 108 160
152225.0220 3.1 36 65 152225.0480 5.7 57 93 152225.0740 8.4 75 117 152225.1000 14.5 114 169
152225.0230 3.2 36 65 152225.0490 5.8 57 93 152225.0750 8.5 75 117 152225.1010 15 114 169
152225.0240 3.3 36 65 152225.0500 5.9 57 93 152225.0760 8.6 81 125 152225.1020 15.5 120 178
152225.0250 3.4 39 70 152225.0510 6 57 93 152225.0770 8.7 81 125 152225.1030 16 120 178
152225.0260 3.5 39 70 152225.0520 6.1 63 101 152225.0780 8.8 81 125
152240 Twist drill TITEX
SS stainless
HSS-E TiNAl DIN
α: 118º 338
P M N S
≤ 850 ≤ 900 Cu, AI Ti

A1254TFT, TiAlN Top, HSS-E, DIN 338.
Application
High-performance drill with specially designed geometry and coating for drilling austenitic stainless
steels with very high cutting rates. Through especially good chip formation, also for other soft-
tough materials, such as soft structural steels, soft copper alloys.
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
152240.0100 3 33 61 152240.1600 5.3 52 86 152240.3100 8.6 81 125 152240.4600 11.8 94 142
152240.0200 3.2 36 65 152240.1700 5.5 57 93 152240.3200 8.8 81 125 152240.4700 12 101 151
152240.0300 3.3 36 65 152240.1800 5.6 57 93 152240.3300 9 81 125 152240.4800 12.1 101 151
152240.0400 3.4 39 70 152240.1900 5.8 57 93 152240.3400 9.3 81 125 152240.4900 12.5 101 151
152240.0500 3.5 39 70 152240.2000 6 57 93 152240.3500 9.4 81 125 152240.5000 13 101 151
152240.0600 3.7 39 70 152240.2100 6.5 63 101 152240.3600 9.5 81 125 152240.5100 13.2 101 151
152240.0700 3.8 43 75 152240.2200 6.6 63 101 152240.3700 9.8 87 133 152240.5200 13.5 108 160
152240.0800 4 43 75 152240.2300 6.8 69 109 152240.3800 10 87 133 152240.5300 14 108 160
152240.0900 4.2 43 75 152240.2400 6.9 69 109 152240.3900 10.2 87 133 152240.5400 14.1 114 169
152240.1000 4.3 47 80 152240.2500 7 69 109 152240.4000 10.3 87 133 152240.5500 14.2 114 169
152240.1100 4.5 47 80 152240.2600 7.4 69 109 152240.4100 10.5 87 133 152240.5600 14.5 114 169
152240.1200 4.7 47 80 152240.2700 7.5 69 109 152240.4200 11 94 142 152240.5700 15 114 169
152240.1300 4.8 52 86 152240.2800 7.8 75 117 152240.4300 11.2 94 142 152240.5800 15.1 120 178
152240.1400 5 52 86 152240.2900 8 75 117 152240.4400 11.3 94 142 152240.5900 15.2 120 178
152240.1500 5.1 52 86 152240.3000 8.5 75 117 152240.4500 11.5 94 142 152240.6000 15.5 120 178

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 633
