HSS Drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

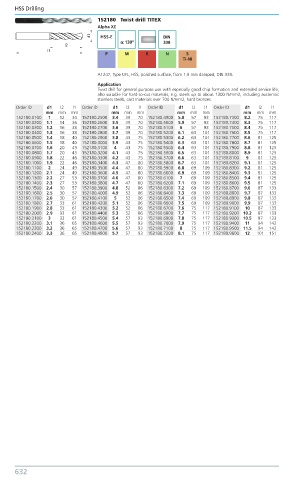

152180 Twist drill TITEX
Alpha XE
HSS-E DIN
α: 130º 338
P M K N S
Ti-Ni

A1247, Type UFL, HSS, polished surface; from 1.9 mm damped; DIN 338.
Application
Twist drill for general purpose use with especially good chip formation and extended service life;
also suitable for hard-to-cut materials, e.g. steels up to about 1300 N/mm2, including austenitic
stainless steels, cast materials over 700 N/mm2, hard bronzes.
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
152180.0100 1 12 34 152180.2500 3.4 39 70 152180.4900 5.8 57 93 152180.7300 8.2 75 117
152180.0200 1.1 14 36 152180.2600 3.5 39 70 152180.5000 5.9 57 93 152180.7400 8.3 75 117
152180.0300 1.2 16 38 152180.2700 3.6 39 70 152180.5100 6 57 93 152180.7500 8.4 75 117
152180.0400 1.3 16 38 152180.2800 3.7 39 70 152180.5200 6.1 63 101 152180.7600 8.5 75 117
152180.0500 1.4 18 40 152180.2900 3.8 43 75 152180.5300 6.2 63 101 152180.7700 8.6 81 125
152180.0600 1.5 18 40 152180.3000 3.9 43 75 152180.5400 6.3 63 101 152180.7800 8.7 81 125
152180.0700 1.6 20 43 152180.3100 4 43 75 152180.5500 6.4 63 101 152180.7900 8.8 81 125
152180.0800 1.7 20 43 152180.3200 4.1 43 75 152180.5600 6.5 63 101 152180.8000 8.9 81 125
152180.0900 1.8 22 46 152180.3300 4.2 43 75 152180.5700 6.6 63 101 152180.8100 9 81 125
152180.1000 1.9 22 46 152180.3400 4.3 47 80 152180.5800 6.7 63 101 152180.8200 9.1 81 125
152180.1100 2 24 49 152180.3500 4.4 47 80 152180.5900 6.8 69 109 152180.8300 9.2 81 125
152180.1200 2.1 24 49 152180.3600 4.5 47 80 152180.6000 6.9 69 109 152180.8400 9.3 81 125
152180.1300 2.2 27 53 152180.3700 4.6 47 80 152180.6100 7 69 109 152180.8500 9.4 81 125
152180.1400 2.3 27 53 152180.3800 4.7 47 80 152180.6200 7.1 69 109 152180.8600 9.5 81 125
152180.1500 2.4 30 57 152180.3900 4.8 52 86 152180.6300 7.2 69 109 152180.8700 9.6 87 133
152180.1600 2.5 30 57 152180.4000 4.9 52 86 152180.6400 7.3 69 109 152180.8800 9.7 87 133
152180.1700 2.6 30 57 152180.4100 5 52 86 152180.6500 7.4 69 109 152180.8900 9.8 87 133
152180.1800 2.7 33 61 152180.4200 5.1 52 86 152180.6600 7.5 69 109 152180.9000 9.9 87 133
152180.1900 2.8 33 61 152180.4300 5.2 52 86 152180.6700 7.6 75 117 152180.9100 10 87 133
152180.2000 2.9 33 61 152180.4400 5.3 52 86 152180.6800 7.7 75 117 152180.9200 10.2 87 133
152180.2100 3 33 61 152180.4500 5.4 57 93 152180.6900 7.8 75 117 152180.9300 10.5 87 133
152180.2200 3.1 36 65 152180.4600 5.5 57 93 152180.7000 7.9 75 117 152180.9400 11 94 142
152180.2300 3.2 36 65 152180.4700 5.6 57 93 152180.7100 8 75 117 152180.9500 11.5 94 142
152180.2400 3.3 36 65 152180.4800 5.7 57 93 152180.7200 8.1 75 117 152180.9600 12 101 151
