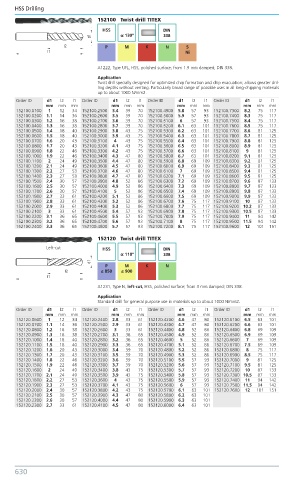

HSS Drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
152100 Twist drill TITEX

HSS DIN
α: 130º 338
P M K N S
Ni

A1222, Type UFL, HSS, polished surface; from 1.9 mm damped; DIN 338.
Application
Twist drill specially designed for optimized chip formation and chip evacuation; allows greater dril-
ling depths without venting. Particularly broad range of possible uses in all long-chipping materials
up to about 1000 N/mm2.
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
152100.0100 1 12 34 152100.2500 3.4 39 70 152100.4900 5.8 57 93 152100.7300 8.2 75 117
152100.0200 1.1 14 36 152100.2600 3.5 39 70 152100.5000 5.9 57 93 152100.7400 8.3 75 117
152100.0300 1.2 16 38 152100.2700 3.6 39 70 152100.5100 6 57 93 152100.7500 8.4 75 117
152100.0400 1.3 16 38 152100.2800 3.7 39 70 152100.5200 6.1 63 101 152100.7600 8.5 75 117
152100.0500 1.4 18 40 152100.2900 3.8 43 75 152100.5300 6.2 63 101 152100.7700 8.6 81 125
152100.0600 1.5 18 40 152100.3000 3.9 43 75 152100.5400 6.3 63 101 152100.7800 8.7 81 125
152100.0700 1.6 20 43 152100.3100 4 43 75 152100.5500 6.4 63 101 152100.7900 8.8 81 125
152100.0800 1.7 20 43 152100.3200 4.1 43 75 152100.5600 6.5 63 101 152100.8000 8.9 81 125
152100.0900 1.8 22 46 152100.3300 4.2 43 75 152100.5700 6.6 63 101 152100.8100 9 81 125
152100.1000 1.9 22 46 152100.3400 4.3 47 80 152100.5800 6.7 63 101 152100.8200 9.1 81 125
152100.1100 2 24 49 152100.3500 4.4 47 80 152100.5900 6.8 69 109 152100.8300 9.2 81 125
152100.1200 2.1 24 49 152100.3600 4.5 47 80 152100.6000 6.9 69 109 152100.8400 9.3 81 125
152100.1300 2.2 27 53 152100.3700 4.6 47 80 152100.6100 7 69 109 152100.8500 9.4 81 125
152100.1400 2.3 27 53 152100.3800 4.7 47 80 152100.6200 7.1 69 109 152100.8600 9.5 81 125
152100.1500 2.4 30 57 152100.3900 4.8 52 86 152100.6300 7.2 69 109 152100.8700 9.6 87 133
152100.1600 2.5 30 57 152100.4000 4.9 52 86 152100.6400 7.3 69 109 152100.8800 9.7 87 133
152100.1700 2.6 30 57 152100.4100 5 52 86 152100.6500 7.4 69 109 152100.8900 9.8 87 133
152100.1800 2.7 33 61 152100.4200 5.1 52 86 152100.6600 7.5 69 109 152100.9000 9.9 87 133
152100.1900 2.8 33 61 152100.4300 5.2 52 86 152100.6700 7.6 75 117 152100.9100 10 87 133
152100.2000 2.9 33 61 152100.4400 5.3 52 86 152100.6800 7.7 75 117 152100.9200 10.2 87 133
152100.2100 3 33 61 152100.4500 5.4 57 93 152100.6900 7.8 75 117 152100.9300 10.5 87 133
152100.2200 3.1 36 65 152100.4600 5.5 57 93 152100.7000 7.9 75 117 152100.9400 11 94 142
152100.2300 3.2 36 65 152100.4700 5.6 57 93 152100.7100 8 75 117 152100.9500 11.5 94 142
152100.2400 3.3 36 65 152100.4800 5.7 57 93 152100.7200 8.1 75 117 152100.9600 12 101 151
152120 Twist drill TITEX
Left-cut HSS DIN
α: 118º 338

P M K N
≤ 850 ≤ 900

A1231, Type N, left-cut, HSS, polished surface; from 3 mm damped; DIN 338.
Application
Standard drill for general purpose use in materials up to about 1000 N/mm2.
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
152120.0600 1 12 34 152120.2400 2.8 33 61 152120.4200 4.6 47 80 152120.6100 6.5 63 101
152120.0700 1.1 14 36 152120.2500 2.9 33 61 152120.4300 4.7 47 80 152120.6200 6.6 63 101
152120.0800 1.2 16 38 152120.2600 3 33 61 152120.4400 4.8 52 86 152120.6400 6.8 69 109
152120.0900 1.3 16 38 152120.2700 3.1 36 65 152120.4500 4.9 52 86 152120.6500 6.9 69 109
152120.1000 1.4 18 40 152120.2800 3.2 36 65 152120.4600 5 52 86 152120.6600 7 69 109
152120.1100 1.5 18 40 152120.2900 3.3 36 65 152120.4700 5.1 52 86 152120.6700 7.5 69 109
152120.1200 1.6 20 43 152120.3000 3.4 39 70 152120.4800 5.2 52 86 152120.6800 8 75 117
152120.1300 1.7 20 43 152120.3100 3.5 39 70 152120.4900 5.3 52 86 152120.6900 8.5 75 117
152120.1400 1.8 22 46 152120.3200 3.6 39 70 152120.5100 5.5 57 93 152120.7000 9 81 125
152120.1500 1.9 22 46 152120.3300 3.7 39 70 152120.5200 5.6 57 93 152120.7100 9.5 81 125
152120.1600 2 24 49 152120.3400 3.8 43 75 152120.5300 5.7 57 93 152120.7200 10 87 133
152120.1700 2.1 24 49 152120.3500 3.9 43 75 152120.5400 5.8 57 93 152120.7300 10.5 87 133
152120.1800 2.2 27 53 152120.3600 4 43 75 152120.5500 5.9 57 93 152120.7400 11 94 142
152120.1900 2.3 27 53 152120.3700 4.1 43 75 152120.5600 6 57 93 152120.7500 11.5 94 142
152120.2000 2.4 30 57 152120.3800 4.2 43 75 152120.5700 6.1 63 101 152120.7600 12 101 151
152120.2100 2.5 30 57 152120.3900 4.3 47 80 152120.5800 6.2 63 101
152120.2200 2.6 30 57 152120.4000 4.4 47 80 152120.5900 6.3 63 101
152120.2300 2.7 33 61 152120.4100 4.5 47 80 152120.6000 6.4 63 101
