HSS Drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

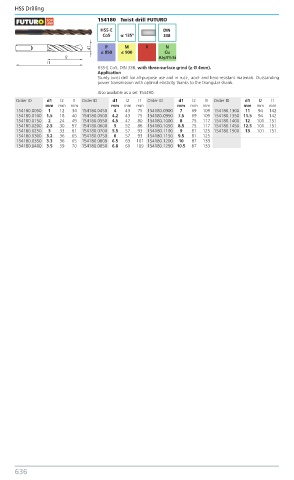

154180 Twist drill FUTURO

HSS-E DIN
Co5 α: 135º 338
P M K N
≤ 850 ≤ 900 Cu
AI≤4%Si
HSS-E Co5, DIN 338, with three-surface grind (≥ Ø 4mm).
Application
Sturdy twist drill for all-purpose use and in rust-, acid- and heat-resistant materials. Outstanding
power transmission with optimal elasticity thanks to the triangular shank.
Also available as a set 154490.
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
154180.0050 1 12 34 154180.0450 4 43 75 154180.0900 7 69 109 154180.1300 11 94 142
154180.0100 1.5 18 40 154180.0500 4.2 43 75 154180.0950 7.5 69 109 154180.1350 11.5 94 142
154180.0150 2 24 49 154180.0550 4.5 47 80 154180.1000 8 75 117 154180.1400 12 101 151
154180.0200 2.5 30 57 154180.0600 5 52 86 154180.1050 8.5 75 117 154180.1450 12.5 101 151
154180.0250 3 33 61 154180.0700 5.5 57 93 154180.1100 9 81 125 154180.1500 13 101 151
154180.0300 3.2 36 65 154180.0750 6 57 93 154180.1150 9.5 81 125
154180.0350 3.3 36 65 154180.0800 6.5 63 101 154180.1200 10 87 133
154180.0400 3.5 39 70 154180.0850 6.8 69 109 154180.1250 10.5 87 133
