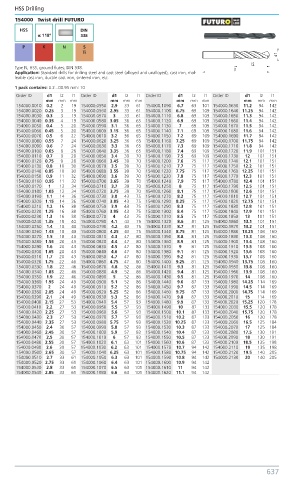

Page 646 - Benma | Blue book 5.0

HSS Drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
154000 Twist drill FUTURO

HSS DIN
α: 118º 338
P K N S
Ti

Type N, HSS, ground flutes; DIN 338.
Application: Standard drills for drilling steel and cast steel (alloyed and unalloyed), cast iron, mal-
leable cast iron, ductile cast iron, sintered iron, etc.
1 pack contains: 0.2...00.95 mm: 10
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
154000.0010 0.2 2 19 154000.0550 2.9 33 61 154000.1090 6.7 63 101 154000.1630 11.2 94 142
154000.0020 0.25 3 19 154000.0560 2.95 33 61 154000.1100 6.75 69 109 154000.1640 11.25 94 142
154000.0030 0.3 3 19 154000.0570 3 33 61 154000.1110 6.8 69 109 154000.1650 11.3 94 142
154000.0040 0.35 4 19 154000.0580 3.05 36 65 154000.1120 6.9 69 109 154000.1660 11.4 94 142
154000.0050 0.4 5 20 154000.0590 3.1 36 65 154000.1130 7 69 109 154000.1670 11.5 94 142
154000.0060 0.45 5 20 154000.0600 3.15 36 65 154000.1140 7.1 69 109 154000.1680 11.6 94 142
154000.0070 0.5 6 22 154000.0610 3.2 36 65 154000.1150 7.2 69 109 154000.1690 11.7 94 142
154000.0080 0.55 7 24 154000.0620 3.25 36 65 154000.1160 7.25 69 109 154000.1700 11.75 94 142
154000.0090 0.6 7 24 154000.0630 3.3 36 65 154000.1170 7.3 69 109 154000.1710 11.8 94 142
154000.0100 0.65 8 26 154000.0640 3.35 36 65 154000.1180 7.4 69 109 154000.1720 11.9 101 151
154000.0110 0.7 9 28 154000.0650 3.4 39 70 154000.1190 7.5 69 109 154000.1730 12 101 151
154000.0120 0.75 9 28 154000.0660 3.45 39 70 154000.1200 7.6 75 117 154000.1740 12.1 101 151
154000.0130 0.8 10 30 154000.0670 3.5 39 70 154000.1210 7.7 75 117 154000.1750 12.2 101 151
154000.0140 0.85 10 30 154000.0680 3.55 39 70 154000.1220 7.75 75 117 154000.1760 12.25 101 151
154000.0150 0.9 11 32 154000.0690 3.6 39 70 154000.1230 7.8 75 117 154000.1770 12.3 101 151
154000.0160 0.95 11 32 154000.0700 3.65 39 70 154000.1240 7.9 75 117 154000.1780 12.4 101 151
154000.0170 1 12 34 154000.0710 3.7 39 70 154000.1250 8 75 117 154000.1790 12.5 101 151
154000.0180 1.05 12 34 154000.0720 3.75 39 70 154000.1260 8.1 75 117 154000.1800 12.6 101 151
154000.0190 1.1 14 36 154000.0730 3.8 43 75 154000.1270 8.2 75 117 154000.1810 12.7 101 151
154000.0200 1.15 14 36 154000.0740 3.85 43 75 154000.1280 8.25 75 117 154000.1820 12.75 101 151
154000.0210 1.2 16 38 154000.0750 3.9 43 75 154000.1290 8.3 75 117 154000.1830 12.8 101 151
154000.0220 1.25 16 38 154000.0760 3.95 43 75 154000.1300 8.4 75 117 154000.1840 12.9 101 151
154000.0230 1.3 16 38 154000.0770 4 43 75 154000.1310 8.5 75 117 154000.1850 13 101 151
154000.0240 1.35 18 40 154000.0780 4.1 43 75 154000.1320 8.6 81 125 154000.1860 13.1 101 151
154000.0250 1.4 18 40 154000.0790 4.2 43 75 154000.1330 8.7 81 125 154000.1870 13.2 101 151
154000.0260 1.45 18 40 154000.0800 4.25 43 75 154000.1340 8.75 81 125 154000.1880 13.25 108 160
154000.0270 1.5 18 40 154000.0810 4.3 47 80 154000.1350 8.8 81 125 154000.1890 13.3 108 160
154000.0280 1.55 20 43 154000.0820 4.4 47 80 154000.1360 8.9 81 125 154000.1900 13.4 108 160
154000.0290 1.6 20 43 154000.0830 4.5 47 80 154000.1370 9 81 125 154000.1910 13.5 108 160
154000.0300 1.65 20 43 154000.0840 4.6 47 80 154000.1380 9.1 81 125 154000.1920 13.6 108 160
154000.0310 1.7 20 43 154000.0850 4.7 47 80 154000.1390 9.2 81 125 154000.1930 13.7 108 160
154000.0320 1.75 22 46 154000.0860 4.75 47 80 154000.1400 9.25 81 125 154000.1940 13.75 108 160
154000.0330 1.8 22 46 154000.0870 4.8 52 86 154000.1410 9.3 81 125 154000.1950 13.8 108 160
154000.0340 1.85 22 46 154000.0880 4.9 52 86 154000.1420 9.4 81 125 154000.1960 13.9 108 160
154000.0350 1.9 22 46 154000.0890 5 52 86 154000.1430 9.5 81 125 154000.1970 14 108 160
154000.0360 1.95 24 49 154000.0900 5.1 52 86 154000.1440 9.6 87 133 154000.1980 14.25 114 169
154000.0370 2 24 49 154000.0910 5.2 52 86 154000.1450 9.7 87 133 154000.1990 14.5 114 169
154000.0380 2.05 24 49 154000.0920 5.25 52 86 154000.1460 9.75 87 133 154000.2000 14.75 114 169
154000.0390 2.1 24 49 154000.0930 5.3 52 86 154000.1470 9.8 87 133 154000.2010 15 114 169
154000.0400 2.15 27 53 154000.0940 5.4 57 93 154000.1480 9.9 87 133 154000.2020 15.25 120 178
154000.0410 2.2 27 53 154000.0950 5.5 57 93 154000.1490 10 87 133 154000.2030 15.5 120 178
154000.0420 2.25 27 53 154000.0960 5.6 57 93 154000.1500 10.1 87 133 154000.2040 15.75 120 178
154000.0430 2.3 27 53 154000.0970 5.7 57 93 154000.1510 10.2 87 133 154000.2050 16 120 178
154000.0440 2.35 27 53 154000.0980 5.75 57 93 154000.1520 10.25 87 133 154000.2060 16.5 125 184
154000.0450 2.4 30 57 154000.0990 5.8 57 93 154000.1530 10.3 87 133 154000.2070 17 125 184
154000.0460 2.45 30 57 154000.1000 5.9 57 93 154000.1540 10.4 87 133 154000.2080 17.5 130 191
154000.0470 2.5 30 57 154000.1010 6 57 93 154000.1550 10.5 87 133 154000.2090 18 130 191
154000.0480 2.55 30 57 154000.1020 6.1 63 101 154000.1560 10.6 87 133 154000.2100 18.5 135 198
154000.0490 2.6 30 57 154000.1030 6.2 63 101 154000.1570 10.7 94 142 154000.2110 19 135 198
154000.0500 2.65 30 57 154000.1040 6.25 63 101 154000.1580 10.75 94 142 154000.2120 19.5 140 205
154000.0510 2.7 33 61 154000.1050 6.3 63 101 154000.1590 10.8 94 142 154000.2130 20 140 205
154000.0520 2.75 33 61 154000.1060 6.4 63 101 154000.1600 10.9 94 142
154000.0530 2.8 33 61 154000.1070 6.5 63 101 154000.1610 11 94 142
154000.0540 2.85 33 61 154000.1080 6.6 63 101 154000.1620 11.1 94 142

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 637
