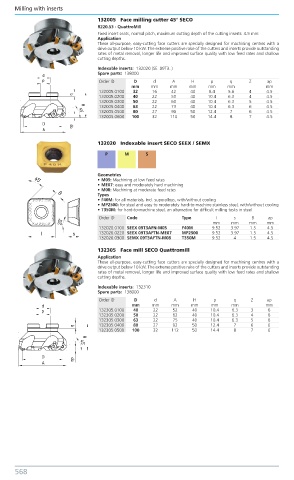

Milling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
132005 Face milling cutter 45° SECO
R220.53 - QuattroMill
Fixed insert seats, normal pitch, maximum cutting depth of the cutting inserts: 4.5 mm:
Application
These all-purpose, easy-cutting face cutters are specially designed for machining centres with a
drive output below 10 kW. The extreme positive rake of the cutters and inserts provide outstanding
rates of metal removal, longer life and improved surface quality with low feed rates and shallow
cutting depths.
Indexable inserts: 132020 (SE..09T3..)
Spare parts: 138000
Order ID D d A H p q Z ap
mm mm mm mm mm mm mm
132005.0100 32 16 42 40 8.4 5.6 4 4.5
132005.0200 40 22 50 40 10.4 6.3 4 4.5
132005.0300 50 22 60 40 10.4 6.3 5 4.5
132005.0400 63 22 73 40 10.4 6.3 6 4.5
132005.0500 80 27 90 50 12.4 7 6 4.5
132005.0600 100 32 110 50 14.4 8 7 4.5

132020 Indexable insert SECO SEEX / SEMX
P M S

Geometries
• M05: Machining at low feed rates
• ME07: easy and moderately hard machining
• M08: Machining at moderate feed rates
Types
• F40M: for all materials, incl. superalloys, with/without cooling
• MP2500: for steel and easy to moderately hard-to-machine stainless steel, with/without cooling
• T350M: for hard-to-machine steel, an alternative for difficult milling tasks in steel
Order ID Code Type I s B ap
mm mm mm mm
132020.0100 SEEX 09T3AFN-M05 F40M 9.52 3.97 1.5 4.5
132020.0220 SEEX 09T3AFTN-ME07 MP2500 9.52 3.97 1.5 4.5
132020.0300 SEMX 09T3AFTN-M08 T350M 9.52 4 1.5 4.5

132305 Face mill SECO Quattromill
Application
These all-purpose, easy-cutting face cutters are specially designed for machining centres with a
drive output below 10 kW. The extreme positive rake of the cutters and inserts provide outstanding
rates of metal removal, longer life and improved surface quality with low feed rates and shallow
cutting depths.
Indexable inserts: 132310
Spare parts: 138000
Order ID D d A H p q Z ap
mm mm mm mm mm mm mm
132305.0100 40 22 52 40 10.4 6.3 3 6
132305.0200 50 22 62 40 10.4 6.3 4 6
132305.0300 63 22 75 40 10.4 6.3 5 6
132305.0400 80 27 92 50 12.4 7 6 6
132305.0500 100 32 112 50 14.4 8 7 6
