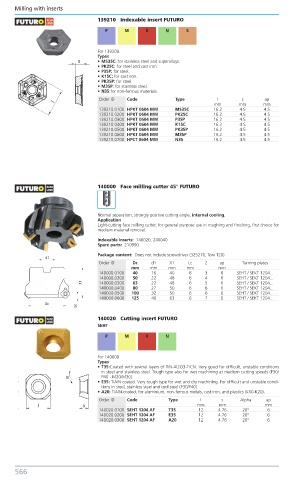

Milling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
139210 Indexable insert FUTURO

P M K N S

For 139200.
Types
• MS35C: for stainless steel and superalloys.
• PK25C: for steel and cast iron.
• P35P: for steel.
• K15C: for cast iron.
• PK35P: for steel.
• M35P: for stainless steel.
• N35:for non-ferrous materials.
Order ID Code Type l s ap
mm mm mm
139210.0100 HPKT 0604 MM MS35C 16.2 4.5 4.5
139210.0200 HPKT 0604 MM PK25C 16.2 4.5 4.5
139210.0300 HPKT 0604 MM P35P 16.2 4.5 4.5
139210.0400 HPKT 0604 MM K15C 16.2 4.5 4.5
139210.0500 HPKT 0604 MM PK35P 16.2 4.5 4.5
139210.0600 HPKT 0604 MM M35P 16.2 4.5 4.5
139210.0700 HPCT 0604 MM N35 16.2 4.5 4.5

140000 Face milling cutter 45° FUTURO

Normal separation, strongly positive cutting angle, internal cooling.
Application
Light-cutting face milling cutter, for general purpose use in roughing and finishing, first choice for
medium material removal.
Indexable inserts: 140020, 240040
Spare parts: 210990
Package content: Does not include screwdriver (325270, Torx T20)
Order ID Dc d1 X1 Lc Z ap Turning plates
mm mm mm mm mm
140000.0100 40 16 40 6 3 6 SEHT / SEKT 1204...
140000.0200 50 22 48 6 4 6 SEHT / SEKT 1204...
140000.0300 63 22 48 6 5 6 SEHT / SEKT 1204...
140000.0400 80 27 50 6 6 6 SEHT / SEKT 1204...
140000.0500 100 32 50 6 6 6 SEHT / SEKT 1204...
140000.0600 125 40 63 6 7 6 SEHT / SEKT 1204...

140020 Cutting insert FUTURO
SEHT
P M K N

For 140000
Types
• T35:Coated with several layers of TiN-Al2O3-TiCN. Very good for difficult, unstable conditions
in steel and stainless steel. Tough type also for wet machining at medium cutting speeds (P30/
P40 - M20/M30).
• E35: TiAIN coated. Very tough type for wet and dry machining. For difficult and unstable condi-
tions in steel, stainless steel and tool steel (P30/P40).
• A20: TiAlN-coated; for aluminium, non-ferrous metals, cast iron, and plastics (K10-K20).
Order ID Code Type l s Alpha ap
mm mm mm
140020.0100 SEHT 1204 AF T35 12 4.76 20° 6
140020.0200 SEHT 1204 AF E35 12 4.76 20° 6
140020.0300 SEHT 1204 AF A20 12 4.76 20° 6
