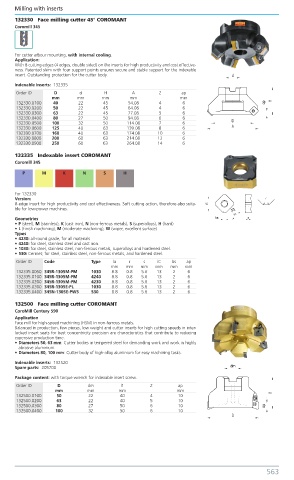

Milling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
132330 Face milling cutter 45° COROMANT
Coromill 345

For cutter arbour mounting, with internal cooling.
Application:
With 8 cutting edges (4 edges, double sided) on the inserts for high productivity and cost effective-
ness. Patented shim with four support points ensures secure and stable support for the indexable
insert. Outstanding protection for the cutter body.
Indexable inserts: 132335
Order ID D d H A Z ap
mm mm mm mm mm
132330.0100 40 22 45 54.08 4 6
132330.0200 50 22 45 64.08 4 6
132330.0300 63 22 45 77.08 5 6
132330.0400 80 27 50 94.08 6 6
132330.0500 100 32 50 114.08 7 6
132330.0600 125 40 63 139.08 8 6
132330.0700 160 40 63 174.08 10 6
132330.0800 200 60 63 214.08 12 6
132330.0900 250 60 63 264.08 14 6

132335 Indexable insert COROMANT
Coromill 345
P M K N S H

For 132330
Version:
8-edge insert for high productivity and cost effectiveness. Soft cutting action, therefore also suita-
ble for low-power machines.
Geometries
• P (steel), M (stainless), K (cast iron), N (non-ferrous metals), S (superalloys), H (hard)
• L (finish machining), M (moderate machining), W (wiper, excellent surface)
Types
• 4230: all-round grade, for all materials
• 4240: for steel, stainless steel and cast iron.
• 1030: for steel, stainless steel, non-ferrous metals, superalloys and hardened steel.
• 530: Cermet; for steel, stainless steel, non-ferrous metals, and hardened steel.
Order ID Code Type la r s iC bs ap
mm mm mm mm mm mm
132335.0050 345R-1305M-PM 1030 8.8 0.8 5.6 13 2 6
132335.0100 345R-1305M-PM 4240 8.8 0.8 5.6 13 2 6
132335.0200 345R-1305M-PM 4230 8.8 0.8 5.6 13 2 6
132335.0300 345R-1305E-PL 1030 8.8 0.8 5.6 13 2 6
132335.0400 345N-1305E-PW5 530 8.8 0.8 5.6 13 2 6
132500 Face milling cutter COROMANT
CoroMill Century 590
Application
Face mill for high-speed machining (HSM) in non-ferrous metals.
Balanced in production, few pieces, low weight and cutter inserts for high cutting speeds in inter-
locked insert seats for best concentricity precision are characteristics that contribute to reducing
expensive production time.
• Diameters 50, 63 mm: Cutter bodies in tempered steel for demanding work and work in highly
abrasive aluminium.
• Diameters 80, 100 mm: Cutter body of high-alloy aluminium for easy machining tasks.
Indexable inserts: 132520
Spare parts: 205700
Package content: with torque wrench for indexable insert screw.
Order ID D dm l1 Z ap
mm mm mm mm
132500.0100 50 22 40 4 10
132500.0200 63 22 40 5 10
132500.0300 80 27 50 6 10
132500.0400 100 32 50 6 10
