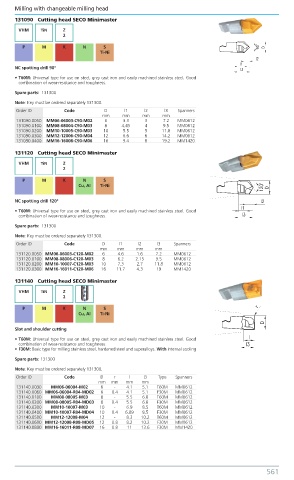

Page 570 - Benma | Blue book 5.0

Milling with changeable milling head Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
131090 Cutting head SECO Minimaster

VHM TiN Z
2
P M K N S
Ti-Ni

NC spotting drill 90°
• T60M: Universal type for use on steel, grey cast iron and easily machined stainless steel. Good
combination of wear-resistance and toughness.
Spare parts: 131300
Note: Key must be ordered separately 131300.
Order ID Code D l1 l2 l3 Spanners
mm mm mm mm
131090.0050 MM06-06003-C90-M02 6 3.3 3 7.2 MM0612
131090.0100 MM08-08004-C90-M03 8 4.45 4 9.5 MM0612
131090.0200 MM10-10005-C90-M03 10 5.5 5 11.8 MM0612
131090.0300 MM12-12006-C90-M04 12 6.6 6 14.2 MM0612
131090.0400 MM16-16008-C90-M06 16 9.4 8 19.2 MM1420
131120 Cutting head SECO Minimaster
VHM TiN Z
2

P M K N S
Cu, AI Ti-Ni

NC spotting drill 120°
• T60M: Universal type for use on steel, grey cast iron and easily machined stainless steel. Good
combination of wear-resistance and toughness.
Spare parts: 131300
Note: Key must be ordered separately 131300.
Order ID Code D l1 l2 l3 Spanners
mm mm mm mm
131120.0050 MM06-06003-C120-M02 6 4.6 1.6 7.2 MM0612
131120.0100 MM08-08006-C120-M03 8 6.2 2.15 9.5 MM0612
131120.0200 MM10-10007-C120-M03 10 7.3 2.7 11.8 MM0612
131120.0300 MM16-16011-C120-M06 16 11.7 4.3 19 MM1420
131140 Cutting head SECO Minimaster
VHM TiN Z
2
P M K N S
Cu, AI Ti-Ni

Slot and shoulder cutting
• T60M: Universal type for use on steel, grey cast iron and easily machined stainless steel. Good
combination of wear-resistance and toughness.
• F30M: Basic type for milling stainless steel, hardened steel and superalloys. With internal cooling
Spare parts: 131300
Note: Key must be ordered separately 131300.
Order ID Code D r l l3 Type Spanners
mm mm mm mm
131140.0030 MM06-06004-M02 6 - 4.1 5.1 T60M MM0612
131140.0060 MM06-06004-R04-MD02 6 0.4 4.1 5.1 F30M MM0612
131140.0100 MM08-08005-M03 8 - 5.5 6.8 T60M MM0612
131140.0200 MM08-08005-R04-MD03 8 0.4 5.5 6.8 F30M MM0612
131140.0300 MM10-10007-M03 10 - 6.9 8.5 T60M MM0612
131140.0400 MM10-10007-R04-MD04 10 0.4 6.89 8.5 F30M MM0612
131140.0500 MM12-12008-M04 12 - 8.3 10.2 T60M MM0612
131140.0600 MM12-12008-R08-MD05 12 0.8 8.2 10.2 F30M MM0612
131140.0800 MM16-16011-R08-MD07 16 0.8 11 13.6 F30M MM1420

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 561
