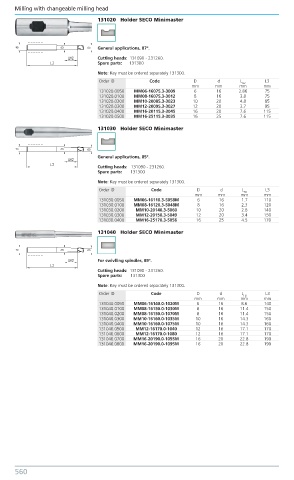

Milling with changeable milling head Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
131020 Holder SECO Minimaster

General applications, 87°.
Cutting heads: 131090 - 231260.
Spare parts: 131300
Note: Key must be ordered separately 131300.
Order ID Code D d L H2 L3
mm mm mm mm
131020.0050 MM06-16075.3-3009 6 16 2.86 75
131020.0100 MM08-16075.3-3012 8 16 3.8 75
131020.0200 MM10-20085.3-3023 10 20 4.8 85
131020.0300 MM12-20095.3-3027 12 20 3.7 95
131020.0400 MM16-20115.3-3045 16 20 7.6 115
131020.0500 MM16-25115.3-3035 16 25 7.6 115
131030 Holder SECO Minimaster

General applications, 85°.
Cutting heads: 131090 - 231260.
Spare parts: 131300
Note: Key must be ordered separately 131300.
Order ID Code D d L H2 L3
mm mm mm mm
131030.0050 MM06-16110.3-5058M 6 16 1.7 110
131030.0100 MM08-16120.3-5048M 8 16 2.3 120
131030.0200 MM10-20140.3-5060 10 20 2.8 140
131030.0300 MM12-20150.3-5049 12 20 3.4 150
131030.0400 MM16-25170.3-5056 16 25 4.5 170
131040 Holder SECO Minimaster

For swivlling spindles, 89°.
Cutting heads: 131090 - 231260.
Spare parts: 131300
Note: Key must be ordered separately 131300.
Order ID Code D d L H2 L3
mm mm mm mm
131040.0050 MM06-16140.0-1020M 6 16 8.6 140
131040.0100 MM08-16150.0-1030M 8 16 11.4 150
131040.0200 MM08-16150.0-1070M 8 16 11.4 150
131040.0300 MM10-16160.0-1035M 10 16 14.3 160
131040.0400 MM10-16160.0-1075M 10 16 14.3 160
131040.0500 MM12-16170.0-1040 12 16 17.1 170
131040.0600 MM12-16170.0-1080 12 16 17.1 170
131040.0700 MM16-20190.0-1055M 16 20 22.8 190
131040.0800 MM16-20190.0-1095M 16 20 22.8 190
