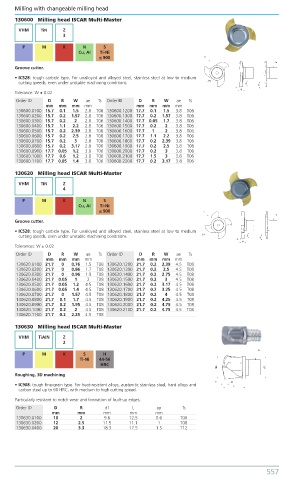

Page 566 - Benma | Blue book 5.0

Milling with changeable milling head Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
130600 Milling head ISCAR Multi-Master

VHM TiN Z
3
P M K N S
Cu, AI Ti-Ni
≤ 900
Groove cutter.
• IC528: tough carbide type. For unalloyed and alloyed steel, stainless steel at low to medium
cutting speeds, even under unstable machining conditions.
Tolerance: W ± 0.02
Order ID D R W ae Ts Order ID D R W ae Ts
mm mm mm mm mm mm mm mm
130600.0100 15.7 0.1 1.5 2.8 T06 130600.1200 17.7 0.1 1.5 3.8 T06
130600.0200 15.7 0.2 1.57 2.8 T06 130600.1300 17.7 0.2 1.57 3.8 T06
130600.0300 15.7 0.2 2 2.8 T06 130600.1400 17.7 0.05 1.7 3.8 T06
130600.0400 15.7 1.1 2.2 2.8 T06 130600.1500 17.7 0.2 2 3.8 T06
130600.0500 15.7 0.2 2.39 2.8 T06 130600.1600 17.7 1 2 3.8 T06
130600.0600 15.7 0.2 2.5 2.8 T06 130600.1700 17.7 1.1 2.2 3.8 T06
130600.0700 15.7 0.2 3 2.8 T06 130600.1800 17.7 0.2 2.39 3.8 T06
130600.0800 15.7 0.2 3.17 2.8 T06 130600.1900 17.7 0.2 2.5 3.8 T06
130600.0900 17.7 0.05 1.2 3.8 T06 130600.2000 17.7 0.2 3 3.8 T06
130600.1000 17.7 0.6 1.2 3.8 T06 130600.2100 17.7 1.5 3 3.8 T06
130600.1100 17.7 0.05 1.4 3.8 T06 130600.2200 17.7 0.2 3.17 3.8 T06
130620 Milling head ISCAR Multi-Master
VHM TiN Z
4

P M K N S
Cu, AI Ti-Ni
≤ 900
Groove cutter.
• IC528: tough carbide type. For unalloyed and alloyed steel, stainless steel at low to medium
cutting speeds, even under unstable machining conditions.
Tolerances: W ± 0.02
Order ID D R W ae Ts Order ID D R W ae Ts
mm mm mm mm mm mm mm mm
130620.0100 21.7 0 0.76 1.5 T08 130620.1200 21.7 0.2 2.39 4.5 T08
130620.0200 21.7 0 0.86 1.7 T08 130620.1300 21.7 0.2 2.5 4.5 T08
130620.0300 21.7 0 0.96 1.9 T08 130620.1400 21.7 0.2 2.75 4.5 T08
130620.0400 21.7 0.05 1 2 T08 130620.1500 21.7 0.2 3 4.5 T08
130620.0500 21.7 0.05 1.2 4.5 T08 130620.1600 21.7 0.2 3.17 4.5 T08
130620.0600 21.7 0.05 1.4 4.5 T08 130620.1700 21.7 0.2 3.25 4.5 T08
130620.0700 21.7 0 1.57 4.5 T08 130620.1800 21.7 0.2 4 4.5 T08
130620.0800 21.7 0.1 1.7 4.5 T08 130620.1900 21.7 0.2 4.25 4.5 T08
130620.0900 21.7 0.2 1.95 4.5 T08 130620.2000 21.7 0.2 4.75 4.5 T08
130620.1000 21.7 0.2 2 4.5 T08 130620.2100 21.7 0.2 4.75 4.5 T08
130620.1100 21.7 0.2 2.25 4.5 T08
130630 Milling head ISCAR Multi-Master
VHM TiAIN Z
2
P M K S H
Ti-Ni 44-56
HRC
Roughing, 3D machining
• IC908: tough fine-grain type. For heat-resistant alloys, austenitic stainless steel, hard alloys and
carbon steel up to 60 HRC, with medium to high cutting speed.
Particularly resistant to notch wear and formation of built-up edges.
Order ID D R d1 L ap Ts
mm mm mm mm mm
130630.0100 10 2 9.6 12.5 0.6 T06
130630.0200 12 2.5 11.5 11.1 1 T08
130630.0400 20 3.3 18.3 17.5 1.5 T12
