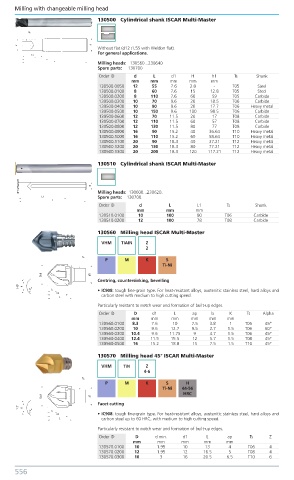

Page 565 - Benma | Blue book 5.0

Milling with changeable milling head Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
130500 Cylindrical shank ISCAR Multi-Master

Without flat (d12 / L55 with Weldon flat).
For general applications.
Milling heads: 130560...230640
Spare parts: 130700
Order ID d L d1 H h1 Ts Shank
mm mm mm mm mm
130500.0050 12 55 7.6 3.8 - T05 Steel
130500.0100 8 60 7.6 15 12.8 T05 Steel
130500.0200 8 110 7.6 60 59 T05 Carbide
130500.0300 10 70 9.6 20 18.5 T06 Carbide
130500.0400 10 90 9.6 20 17.7 T06 Heavy metal
130500.0500 10 150 9.6 100 98.5 T06 Carbide
130500.0600 12 70 11.5 20 17 T08 Carbide
130500.0700 12 110 11.5 60 57 T08 Carbide
130500.0800 12 130 11.5 80 77 T08 Carbide
130500.0900 16 90 15.2 40 36.64 T10 Heavy metal
130500.1000 16 110 15.2 60 58.64 T10 Heavy metal
130500.1100 20 90 18.3 40 37.21 T12 Heavy metal
130500.1200 20 130 18.3 80 77.21 T12 Heavy metal
130500.1300 20 200 18.3 120 117.21 T12 Heavy metal
130510 Cylindrical shank ISCAR Multi-Master

Milling heads: 130600...230620.
Spare parts: 130700.
Order ID d L L1 Ts Shank
mm mm mm
130510.0100 10 100 80 T06 Carbide
130510.0200 12 100 78 T08 Carbide
130560 Milling head ISCAR Multi-Master
VHM TiAIN Z
2

P M K S
Ti-Ni

Centring, countersinking, bevelling
• IC908: tough fine-grain type. For heat-resistant alloys, austenitic stainless steel, hard alloys and
carbon steel with medium to high cutting speed.
Particularly resistant to notch wear and formation of built-up edges.
Order ID D d1 L ap b K Ts Alpha
mm mm mm mm mm mm
130560.0100 8.3 7.6 10 7.5 3.8 1 T05 45°
130560.0200 10 9.6 12.7 9.5 2.7 1.5 T06 60°
130560.0300 10.4 9.6 11.75 9 4.7 1.5 T06 45°
130560.0400 12.4 11.5 15.5 12 5.7 1.5 T08 45°
130560.0500 16 15.2 18.8 15 7.5 1.5 T10 45°
130570 Milling head 45° ISCAR Multi-Master
VHM TiN Z
4-6
P M K S H
Ti-Ni 44-56
HRC
Facet cutting
• IC908: tough fine-grain type. For heat-resistant alloys, austenitic stainless steel, hard alloys and
carbon steel up to 60 HRC, with medium to high cutting speed.
Particularly resistant to notch wear and formation of built-up edges.
Order ID D d min. d1 L ap Ts Z
mm mm mm mm mm
130570.0100 10 1.95 10 13 4 T06 4
130570.0200 12 1.95 12 16.5 5 T08 4
130570.0300 16 3 16 20.5 6.5 T10 6
