Profile cutter, misc. cutters Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

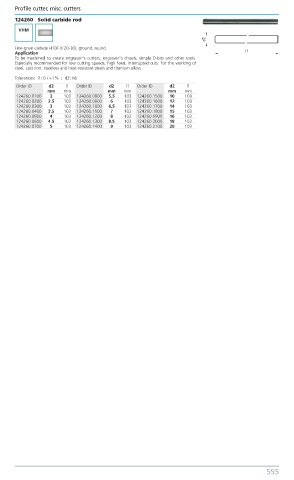

1 24260 Solid carbide rod

VHM

Fine-grain carbide H10F (K20-30), ground, round.
Application
To be machined to create engraver‘‘s cutters, engraver‘‘s chisels, simple D-bits and other tools.
Especially recommended for low cutting speeds, high feed, interrupted cuts. For the working of
steel, cast iron, stainless and heat-resistant steels and titanium alloys.
Tolerances: l1: 0 / +1% ; d2: h6
Order ID d2 l1 Order ID d2 l1 Order ID d2 l1
mm mm mm mm mm mm
124260.0100 2 103 124260.0800 5.5 103 124260.1500 10 103
124260.0200 2.5 103 124260.0900 6 103 124260.1600 12 103
124260.0300 3 103 124260.1000 6.5 103 124260.1700 14 103
124260.0400 3.5 103 124260.1100 7 103 124260.1800 15 103
124260.0500 4 103 124260.1200 8 103 124260.1900 16 103
124260.0600 4.5 103 124260.1300 8.5 103 124260.2000 18 103
124260.0700 5 103 124260.1400 9 103 124260.2100 20 103
