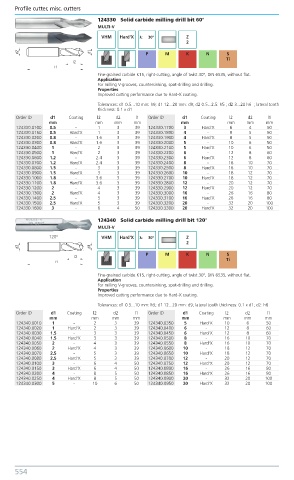

124330 Solid carbide milling drill bit 60°
MULTI-V
VHM Hard'X λ: 30º Z
2
P M K N S
Ti

Fine-grained carbide K15, right-cutting, angle of twist 30°, DIN 6535, without flat.
Application
For milling V-grooves, countersinking, spot-drilling and drilling.
Properties
Improved cutting performance due to Hard-X coating.
Tolerances: d1 0.5...10 mm: h9; d1 12...20 mm: d9; d2 0.5...2.5: h5 ; d2 3...20 h6 ; lateral tooth
thickness: 0.1 x d1
Order ID d1 Coating l2 d2 l1 Order ID d1 Coating l2 d2 l1
mm mm mm mm mm mm mm mm
124330.0100 0.5 - 1 3 39 124330.1700 3 Hard‘X 6 4 50
124330.0150 0.5 Hard‘X 1 3 39 124330.1800 4 - 8 5 50
124330.0200 0.8 - 1.6 3 39 124330.1900 4 Hard‘X 8 5 50
124330.0300 0.8 Hard‘X 1.6 3 39 124330.2000 5 - 10 6 50
124330.0400 1 - 2 3 39 124330.2100 5 Hard‘X 10 6 50
124330.0500 1 Hard‘X 2 3 39 124330.2200 6 - 12 8 60
124330.0600 1.2 - 2.4 3 39 124330.2300 6 Hard‘X 12 8 60
124330.0700 1.2 Hard‘X 2.4 3 39 124330.2400 8 - 16 10 70
124330.0800 1.5 - 3 3 39 124330.2500 8 Hard‘X 16 10 70
124330.0900 1.5 Hard‘X 3 3 39 124330.2600 10 - 18 12 70
124330.1000 1.8 - 3.6 3 39 124330.2700 10 Hard‘X 18 12 70
124330.1100 1.8 Hard‘X 3.6 3 39 124330.2800 12 - 20 12 70
124330.1200 2 - 4 3 39 124330.2900 12 Hard‘X 20 12 70
124330.1300 2 Hard‘X 4 3 39 124330.3000 16 - 26 16 80
124330.1400 2.5 - 5 3 39 124330.3100 16 Hard‘X 26 16 80
124330.1500 2.5 Hard‘X 5 3 39 124330.3200 20 - 32 20 100
124330.1600 3 - 6 4 50 124330.3300 20 Hard‘X 32 20 100

124340 Solid carbide milling drill bit 120°
MULTI-V
120° VHM Hard'X λ: 30º Z
2
P M K N S
Ti

Fine-grained carbide K15, right-cutting, angle of twist 30°, DIN 6535, without flat.
Application
For milling V-grooves, countersinking, spot-drilling and drilling.
Properties
Improved cutting performance due to Hard-X coating.
Tolerances: d1 0.5...10 mm: h9; d1 12...20 mm: d9; lateral tooth thickness: 0.1 x d1; d2: h6
Order ID d1 Coating l2 d2 l1 Order ID d1 Coating l2 d2 l1
mm mm mm mm mm mm mm mm
124340.0010 1 - 2 3 39 124340.0350 5 Hard‘X 10 6 50
124340.0020 1 Hard‘X 2 3 39 124340.0400 6 - 12 8 60
124340.0030 1.5 - 3 3 39 124340.0450 6 Hard‘X 12 8 60
124340.0040 1.5 Hard‘X 3 3 39 124340.0500 8 - 16 10 70
124340.0050 2 - 4 3 39 124340.0550 8 Hard‘X 16 10 70
124340.0060 2 Hard‘X 4 3 39 124340.0600 10 - 18 12 70
124340.0070 2.5 - 5 3 39 124340.0650 10 Hard‘X 18 12 70
124340.0080 2.5 Hard‘X 5 3 39 124340.0700 12 - 20 12 70
124340.0100 3 - 6 4 50 124340.0750 12 Hard‘X 20 12 70
124340.0150 3 Hard‘X 6 4 50 124340.0800 16 - 26 16 80
124340.0200 4 - 8 5 50 124340.0850 16 Hard‘X 26 16 80
124340.0250 4 Hard‘X 8 5 50 124340.0900 20 - 32 20 100
124340.0300 5 - 10 6 50 124340.0950 20 Hard‘X 32 20 100
