Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

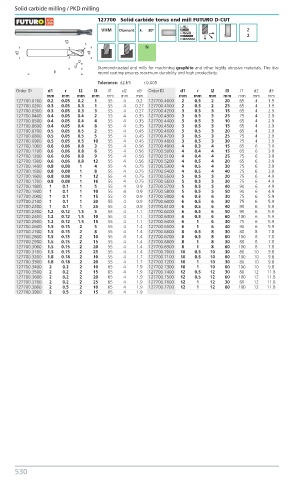

127700 Solid carbide torus end mill FUTURO D-CUT

VHM Diamant λ: 30º Z
2
N

Diamond-coated end mills for machining graphite and other highly abrasive materials. The dia-
mond coating ensures maximum durability and high productivity.
Tolerance: d2:h5 r:0.005
Order ID d1 r l2 l3 l1 d2 d3 Order ID d1 r l2 l3 l1 d2 d3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm
127700.0100 0.2 0.05 0.2 1 55 4 0.2 127700.4000 2 0.5 2 20 65 4 1.9
127700.0200 0.3 0.05 0.3 1 55 4 0.27 127700.4100 2 0.5 2 25 65 4 1.9
127700.0300 0.3 0.05 0.3 3 55 4 0.27 127700.4200 3 0.3 3 15 65 4 2.9
127700.0400 0.4 0.05 0.4 2 55 4 0.35 127700.4300 3 0.3 3 25 75 4 2.9
127700.0500 0.4 0.05 0.4 4 55 4 0.35 127700.4400 3 0.5 3 10 65 4 2.9
127700.0600 0.4 0.05 0.4 8 55 4 0.35 127700.4500 3 0.5 3 15 65 4 2.9
127700.0700 0.5 0.05 0.5 2 55 4 0.45 127700.4600 3 0.5 3 20 65 4 2.9
127700.0800 0.5 0.05 0.5 5 55 4 0.45 127700.4700 3 0.5 3 25 75 4 2.9
127700.0900 0.5 0.05 0.5 10 55 4 0.45 127700.4800 3 0.5 3 30 75 4 2.9
127700.1000 0.6 0.06 0.8 3 55 4 0.56 127700.4900 4 0.3 4 15 65 6 3.9
127700.1100 0.6 0.06 0.8 6 55 4 0.56 127700.5000 4 0.4 4 15 65 6 3.9
127700.1200 0.6 0.06 0.8 9 55 4 0.56 127700.5100 4 0.4 4 25 75 6 3.9
127700.1300 0.6 0.06 0.8 12 55 4 0.56 127700.5200 4 0.5 4 20 65 6 3.9
127700.1400 0.8 0.08 1 4 55 4 0.75 127700.5300 4 0.5 4 30 75 6 3.9
127700.1500 0.8 0.08 1 8 55 4 0.75 127700.5400 4 0.5 4 40 75 6 3.9
127700.1600 0.8 0.08 1 12 55 4 0.75 127700.5500 5 0.5 5 20 75 6 4.9
127700.1700 0.8 0.08 1 16 55 4 0.75 127700.5600 5 0.5 5 30 75 6 4.9
127700.1800 1 0.1 1 5 55 4 0.9 127700.5700 5 0.5 5 40 90 6 4.9
127700.1900 1 0.1 1 10 55 4 0.9 127700.5800 5 0.5 5 50 90 6 4.9
127700.2000 1 0.1 1 15 55 4 0.9 127700.5900 6 0.3 6 30 75 6 5.9
127700.2100 1 0.1 1 20 55 4 0.9 127700.6000 6 0.5 6 30 75 6 5.9
127700.2200 1 0.1 1 25 55 4 0.9 127700.6100 6 0.5 6 40 90 6 5.9
127700.2300 1.2 0.12 1.5 5 55 4 1.1 127700.6200 6 0.5 6 50 90 6 5.9
127700.2400 1.2 0.12 1.5 10 55 4 1.1 127700.6300 6 0.5 6 60 100 6 5.9
127700.2500 1.2 0.12 1.5 15 55 4 1.1 127700.6400 6 1 6 30 75 6 5.9
127700.2600 1.5 0.15 2 5 55 4 1.4 127700.6500 6 1 6 40 90 6 5.9
127700.2700 1.5 0.15 2 8 55 4 1.4 127700.6600 8 0.5 8 30 80 8 7.8
127700.2800 1.5 0.15 2 10 55 4 1.4 127700.6700 8 0.5 8 60 100 8 7.8
127700.2900 1.5 0.15 2 15 55 4 1.4 127700.6800 8 1 8 30 80 8 7.8
127700.3000 1.5 0.15 2 20 55 4 1.4 127700.6900 8 1 8 60 100 8 7.8
127700.3100 1.5 0.15 2 25 55 4 1.4 127700.7000 10 0.5 10 30 80 10 9.8
127700.3200 1.8 0.18 2 10 55 4 1.7 127700.7100 10 0.5 10 60 100 10 9.8
127700.3300 1.8 0.18 2 20 55 4 1.7 127700.7200 10 1 10 30 80 10 9.8
127700.3400 2 0.2 2 10 65 4 1.9 127700.7300 10 1 10 60 100 10 9.8
127700.3500 2 0.2 2 15 65 4 1.9 127700.7400 12 0.5 12 30 80 12 11.8
127700.3600 2 0.2 2 20 65 4 1.9 127700.7500 12 0.5 12 60 100 12 11.8
127700.3700 2 0.2 2 25 65 4 1.9 127700.7600 12 1 12 30 80 12 11.8
127700.3800 2 0.5 2 10 65 4 1.9 127700.7700 12 1 12 60 100 12 11.8
127700.3900 2 0.5 2 15 65 4 1.9

530 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
