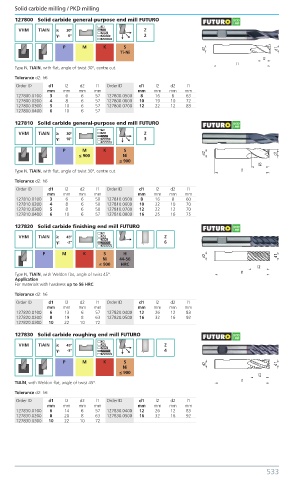

Page 542 - Benma | Blue book 5.0

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
127800 Solid carbide general-purpose end mill FUTURO

VHM TiAIN λ: 30º Z
γ: 6º 2
P M K S
Ti-Ni

Type N, TiAlN, with flat, angle of twist 30°, centre cut.
Tolerance d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
127800.0100 3 6 6 57 127800.0500 8 16 8 63
127800.0200 4 8 6 57 127800.0600 10 19 10 72
127800.0300 5 10 6 57 127800.0700 12 22 12 83
127800.0400 6 10 6 57
127810 Solid carbide general-purpose end mill FUTURO
VHM TiAIN λ: 30º Z
γ: 10º 3
P M K S
≤ 900 Ni
≤ 900
Type N, TiAlN, with flat, angle of twist 30°, centre cut.
Tolerance d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
127810.0100 3 6 6 50 127810.0500 8 16 8 60
127810.0200 4 8 6 50 127810.0600 10 22 10 70
127810.0300 5 8 6 50 127810.0700 12 22 12 70
127810.0400 6 10 6 57 127810.0800 16 25 16 75
127820 Solid carbide finishing end mill FUTURO
VHM TiAIN λ: 45º Z
γ: -2º 6
P M K S H
Ni 44-56
≤ 900 HRC
Type N, TiAlN, with Weldon flat, angle of twist 45°.
Application
For materials with hardness up to 56 HRC.
Tolerance d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
127820.0100 6 13 6 57 127820.0400 12 26 12 83
127820.0200 8 19 8 63 127820.0500 16 32 16 92
127820.0300 10 22 10 72
127830 Solid carbide roughing end mill FUTURO

VHM TiAIN λ: 45º Z
γ: -3º 4
P M K S
Ni
≤ 900
TiAlN, with Weldon flat, angle of twist 45°.
Tolerance d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
127830.0100 6 14 6 57 127830.0400 12 26 12 83
127830.0200 8 20 8 63 127830.0500 16 32 16 92
127830.0300 10 22 10 72

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 533
