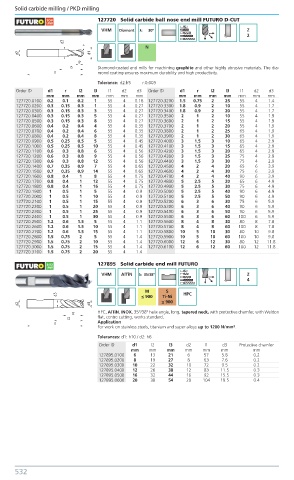

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
127720 Solid carbide ball nose end mill FUTURO D-CUT

VHM Diamant λ: 30º Z
2
N

Diamond-coated end mills for machining graphite and other highly abrasive materials. The dia-
mond coating ensures maximum durability and high productivity.
Tolerance: d2:h5 r:0.003
Order ID d1 r l2 l3 l1 d2 d3 Order ID d1 r l2 l3 l1 d2 d3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm
127720.0100 0.2 0.1 0.2 1 55 4 0.18 127720.3200 1.5 0.75 2 25 55 4 1.4
127720.0200 0.3 0.15 0.3 1 55 4 0.27 127720.3300 1.8 0.9 2 10 55 4 1.7
127720.0300 0.3 0.15 0.3 3 55 4 0.27 127720.3400 1.8 0.9 2 20 55 4 1.7
127720.0400 0.3 0.15 0.3 5 55 4 0.27 127720.3500 2 1 2 10 55 4 1.9
127720.0500 0.3 0.15 0.3 8 55 4 0.27 127720.3600 2 1 2 15 55 4 1.9
127720.0600 0.4 0.2 0.4 4 55 4 0.35 127720.3700 2 1 2 20 55 4 1.9
127720.0700 0.4 0.2 0.4 6 55 4 0.35 127720.3800 2 1 2 25 65 4 1.9
127720.0800 0.4 0.2 0.4 8 55 4 0.35 127720.3900 2 1 2 30 65 4 1.9
127720.0900 0.5 0.25 0.5 5 55 4 0.45 127720.4000 3 1.5 3 10 65 4 2.9
127720.1000 0.5 0.25 0.5 10 55 4 0.45 127720.4100 3 1.5 3 15 65 4 2.9
127720.1100 0.6 0.3 0.8 6 55 4 0.56 127720.4200 3 1.5 3 20 65 4 2.9
127720.1200 0.6 0.3 0.8 9 55 4 0.56 127720.4300 3 1.5 3 25 75 4 2.9
127720.1300 0.6 0.3 0.8 12 55 4 0.56 127720.4400 3 1.5 3 30 75 4 2.9
127720.1400 0.7 0.35 0.9 7 55 4 0.65 127720.4500 4 2 4 20 65 6 3.9
127720.1500 0.7 0.35 0.9 14 55 4 0.65 127720.4600 4 2 4 30 75 6 3.9
127720.1600 0.8 0.4 1 8 55 4 0.75 127720.4700 4 2 4 40 90 6 3.9
127720.1700 0.8 0.4 1 12 55 4 0.75 127720.4800 5 2.5 5 20 65 6 4.9
127720.1800 0.8 0.4 1 16 55 4 0.75 127720.4900 5 2.5 5 30 75 6 4.9
127720.1900 1 0.5 1 5 55 4 0.9 127720.5000 5 2.5 5 40 90 6 4.9
127720.2000 1 0.5 1 10 55 4 0.9 127720.5100 5 2.5 5 50 90 6 4.9
127720.2100 1 0.5 1 15 55 4 0.9 127720.5200 6 3 6 30 75 6 5.9
127720.2200 1 0.5 1 20 55 4 0.9 127720.5300 6 3 6 40 90 6 5.9
127720.2300 1 0.5 1 25 55 4 0.9 127720.5400 6 3 6 50 90 6 5.9
127720.2400 1 0.5 1 30 55 4 0.9 127720.5500 6 3 6 60 100 6 5.9
127720.2500 1.2 0.6 1.5 5 55 4 1.1 127720.5600 8 4 8 30 80 8 7.8
127720.2600 1.2 0.6 1.5 10 55 4 1.1 127720.5700 8 4 8 60 100 8 7.8
127720.2700 1.2 0.6 1.5 15 55 4 1.1 127720.5800 10 5 10 30 80 10 9.8
127720.2800 1.5 0.75 2 5 55 4 1.4 127720.5900 10 5 10 60 100 10 9.8
127720.2900 1.5 0.75 2 10 55 4 1.4 127720.6000 12 6 12 30 80 12 11.8
127720.3000 1.5 0.75 2 15 55 4 1.4 127720.6100 12 6 12 60 100 12 11.8
127720.3100 1.5 0.75 2 20 55 4 1.4
127895 Solid carbide end mill FUTURO
VHM AlTiN λ: 35/38º Z
4
M S HPC
≤ 900 Ti-Ni
≤ 900
HPC, AlTiN, INOX, 35°/38° helix angle, long, tapered neck, with protective chamfer, with Weldon
flat, centre cutting, works standard.
Application
For work on stainless steels, titanium and super alloys up to 1200 N/mm².
Tolerances: d1: h10 / d2: h6
Order ID d1 l2 l3 d2 l1 d3 Protective chamfer
mm mm mm mm mm mm mm
127895.0100 6 13 21 6 57 5.8 0.2
127895.0200 8 19 27 8 63 7.6 0.2
127895.0300 10 22 32 10 72 9.5 0.2
127895.0400 12 26 38 12 83 11.5 0.3
127895.0500 16 32 44 16 92 15.5 0.3
127895.0600 20 38 54 20 104 19.5 0.4
