Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

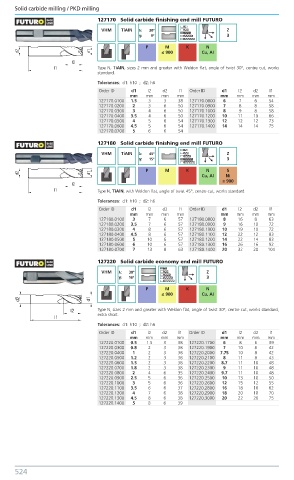

127170 Solid carbide finishing end mill FUTURO

VHM TiAIN λ: 30º Z
γ: 9º 3
P M K N
≤ 900 Cu, AI

Type N, TiAlN, sizes 2 mm and greater with Weldon flat, angle of twist 30°, centre cut, works
standard.
Tolerances: d1: h10 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
127170.0100 1.5 3 3 38 127170.0800 6 7 6 54
127170.0200 2 3 6 50 127170.0900 7 8 8 58
127170.0300 3 4 6 50 127170.1000 8 9 8 58
127170.0400 3.5 4 6 50 127170.1200 10 11 10 66
127170.0500 4 5 6 54 127170.1300 12 12 12 73
127170.0600 4.5 5 6 54 127170.1400 14 14 14 75
127170.0700 5 6 6 54
127180 Solid carbide finishing end mill FUTURO
VHM TiAIN λ: 45º Z
γ: 15º 3
P M K N S
Cu, AI Ni
≤ 900
Type N, TiAlN, with Weldon flat, angle of twist 45°, centre cut, works standard.
Tolerances: d1: h10 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
127180.0100 3 7 6 57 127180.0800 8 16 8 63
127180.0200 3.5 7 6 57 127180.0900 9 16 10 72
127180.0300 4 8 6 57 127180.1000 10 19 10 72
127180.0400 4.5 8 6 57 127180.1100 12 22 12 83
127180.0500 5 10 6 57 127180.1200 14 22 14 83
127180.0600 6 10 6 57 127180.1300 16 26 16 92
127180.0700 7 13 8 63 127180.1400 20 32 20 104
127220 Solid carbide economy end mill FUTURO
VHM λ: 30º Z
γ: 16º 3

P M K N
≤ 900 Cu, AI

Type N, sizes 2 mm and greater with Weldon flat, angle of twist 30°, centre cut, works standard,
extra short.
Tolerances: d1: h10 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
127220.0100 0.5 1.5 3 38 127220.1700 6 8 6 39
127220.0300 0.8 2 3 38 127220.1900 7 10 8 42
127220.0400 1 2 3 38 127220.2000 7.75 10 8 42
127220.0500 1.2 2 3 38 127220.2100 8 11 8 43
127220.0600 1.5 2 3 38 127220.2200 8.7 11 10 48
127220.0700 1.8 2 3 38 127220.2300 9 11 10 48
127220.0800 2 4 6 35 127220.2400 9.7 11 10 48
127220.0900 2.5 5 6 36 127220.2500 10 13 10 50
127220.1000 3 5 6 36 127220.2600 12 15 12 55
127220.1100 3.5 6 6 37 127220.2800 16 18 16 62
127220.1200 4 7 6 38 127220.2900 18 20 18 70
127220.1300 4.5 8 6 38 127220.3000 20 22 20 75
127220.1400 5 8 6 39
