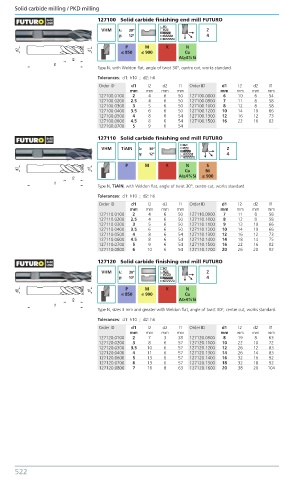

Page 531 - Benma | Blue book 5.0

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
127100 Solid carbide finishing end mill FUTURO

VHM λ: 30º Z
γ: 12º 4
P M K N
≤ 850 ≤ 900 Cu
AI≥4%Si
Type N, with Weldon flat, angle of twist 30°, centre cut, works standard.
Tolerances: d1: h10 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
127100.0100 2 4 6 50 127100.0800 6 10 6 54
127100.0200 2.5 4 6 50 127100.0900 7 11 8 58
127100.0300 3 5 6 50 127100.1000 8 12 8 58
127100.0400 3.5 6 6 50 127100.1200 10 14 10 66
127100.0500 4 8 6 54 127100.1300 12 16 12 73
127100.0600 4.5 8 6 54 127100.1500 16 22 16 82
127100.0700 5 9 6 54
127110 Solid carbide finishing end mill FUTURO
VHM TiAIN λ: 30º Z
γ: 12º 4

P M K N S
Cu Ni
AI≥4%Si ≤ 900
Type N, TiAlN, with Weldon flat, angle of twist 30°, centre cut, works standard.
Tolerances: d1: h10 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
127110.0100 2 4 6 50 127110.0900 7 11 8 58
127110.0200 2.5 4 6 50 127110.1000 8 12 8 58
127110.0300 3 5 6 50 127110.1100 9 13 10 66
127110.0400 3.5 6 6 50 127110.1200 10 14 10 66
127110.0500 4 8 6 54 127110.1300 12 16 12 73
127110.0600 4.5 8 6 54 127110.1400 14 18 14 75
127110.0700 5 9 6 54 127110.1500 16 22 16 82
127110.0800 6 10 6 54 127110.1700 20 26 20 92
127120 Solid carbide finishing end mill FUTURO
VHM λ: 30º Z
γ: 10º 4

P M K N
≤ 850 ≤ 900 Cu
AI≥4%Si
Type N, sizes 3 mm and greater with Weldon flat, angle of twist 30°, centre cut, works standard.
Tolerances: d1: h10 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
127120.0100 2 7 3 38 127120.0900 8 19 8 63
127120.0200 3 8 6 57 127120.1100 10 22 10 72
127120.0300 3.5 10 6 57 127120.1200 12 26 12 83
127120.0400 4 11 6 57 127120.1300 14 26 14 83
127120.0600 5 13 6 57 127120.1400 16 32 16 92
127120.0700 6 13 6 57 127120.1500 18 32 18 92
127120.0800 7 16 8 63 127120.1600 20 38 20 104

522 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
