Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

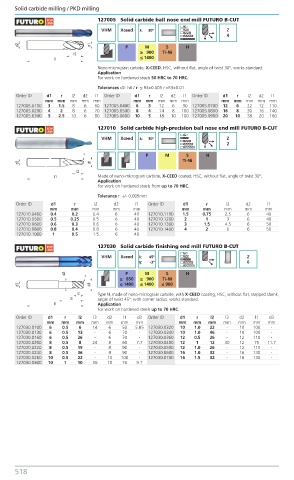

127005 Solid carbide ball nose end mill FUTURO B-CUT

VHM Xceed λ: 30º Z
4
P M S H
≥ 900 Ti-Ni
≤ 1400
Nano-micrograin carbide, X-CEED, HSC, without flat, angle of twist 30°, works standard.
Application
For work on hardened steels 50 HRC to 70 HRC.
Tolerances d2: h6 / r: ≤ R3±0.005 / >R3±0.01
Order ID d1 r l2 d2 l1 Order ID d1 r l2 d2 l1 Order ID d1 r l2 d2 l1
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
127005.0100 3 1.5 8 6 60 127005.0400 6 3 12 6 90 127005.0700 12 6 22 12 110
127005.0200 4 2 8 6 70 127005.0500 8 4 14 8 100 127005.0800 16 8 30 16 140
127005.0300 5 2.5 10 6 80 127005.0600 10 5 18 10 100 127005.0900 20 10 38 20 160
127010 Solid carbide high-precision ball nose end mill FUTURO B-CUT
VHM Xceed λ: 30º Z
2

P M S H
Ti-Ni

Made of nano-micrograin carbide, X-CEED coated, HSC, without flat, angle of twist 30°.
Application
For work on hardened steels from up to 70 HRC.
Tolerance r: +/- 0.005mm
Order ID d1 r l2 d2 l1 Order ID d1 r l2 d2 l1
mm mm mm mm mm mm mm mm mm mm
127010.0400 0.4 0.2 0.4 6 40 127010.1100 1.5 0.75 2.5 6 40
127010.0500 0.5 0.25 0.5 6 40 127010.1200 2 1 3 6 40
127010.0600 0.6 0.3 0.6 6 40 127010.1300 3 1.5 4.5 6 50
127010.0800 0.8 0.4 0.8 6 40 127010.1400 4 2 6 6 50
127010.1000 1 0.5 1.5 6 40
127030 Solid carbide finishing end mill FUTURO B-CUT
VHM Xceed λ: 45º Z
γ: -3º 6
P M S H
≥ 850 ≥ 900 Ti-Ni
≤ 1400 ≤ 1400 ≤ 900
Type N, made of nano-micrograin carbide, with X-CEED coating, HSC, without flat, stepped shank,
angle of twist 45°, with corner radius, works standard.
Application
For work on hardened steels up to 70 HRC.
Order ID d1 r l2 l3 d2 l1 d3 Order ID d1 r l2 l3 d2 l1 d3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm
127030.0100 6 0.5 6 14 6 50 5.85 127030.0320 10 1.0 22 - 10 100 -
127030.0130 6 0.5 13 - 6 70 - 127030.0340 10 1.0 46 - 10 100 -
127030.0160 6 0.5 26 - 6 70 - 127030.0360 12 0.5 26 - 12 110 -
127030.0200 8 0.5 8 24 8 60 7.7 127030.0400 12 1 12 30 12 75 11.7
127030.0220 8 0.5 19 - 8 90 - 127030.0500 12 1.0 26 - 12 110 -
127030.0240 8 0.5 36 - 8 90 - 127030.0600 16 1.0 32 - 16 130 -
127030.0260 10 0.5 22 - 10 100 - 127030.0700 16 1.5 32 - 16 130 -
127030.0300 10 1 10 30 10 70 9.7

518 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
