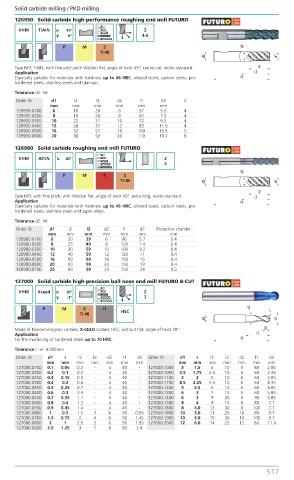

P. 526
Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 26950 Solid carbide high-performance roughing end mill FUTURO
VHM TiAIN λ: 45º Z
γ: 6º 4-6
P M S
Ti-Ni
Type NRF, TiAlN, with fine pitch,with Weldon flat, angle of twist 45°, centre cut, works standard.
Application
Especially suitable for materials with hardness up to 46 HRC, alloyed steels, carbon steels, pre-
hardened steels, stainless steels and titanium.
Tolerance d2: h6
Order ID d1 l2 l3 d2 l1 d3 Z
mm mm mm mm mm mm
126950.0100 6 16 20 6 57 5.5 4
126950.0200 8 16 26 8 63 7.5 4
126950.0300 10 22 31 10 72 9.5 4
126950.0400 12 26 37 12 83 11.5 4
126950.0500 16 32 51 16 100 15.5 5
126950.0600 20 38 59 20 110 19.2 6
1 26980 Solid carbide roughing end mill FUTURO
VHM AlTiN λ: 40º Z
4
P M K S
Ti-Ni
Type NRF, with fine pitch, with Weldon flat, angle of twist 45°, extra long, works standard.
Application
Especially suitable for materials with hardness up to 46 HRC, alloyed steels, carbon steels, pre-
hardened steels, stainless steels and super alloys.
Tolerance d2: h6
Order ID d1 l2 l3 d2 l1 d3 Protective chamfer
mm mm mm mm mm mm mm
126980.0100 6 20 39 6 80 5.7 0.4
126980.0200 8 25 49 8 100 7.4 0.4
126980.0300 10 30 59 10 100 9.2 0.4
126980.0400 12 40 59 12 120 11 0.4
126980.0500 16 50 99 16 150 15 0.4
126980.0600 20 60 99 20 150 19 0.4
126980.0700 25 80 99 25 150 24 0.5
1 27000 Solid carbide high-precision ball nose end mill FUTURO B-CUT
VHM Xceed λ: 30º Z
γ: -3º 2
P M S H
Ti-Ni HSC
Made of Nano-micrograin carbide, X-CEED coated, HSC, without flat, angle of twist 30°.
Application
For the machining of hardened steels up to 70 HRC.
Tolerance r: +/- 0.005mm
Order ID d1 r l2 l3 d2 l1 d3 Order ID d1 r l2 l3 d2 l1 d3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm
127000.0100 0.1 0.05 0.2 - 4 40 - 127000.1000 3 1.5 4 10 6 60 2.85
127000.0200 0.2 0.1 0.3 - 4 40 - 127000.1050 3.5 1.75 4.5 10 6 60 3.35
127000.0250 0.3 0.15 0.5 - 4 40 - 127000.1100 4 2 5 10 6 60 3.85
127000.0300 0.4 0.2 0.6 - 4 40 - 127000.1150 4.5 2.25 5.5 10 6 60 4.35
127000.0350 0.5 0.25 0.7 - 4 40 - 127000.1200 5 2.5 6 12 6 60 4.85
127000.0400 0.6 0.3 0.9 - 4 40 - 127000.1300 6 3 7 15 6 60 5.85
127000.0450 0.7 0.35 1.1 - 4 40 - 127000.1400 6 3 9 30 6 90 5.85
127000.0500 0.8 0.4 1.2 - 4 40 - 127000.1500 8 4 9 15 8 80 7.7
127000.0550 0.9 0.45 1.4 - 4 40 - 127000.1600 8 4.0 12 30 8 100 7.7
127000.0600 1 0.5 1.5 3 6 50 0.95 127000.1800 10 5.0 11 25 10 80 9.7
127000.0700 1.5 0.75 2 4 6 50 1.45 127000.1900 10 5.0 15 30 10 100 9.7
127000.0800 2 1 2.5 5 6 50 1.95 127000.2000 12 6.0 14 25 12 80 11.4
127000.0900 2.5 1.25 3 7 6 50 2.4
