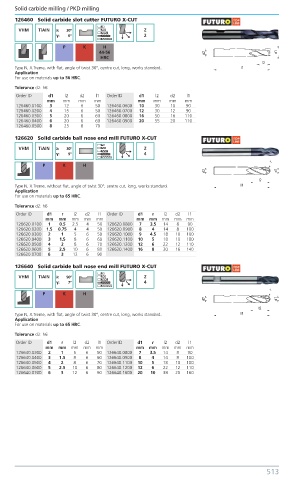

Page 522 - Benma | Blue book 5.0

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 26460 Solid carbide slot cutter FUTURO X-CUT

VHM TiAIN λ: 30º Z
γ: 6º 2
P K H
44-56
HRC
Type N, X.Treme, with flat, angle of twist 30°, centre cut, long, works standard.
Application
For use on materials up to 56 HRC.
Tolerance d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
126460.0100 3 12 6 50 126460.0600 10 30 10 90
126460.0200 4 15 6 50 126460.0700 12 30 12 90
126460.0300 5 20 6 60 126460.0800 16 50 16 110
126460.0400 6 20 6 60 126460.0900 20 55 20 110
126460.0500 8 25 8 70
1 26620 Solid carbide ball nose end mill FUTURO X-CUT
VHM TiAIN λ: 30º Z
γ: 9º 4

P K H

Type N, X.Treme, without flat, angle of twist 30°, centre cut, long, works standard.
Application
For use on materials up to 65 HRC.
Tolerance d2: h6
Order ID d1 r l2 d2 l1 Order ID d1 r l2 d2 l1
mm mm mm mm mm mm mm mm mm mm
126620.0100 1 0.5 2.5 4 50 126620.0800 7 3.5 14 8 90
126620.0200 1.5 0.75 4 4 50 126620.0900 8 4 14 8 100
126620.0300 2 1 5 6 50 126620.1000 9 4.5 18 10 100
126620.0400 3 1.5 8 6 60 126620.1100 10 5 18 10 100
126620.0500 4 2 8 6 70 126620.1200 12 6 22 12 110
126620.0600 5 2.5 10 6 80 126620.1400 16 8 30 16 140
126620.0700 6 3 12 6 90
1 26640 Solid carbide ball nose end mill FUTURO X-CUT
VHM TiAIN λ: 90º Z
γ: 7º 4
P K H

Type N, X.Treme, with flat, angle of twist 30°, centre cut, long, works standard.
Application
For use on materials up to 65 HRC.
Tolerance d2: h6
Order ID d1 r l2 d2 l1 Order ID d1 r l2 d2 l1
mm mm mm mm mm mm mm mm mm mm
126640.0300 2 1 5 6 50 126640.0800 7 3.5 14 8 90
126640.0400 3 1.5 8 6 60 126640.0900 8 4 14 8 100
126640.0500 4 2 8 6 70 126640.1100 10 5 18 10 100
126640.0600 5 2.5 10 6 80 126640.1200 12 6 22 12 110
126640.0700 6 3 12 6 90 126640.1600 20 10 38 20 160

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 513
