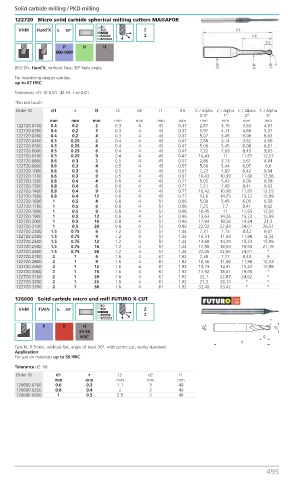

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
122720 Micro solid carbide spherical milling cutters MAGAFOR

VHM Hard'X λ: 30º Z
2
P N H
600-1400

852-DH, Hard‘X, without face, 30° helix angle
For machining deeper cavities.
up to 67 HRC
Tolerances: d1: 0/-0.01 d2:h5 r:+/-0.01
*Do not touch
Order ID d1 r l3 l2 d2 l1 d3 C / Alpha C / Alpha C / Alpha C / Alpha
0.5° 1° 2° 3°
mm mm mm mm mm mm mm mm mm mm mm
122720.0100 0.4 0.2 2 0.3 4 45 0.37 2,87 3,15 3,63 4,07
122720.0200 0.4 0.2 3 0.3 4 45 0.37 3,97 4,31 4,88 5,37
122720.0300 0.4 0.2 4 0.3 4 45 0.37 5,07 5,45 6,08 6,63
122720.0400 0.5 0.25 2 0.4 4 45 0.47 2,86 3,14 3,62 4,06
122720.0500 0.5 0.25 4 0.4 4 45 0.47 5,06 5,45 6,08 6,61
122720.0600 0.5 0.25 6 0.4 4 45 0.47 7,22 7,69 8,43 9,05
122720.0700 0.5 0.25 9 0.4 4 45 0.47 10,43 11 11,87 12,57
122720.0800 0.6 0.3 2 0.5 4 45 0.57 2,86 3,13 3,61 4,04
122720.0900 0.6 0.3 4 0.5 4 45 0.57 5,06 5,44 6,07 6,6
122720.1000 0.6 0.3 6 0.5 4 45 0.57 7,22 7,69 8,42 9,04
122720.1100 0.6 0.3 9 0.5 4 45 0.57 10,43 10,99 11,86 12,56
122720.1200 0.8 0.4 4 0.6 4 45 0.77 5,05 5,43 6,05 6,58
122720.1300 0.8 0.4 6 0.6 4 45 0.77 7,21 7,68 8,41 9,02
122720.1400 0.8 0.4 9 0.6 4 45 0.77 10,42 10,98 11,85 12,55
122720.1500 0.8 0.4 12 0.6 4 45 0.77 13,6 14,25 15,22 15,99
122720.1600 1 0.5 4 0.8 4 51 0.96 5,09 5,45 6,05 6,58
122720.1700 1 0.5 6 0.8 4 51 0.96 7,25 7,7 8,41 9,02
122720.1800 1 0.5 9 0.8 4 51 0.96 10,45 11 11,85 12,55
122720.1900 1 0.5 12 0.8 4 51 0.96 13,63 14,26 15,22 15,99
122720.2000 1 0.5 16 0.8 4 51 0.96 17,84 18,56 19,64 21,2
122720.2100 1 0.5 20 0.8 4 51 0.96 22,02 22,83 24,01 26,51
122720.2200 1.5 0.75 6 1.2 4 51 1.44 7,31 7,73 8,42 9,01
122720.2300 1.5 0.75 9 1.2 4 51 1.44 10,51 11,03 11,86 12,54
122720.2400 1.5 0.75 12 1.2 4 51 1.44 13,68 14,29 15,23 15,98
122720.2500 1.5 0.75 16 1.2 4 51 1.44 17,88 18,59 19,65 21,18
122720.2600 1.5 0.75 20 1.2 4 51 1.44 22,06 22,85 24,01 *
122720.2700 2 1 6 1.6 4 61 1.92 7,38 7,77 8,43 9
122720.2800 2 1 9 1.6 4 61 1.92 10,56 11,06 11,86 12,53
122720.2900 2 1 12 1.6 4 61 1.92 13,73 14,31 15,23 15,98
122720.3000 2 1 16 1.6 4 61 1.92 17,92 18,61 19,65 *
122720.3100 2 1 20 1.6 4 61 1.92 22,1 22,87 24,02 *
122720.3200 2 1 25 1.6 4 61 1.92 27,3 28,16 * *
122720.3300 2 1 30 1.6 4 61 1.92 32,48 33,42 * *
126600 Solid carbide micro end mill FUTURO X-CUT

VHM TiAIN λ: 30º Z
2
P K H
44-56
HRC
Type N, X.Treme, without flat, angle of twist 30°, with centre cut, works standard.
Application
For use on materials up to 56 HRC.
Tolerance d2: h6
Order ID d1 r l2 d2 l1
mm mm mm mm mm
126600.0100 0.6 0.3 1.1 3 40
126600.0200 0.8 0.4 2 3 40
126600.0300 1 0.5 2.5 3 40
