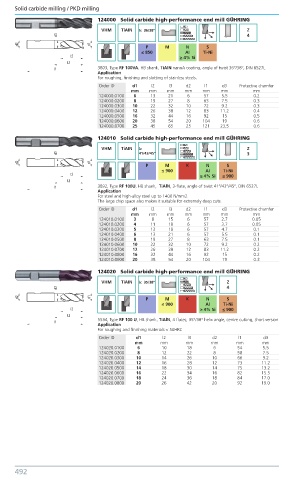

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
124000 Solid carbide high-performance end mill GÜHRING

VHM TiAIN λ: 36/38º Z
4
P M N S
≤ 850 AI Ti-Ni
≥ 4% Si
3803, Type RF 100VA, HB shank, TiAlN nanoA coating, angle of twist 36°/38°, DIN 6527L
Application
For roughing, finishing and slotting of stainless steels.
Order ID d1 l2 l3 d2 l1 d3 Protective chamfer
mm mm mm mm mm mm mm
124000.0100 6 13 21 6 57 5.5 0.2
124000.0200 8 19 27 8 63 7.5 0.3
124000.0300 10 22 32 10 72 9.2 0.3
124000.0400 12 26 38 12 83 11.2 0.4
124000.0500 16 32 44 16 92 15 0.5
124000.0600 20 38 54 20 104 19 0.6
124000.0700 25 45 65 25 121 23.5 0.6
124010 Solid carbide high-performance end mill GÜHRING
VHM TiAIN λ: Z
41/43/45º 3

P M K N S
≤ 900 AI Ti-Ni
≥ 4% Si ≤ 900
3892, Type RF 100U, HB shank, TiAlN, 3-flute, angle of twist 41°/43°/45°, DIN 6527L
Application
For steel and high-alloy steel up to 1400 N/mm2.
The large chip space also makes it suitable for extremely deep cuts.
Order ID d1 l2 l3 d2 l1 d3 Protective chamfer
mm mm mm mm mm mm mm
124010.0100 3 8 15 6 57 2.7 0.05
124010.0200 4 11 18 6 57 3.7 0.05
124010.0300 5 13 18 6 57 4.7 0.1
124010.0400 6 13 21 6 57 5.5 0.1
124010.0500 8 19 27 8 63 7.5 0.1
124010.0600 10 22 32 10 72 9.2 0.2
124010.0700 12 26 38 12 83 11.2 0.2
124010.0800 16 32 44 16 92 15 0.2
124010.0900 20 38 54 20 104 19 0.3
124020 Solid carbide high-performance end mill GÜHRING
VHM TiAIN λ: 35/38º Z
4

P M K N S
≤ 900 AI Ti-Ni
≥ 4% Si ≤ 900
5534, Type RF 100 U, HB shank, TiAlN, 4 flutes, 35°/38° helix angle, centre cutting, short version
Application
For roughing and finishing materials < 50HRC
Order ID d1 l2 l3 d2 l1 d3
mm mm mm mm mm mm
124020.0100 6 10 18 6 54 5.5
124020.0200 8 12 22 8 58 7.5
124020.0300 10 14 26 10 66 9.2
124020.0400 12 16 28 12 73 11.2
124020.0500 14 18 30 14 75 13.2
124020.0600 16 22 34 16 82 15.5
124020.0700 18 24 36 18 84 17.0
124020.0800 20 26 42 20 92 19.0

492 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
