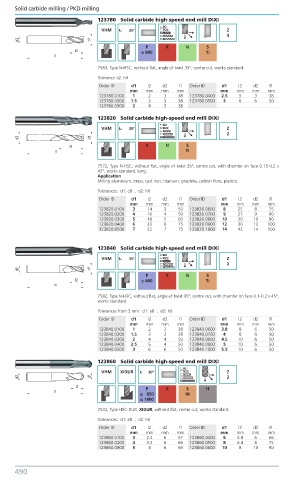

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 23780 Solid carbide high-speed end mill DIXI

VHM λ: 35º Z
3
P K N S
≤ 600 Ti

7583, Type N-HSC, without flat, angle of twist 35°, centre cut, works standard.
Tolerance d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
123780.0100 1 2 3 38 123780.0400 2.5 5 3 38
123780.0200 1.5 3 3 38 123780.0500 3 6 6 50
123780.0300 2 4 3 38
1 23820 Solid carbide high-speed end mill DIXI
VHM λ: 35º Z
2

K N S
Ti

7572, Type N-HSC, without flat, angle of twist 35°, centre cut, with chamfer on face 0.15-0.2 x
45°, works standard, long.
Application
Milling aluminium, brass, cast iron, titanium, graphite, carbon fibre, plastics.
Tolerances: d1: e8 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
123820.0100 3 14 3 50 123820.0600 8 25 8 75
123820.0200 4 16 4 50 123820.0700 9 27 9 90
123820.0300 5 18 5 60 123820.0800 10 30 10 90
123820.0400 6 20 6 75 123820.0900 12 36 12 100
123820.0500 7 22 7 75 123820.1000 14 42 14 100

1 23840 Solid carbide high-speed end mill DIXI
VHM λ: 35º Z
2

P K N S
≤ 600 Ti

7582, Type N-HSC, without flat, angle of twist 35°, centre cut, with chamfer on face 0.1-0.2 x 45°,
works standard.
Tolerances from 3 mm: d1: e8 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
123840.0100 1 2 3 38 123840.0600 3.8 8 6 50
123840.0200 1.5 3 3 38 123840.0700 4 8 6 50
123840.0300 2 4 4 50 123840.0800 4.5 10 6 50
123840.0400 2.5 5 4 50 123840.0900 5 10 6 50
123840.0500 3 6 6 50 123840.1000 5.5 10 6 50
1 23860 Solid carbide high-speed end mill DIXI
VHM XIDUR λ: 30º Z
2

P K S H
≥ 850 Ni
≤ 1400
7532, Type HSC-DUR, XIDUR, without flat, centre cut, works standard.
Tolerances: d1: e8 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
123860.0100 3 2.4 6 57 123860.0400 6 4.8 6 66
123860.0200 4 3.2 6 66 123860.0500 8 6.4 8 75
123860.0300 5 4 6 66 123860.0600 10 8 10 90
