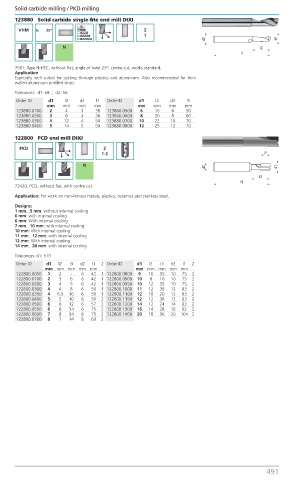

1 23880 Solid carbide single-fute end mill DIXI

VHM λ: 25º Z
1
N

7561, Type N-HSC, without flat, angle of twist 25°, centre cut, works standard.
Application
Especially well suited for cutting through plastics and aluminium. Also recommended for thin-
walled aluminium profiled strips.
Tolerances: d1: e8 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
123880.0100 2 4 3 38 123880.0500 6 16 6 50
123880.0200 3 6 3 38 123880.0600 8 20 8 60
123880.0300 4 12 4 50 123880.0700 10 22 10 70
123880.0400 5 14 5 50 123880.0800 12 25 12 70
1 22800 PCD end mill DIXI
PKD Z
1-2

N

72420, PCD, without flat, with centre cut.
Application: For work on non-ferrous metals, plastics, ceramics and stainless steel.
Designs:
1 mm...5 mm: without internal cooling
6 mm: with internal cooling
6 mm: With internal cooling
7 mm...10 mm: with internal cooling
10 mm: With internal cooling
11 mm...12 mm: with internal cooling
12 mm: With internal cooling
14 mm...20 mm: with internal cooling
Tolerances: d1: h10
Order ID d1 l2 l3 d2 l1 Z Order ID d1 l2 l3 d2 l1 Z
mm mm mm mm mm mm mm mm mm mm
122800.0050 1 2 - 6 42 1 122800.0800 9 10 35 10 75 2
122800.0100 2 3 6 6 42 1 122800.0900 10 8 16 10 75 2
122800.0200 3 4 6 6 42 1 122800.0950 10 12 35 10 75 2
122800.0300 4 4 8 6 50 1 122800.1000 11 12 38 12 83 2
122800.0350 4 6.5 10 6 50 1 122800.1100 12 10 20 12 83 2
122800.0400 5 5 10 6 50 2 122800.1150 12 12 38 12 83 2
122800.0500 6 6 12 6 57 2 122800.1200 14 12 24 14 83 2
122800.0550 6 8 34 6 75 2 122800.1300 16 14 28 16 92 2
122800.0600 7 8 34 8 75 2 122800.1400 20 18 36 20 104 2
122800.0700 8 7 14 8 63 2
