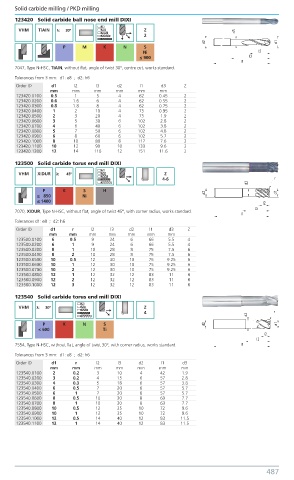

Page 496 - Benma | Blue book 5.0

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 23420 Solid carbide ball nose end mill DIXI

VHM TiAIN λ: 30º Z
2
P M K N S
Ni
≤ 900
7047, Type N-HSC, TiAlN, without flat, angle of twist 30°, centre cut, works standard.
Tolerances from 3 mm: d1: e8 ; d2: h6
Order ID d1 l2 l3 d2 l1 d3 Z
mm mm mm mm mm mm
123420.0100 0.5 1 5 4 62 0.45 2
123420.0200 0.6 1.6 6 4 62 0.55 2
123420.0300 0.8 1.8 8 4 62 0.75 2
123420.0400 1 2 10 4 75 0.95 2
123420.0500 2 3 20 4 75 1.9 2
123420.0600 3 5 30 6 102 2.8 2
123420.0700 4 6 40 6 102 3.8 2
123420.0800 5 7 50 6 102 4.8 2
123420.0900 6 8 60 6 102 5.7 2
123420.1000 8 10 80 8 117 7.6 2
123420.1100 10 12 90 10 133 9.6 2
123420.1200 12 14 110 12 151 11.6 2
1 23500 Solid carbide torus end mill DIXI
VHM XIDUR λ: 45º Z
4-6

P K S H
≥ 850 Ni
≤ 1400
7070, XIDUR, Type N-HSC, without flat, angle of twist 45°, with corner radius, works standard.
Tolerances d1: e8 ; d2: h6
Order ID d1 r l2 l3 d2 l1 d3 Z
mm mm mm mm mm mm mm
123500.0100 6 0.5 9 24 6 66 5.5 4
123500.0200 6 1 9 24 6 66 5.5 4
123500.0300 8 1 10 28 8 75 7.5 6
123500.0400 8 2 10 28 8 75 7.5 6
123500.0500 10 0.5 12 30 10 75 9.25 6
123500.0600 10 1 12 30 10 75 9.25 6
123500.0700 10 2 12 30 10 75 9.25 6
123500.0800 12 1 12 32 12 83 11 6
123500.0900 12 2 12 32 12 83 11 6
123500.1000 12 3 12 32 12 83 11 6
1 23540 Solid carbide torus end mill DIXI
VHM λ: 30º Z
4
P K N S
≤ 600 Ti

7554, Type N-HSC, without flat, angle of twist 30°, with corner radius, works standard.
Tolerances from 3 mm: d1: e8 ; d2: h6
Order ID d1 r l2 l3 d2 l1 d3
mm mm mm mm mm mm mm
123540.0100 2 0.2 3 10 4 42 1.9
123540.0200 3 0.2 4 15 6 57 2.8
123540.0300 4 0.3 5 18 6 57 3.8
123540.0400 6 0.5 7 20 6 57 5.7
123540.0500 6 1 7 20 6 57 5.7
123540.0600 8 0.5 10 30 8 63 7.7
123540.0700 8 1 10 30 8 63 7.7
123540.0800 10 0.5 12 35 10 72 9.6
123540.0900 10 1 12 35 10 72 9.6
123540.1000 12 0.5 14 40 12 83 11.5
123540.1100 12 1 14 40 12 83 11.5

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 487
