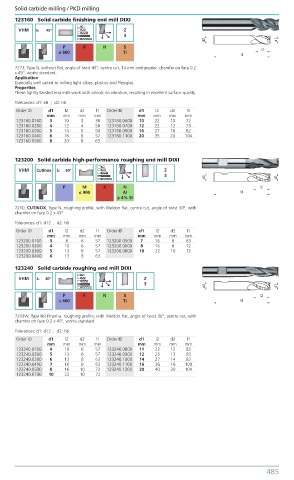

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
123160 Solid carbide finishing end mill DIXI

VHM λ: 45º Z
3
P K N S
≤ 600 Ti

7273, Type N, without flat, angle of twist 45°, centre cut, 14 mm and greater: chamfer on face 0.2
x 45°, works standard.
Application
Especially well suited to milling light alloys, plastics and Plexiglas.
Properties
These tightly twisted end mills work with almost no vibration, resulting in excellent surface quality.
Tolerances: d1: e8 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
123160.0100 3 10 3 38 123160.0600 10 22 10 72
123160.0200 4 12 4 50 123160.0700 12 22 12 73
123160.0300 5 14 5 50 123160.0900 16 27 16 82
123160.0400 6 16 6 57 123160.1100 20 35 20 104
123160.0500 8 20 8 63

123200 Solid carbide high-performance roughing end mill DIXI
VHM Cutinox λ: 30º Z
3
P M K N
≤ 900 AI
≥ 4% Si
7210, CUTINOX, Type N, roughing profile, with Weldon flat, centre cut, angle of twist 30°, with
chamfer on face 0.2 x 45°.
Tolerances: d1: d12 , d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
123200.0100 3 8 6 57 123200.0500 7 16 8 63
123200.0200 4 10 6 57 123200.0600 8 16 8 72
123200.0300 5 13 6 57 123200.0800 10 22 10 72
123200.0400 6 13 8 63
123240 Solid carbide roughing end mill DIXI
VHM λ: 30º Z
3

P K N S
≤ 600 Ti

7213W, Type NR Piranha, roughing profile, with Weldon flat, angle of twist 30°, centre cut, with
chamfer on face 0.2 x 45°, works standard.
Tolerances: d1: d12 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
123240.0100 4 10 6 57 123240.0800 11 22 12 83
123240.0200 5 13 6 57 123240.0900 12 25 12 83
123240.0300 6 13 8 63 123240.1000 14 27 14 83
123240.0400 7 16 8 63 123240.1100 16 36 16 100
123240.0500 8 16 10 72 123240.1200 20 40 20 104
123240.0700 10 22 10 72

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 485
