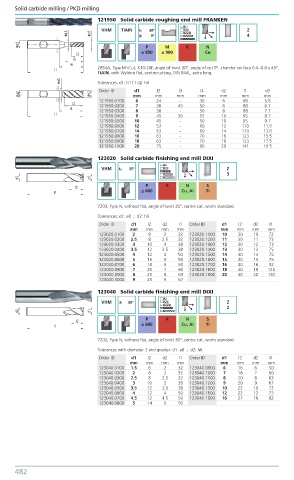

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
121950 Solid carbide roughing end mill FRANKEN
VHM TiAIN λ: 30º Z
γ: 9º 4
P M K N
≤ 850 ≤ 900 Cu
2854A, Type NF-Cut, K10-20F, angle of twist 30°, angle of cut 9°, chamfer on face 0.4.-0.8 x 45°,
TiAlN, with Weldon flat, centre-cutting, DIN 844L, extra long.
Tolerances: d1: h11 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3
mm mm mm mm mm mm mm
121950.0100 6 24 - 30 6 68 5.8
121950.0200 7 38 45 50 8 88 6.7
121950.0300 8 38 - 50 8 88 7.7
121950.0400 9 45 50 55 10 95 8.7
121950.0500 10 45 - 50 10 95 9.7
121950.0600 12 53 - 60 12 110 11.6
121950.0700 14 53 - 60 14 110 13.6
121950.0800 16 63 - 70 16 123 15.5
121950.0900 18 63 - 70 18 123 17.5
121950.1000 20 75 - 90 20 141 19.5
123020 Solid carbide finishing end mill DIXI
VHM λ: 35º Z
3
P K N S
≤ 600 Cu, AI Ti
7203, Type N, without flat, angle of twist 30°, centre cut, works standard.
Tolerances: d1: e8 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
123020.0100 2 8 2 32 123020.1100 10 30 10 72
123020.0200 2.5 8 2.5 32 123020.1200 11 30 11 73
123020.0300 3 10 3 38 123020.1300 12 30 12 73
123020.0400 3.5 12 3.5 38 123020.1400 13 30 13 75
123020.0500 4 12 4 50 123020.1500 14 30 14 75
123020.0600 5 15 5 50 123020.1600 15 30 15 75
123020.0700 6 18 6 50 123020.1700 16 30 16 92
123020.0800 7 20 7 60 123020.1800 18 40 18 125
123020.0900 8 25 8 63 123020.1900 20 40 20 130
123020.1000 9 25 9 67
123040 Solid carbide finishing end mill DIXI
VHM λ: 30º Z
2
P K N S
≤ 600 Cu, AI Ti
7202, Type N, without flat, angle of twist 30°, centre cut, works standard.
Tolerances with diameter 2 and greater: d1: e8 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
123040.0100 1.5 6 2 32 123040.0900 6 16 6 50
123040.0200 2 8 2 32 123040.1000 7 18 7 60
123040.0300 2.5 8 2.5 32 123040.1100 8 20 8 63
123040.0400 3 10 3 38 123040.1200 9 20 9 67
123040.0500 3.5 12 3.5 38 123040.1300 10 22 10 72
123040.0600 4 12 4 50 123040.1500 12 22 12 73
123040.0700 4.5 12 4.5 50 123040.1900 16 27 16 82
123040.0800 5 14 5 50
