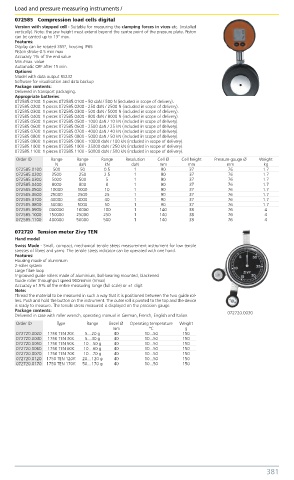

Load and pressure measuring instruments / Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
072585 Compression load cells digital
Version with stepped cell - Suitable for measuring the clamping forces in vices etc. (installed
vertically). Note: the jaw height must extend beyond the centre point of the pressure plate. Piston
can be canted up to 13° max.
Features:
Display can be rotated 355°, housing IP65
Piston stroke 0.5 mm max
Accuracy 1% of the end value
Min./max. value
Automatic OFF after 15 min.
Options:
Model with data output RS232
Software for visualisation and data backup
Package contents:
Delivered in transport packaging.
Appropriate batteries:
072585.0100: 1 pieces 072585.0100 - 50 daN / 500 N (included in scope of delivery).
072585.0200: 1 pieces 072585.0200 - 250 daN / 2500 N (included in scope of delivery).
072585.0300: 1 pieces 072585.0300 - 500 daN / 5000 N (included in scope of delivery).
072585.0400: 1 pieces 072585.0400 - 800 daN / 8000 N (included in scope of delivery).
072585.0500: 1 pieces 072585.0500 - 1000 daN / 10 kN (included in scope of delivery).
072585.0600: 1 pieces 072585.0600 - 2500 daN / 25 kN (included in scope of delivery).
072585.0700: 1 pieces 072585.0700 - 4000 daN / 40 kN (included in scope of delivery).
072585.0800: 1 pieces 072585.0800 - 5000 daN / 50 kN (included in scope of delivery).
072585.0900: 1 pieces 072585.0900 - 10000 daN / 100 kN (included in scope of delivery).
072585.1000: 1 pieces 072585.1000 - 25000 daN / 250 kN (included in scope of delivery).
072585.1100: 1 pieces 072585.1100 - 50000 daN / 500 kN (included in scope of delivery).
Order ID Range Range Range Resolution Cell Ø Cell height Pressure gauge Ø Weight
N daN kN daN mm mm mm kg
072585.0100 500 50 0.5 1 90 37 76 1.7
072585.0200 2500 250 2.5 1 90 37 76 1.7
072585.0300 5000 500 5 1 90 37 76 1.7
072585.0400 8000 800 8 1 90 37 76 1.7
072585.0500 10000 1000 10 1 90 37 76 1.7
072585.0600 25000 2500 25 1 90 37 76 1.7
072585.0700 40000 4000 40 1 90 37 76 1.7
072585.0800 50000 5000 50 1 90 37 76 1.7
072585.0900 000000 10000 100 1 140 38 76 4
072585.1000 150000 25000 250 1 140 38 76 4
072585.1100 400000 50000 500 1 140 38 76 4
072720 Tension meter Zivy TEN
Hand model
Swiss Made - Small, compact, mechanical tensile stress measurement instrument for low tensile
stresses of fibres and yarns. The tensile stress indicator can be operated with one hand.
Features:
Housing made of aluminium
2-roller system
Large fibre loop
V-grooved guide rollers made of aluminium, ball-bearing mounted, blackened
Guide roller throughput speed 900m/min (Vmax)
Accuracy ±1.5% of the entire measuring range (full scale) or ±1 digit
Note:
Thread the material to be measured in such a way that it is positioned between the two guide rol-
lers. Push and hold the button on the instrument. The outer roll is pivoted to the top and the device
is ready to measure. The tensile stress measured is displayed on the precision gauge.
Package contents: 072720.0030
Delivered in case with roller wrench, operating manual in German, French, English and Italian.
Order ID Type Range Bezel Ø Operating temperature Weight
mm °C g
072720.0020 1750 TEN 20K 5…20 g 40 10...50 150
072720.0030 1750 TEN 30K 5…30 g 40 10...50 150
072720.0050 1750 TEN 50K 10…50 g 40 10...50 150
072720.0060 1750 TEN 60K 10…60 g 40 10...50 150
072720.0070 1750 TEN 70K 10…70 g 40 10...50 150
072720.0120 1750 TEN 120K 20…120 g 40 10...50 150
072720.0170 1750 TEN 170K 50…170 g 40 10...50 150

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 381
