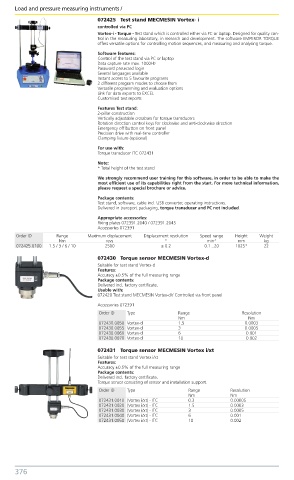

072425 Test stand MECMESIN Vortex- i
controlled via PC
Vortex-i - Torque - Test stand which is controlled either via PC or laptop. Designed for quality con-
trol in the measuring laboratory, in research and development. The software EMPEROR TORQUE
offers versatile options for controlling motion sequences, and measuring and analysing torque.
Software features:
Control of the test stand via PC or laptop
Data capture rate max. 1000Hz
Password protected login
Several languages available
Instant access to 5 favourite programs
2 different program modes to choose from
Versatile programming and evaluation options
Link for data exports to EXCEL
Customised test reports
Features Test stand:
2-pillar construction
Vertically adjustable crossbars for torque transducers
Rotation direction control keys for clockwise and anti-clockwise direction
Emergency off button on front panel
Precision drive with real-time controller
Clamping fixture (optional)
For use with:
Torque transducer ITC 072431
Note:
* Total height of the test stand
We strongly recommend user training for this software, in order to be able to make the
most efficient use of its capabilities right from the start. For more technical information,
please request a special brochure or advice.
Package contents:
Test stand, software, cable incl. USB converter, operating instructions.
Delivered in transport packaging, torque transducer and PC not included.
Appropriate accessories:
Fixing plates 072391.2040 / 072391.2045
Accessories 072391
Order ID Range Maximum displacement Displacement resolution Speed range Height Weight
Nm revs ° min -1 mm kg
072425.0100 1.5 / 3 / 6 / 10 2500 ± 0.2 0.1...20 1025* 22
072430 Torque sensor MECMESIN Vortex-d
Suitable for test stand Vortex-d
Features:
Accuracy ±0.5% of the full measuring range
Package contents:
Delivered incl. factory certificate.
Usable with:
072420 Test stand MECMESIN Vortex-dV Controlled via front panel
Accessories 072391
Order ID Type Range Resolution
Nm Nm
072430.0050 Vortex-d 1.5 0.0003
072430.0055 Vortex-d 3 0.0005
072430.0060 Vortex-d 6 0.001
072430.0070 Vortex-d 10 0.002

072431 Torque sensor MECMESIN Vortex i/xt
Suitable for test stand Vortex i/xt
Features:
Accuracy ±0.5% of the full measuring range
Package contents:
Delivered incl. factory certificate.
Torque sensor consisting of sensor and installation support.
Order ID Type Range Resolution
Nm Nm
072431.0010 (Vortex i/xt) - ITC 0.3 0.00005
072431.0020 (Vortex i/xt) - ITC 1.5 0.0003
072431.0030 (Vortex i/xt) - ITC 3 0.0005
072431.0040 (Vortex i/xt) - ITC 6 0.001
072431.0050 (Vortex i/xt) - ITC 10 0.002
